Fronius Primo 8.2-1 User Manual

10
Data communication and Fronius Solar Net
Fronius Solar Net
and data interface

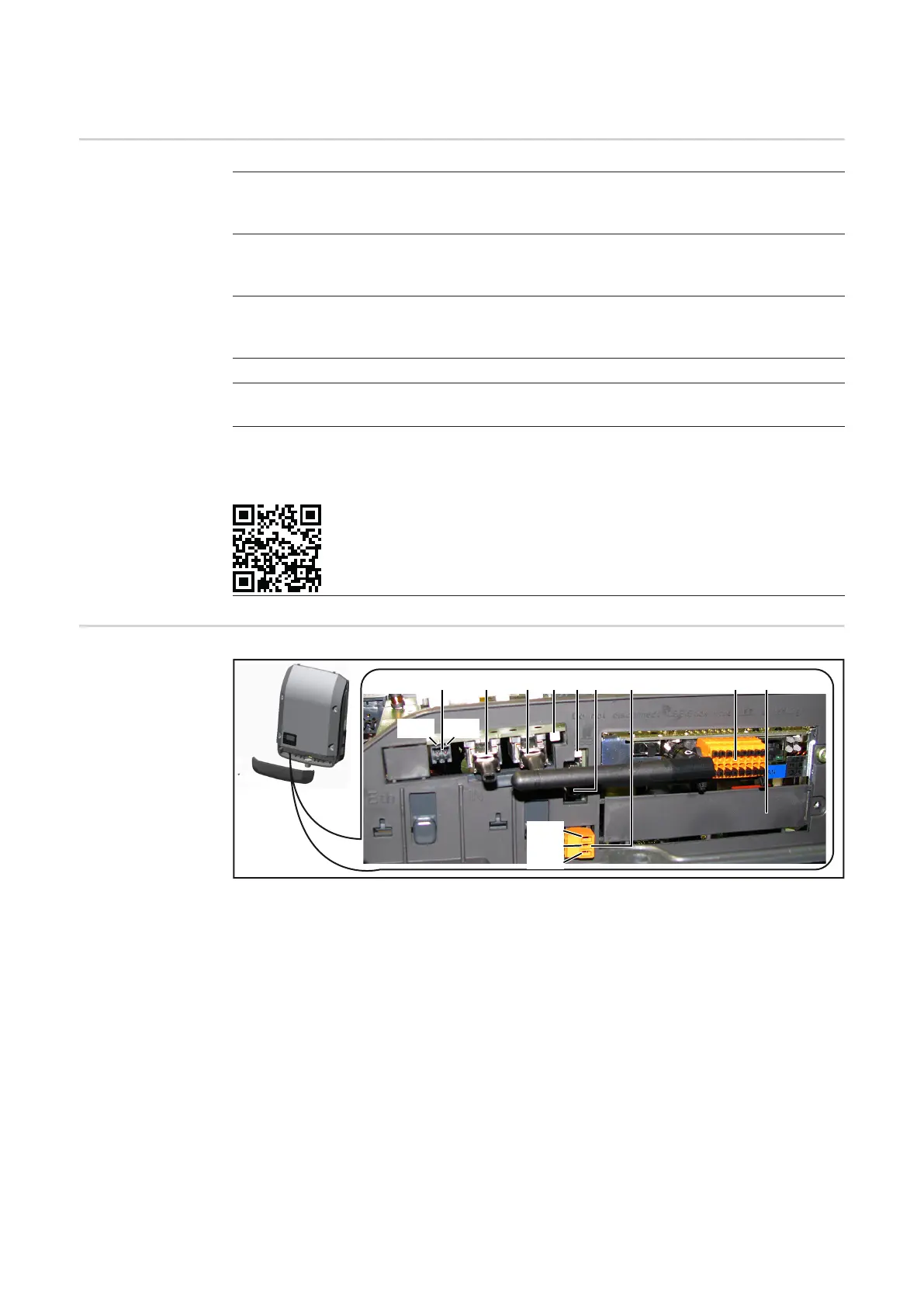

Data communica-
tion area
Depending on the model, the inverter may be equipped with the Fronius Datamanager
plug-in card (8).
Fronius Solar Net was developed to make system add-ons flexible to use in a variety of
different applications. Fronius Solar Net is a data network that enables multiple inverters
to be linked up using system add-ons.
It is a bus system that uses a ring topology. One suitable cable is sufficient for communi-
cation between one or several inverters that are connected on the Fronius Solar Net us-
ing a system add-on.
Similarly, every inverter on the Fronius Solar Net must be assigned a unique number.
Refer to the section entitled "The SETUP menu item" for instructions on how to assign a
unique number.
Fronius Solar Net automatically recognises a wide variety of system add-ons.
In order to distinguish between several identical system add-ons, each one must be as-
signed a unique number.
More detailed information on the individual system add-ons can be found in the relevant
operating instructions or on the internet at http://www.fronius.com
More detailed information on cabling Fronius DATCOM components can be found at:
→ http://www.fronius.com/QR-link/4204101938
(1) (2) (3) (4)
(5)
(6) (7) (8) (9)
IN
IN
OUT
OUT
PIN 2
PIN 1
PIN 1
PIN 2
PIN 3

Fronius Primo 8.2-1 Specifications

General

AC Nominal Output Power	8200 W
Frequency	50 / 60 Hz
Dimensions (Height x Width x Depth)	645 x 431 x 204 mm
Protection Class	IP65
Max. Apparent AC Power	8.2 kVA
THD	< 3%
DC Input Voltage Range	200 - 800 V
Number of MPP Trackers	2
DC Connection	MC4
Nominal AC Voltage	230 V
AC Connection	Screw terminal
Operating Temperature Range	-25°C - +60°C
