Exiting an entry
If no key is pressed for 2 minutes:
- The inverter switches from wherever it is on the menu level back to the "NOW" display
mode (exception: "Standby" Setup menu entry),
- The display backlighting goes out.
- The amount of energy currently being fed in is displayed.
Setting menu en-
tries, general
Open the desired menu
Use the 'Up' or 'Down' keys to select the desired menu item
Press "Enter"

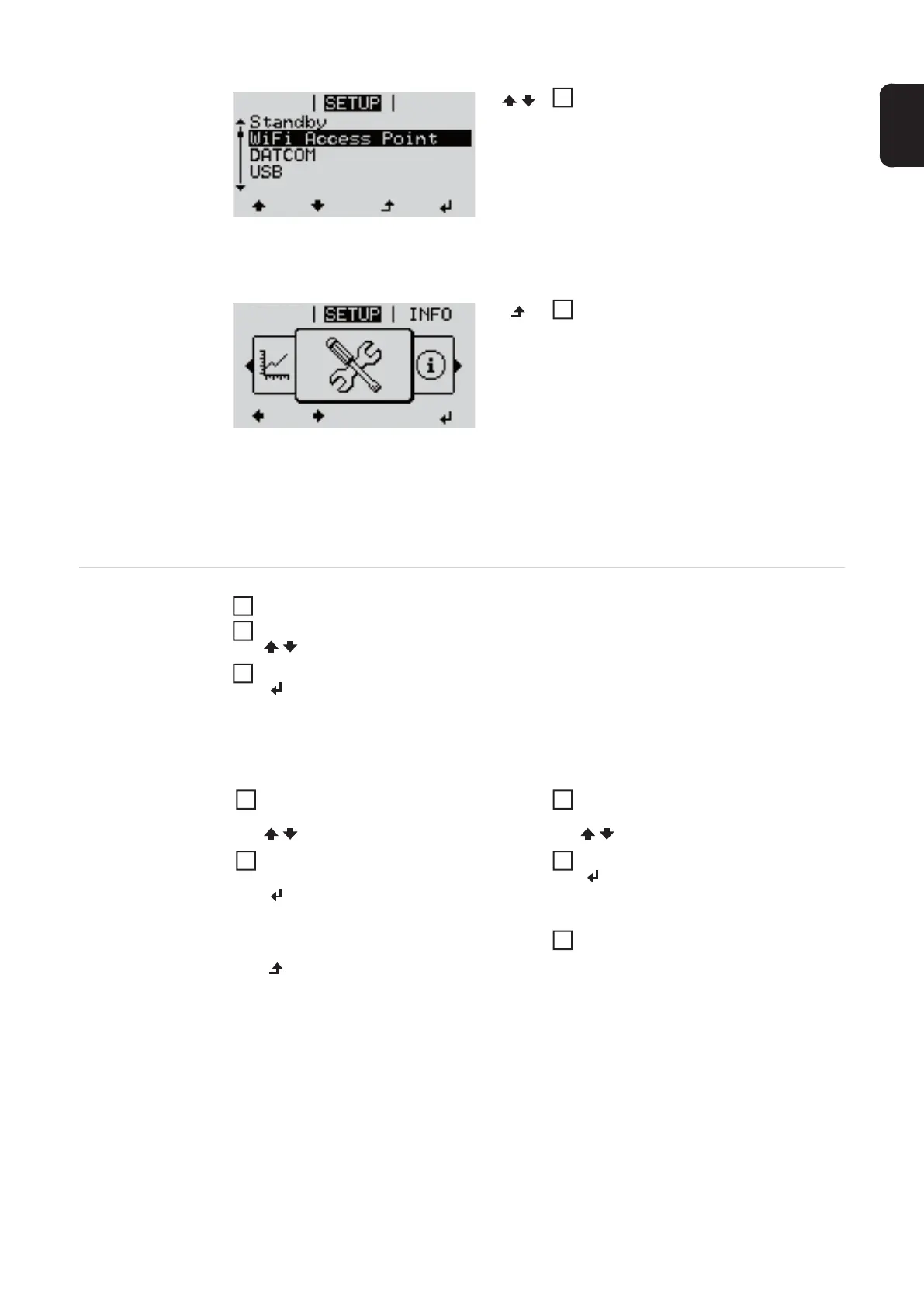

Example: "WiFi Access Point" menu item
Use the "Up" and "Down" keys to
move between the available entries
To exit a menu entry, press the
"Back" key
The menu level appears
Relay
3
GRAPH
4
The available settings are displayed: The first digit of a value to be set flash-
es:
Use the 'Up' or 'Down' buttons to se-
lect the desired setting
Press the 'Enter' key to save and ap-
ply the setting.
To discard the setting, press the 'Esc'
key.
Use the 'Up' or 'Down' keys to select
a value for the first digit
Press "Enter"
The second digit of the value flashes.
Repeat steps 4 and 5 until ...
the whole value to be set flashes.
1
2
3
4
5
4
5
6

Fronius Primo 8.2-1 Specifications

General

AC Nominal Output Power	8200 W
Frequency	50 / 60 Hz
Dimensions (Height x Width x Depth)	645 x 431 x 204 mm
Protection Class	IP65
Max. Apparent AC Power	8.2 kVA
THD	< 3%
DC Input Voltage Range	200 - 800 V
Number of MPP Trackers	2
DC Connection	MC4
Nominal AC Voltage	230 V
AC Connection	Screw terminal
Operating Temperature Range	-25°C - +60°C
