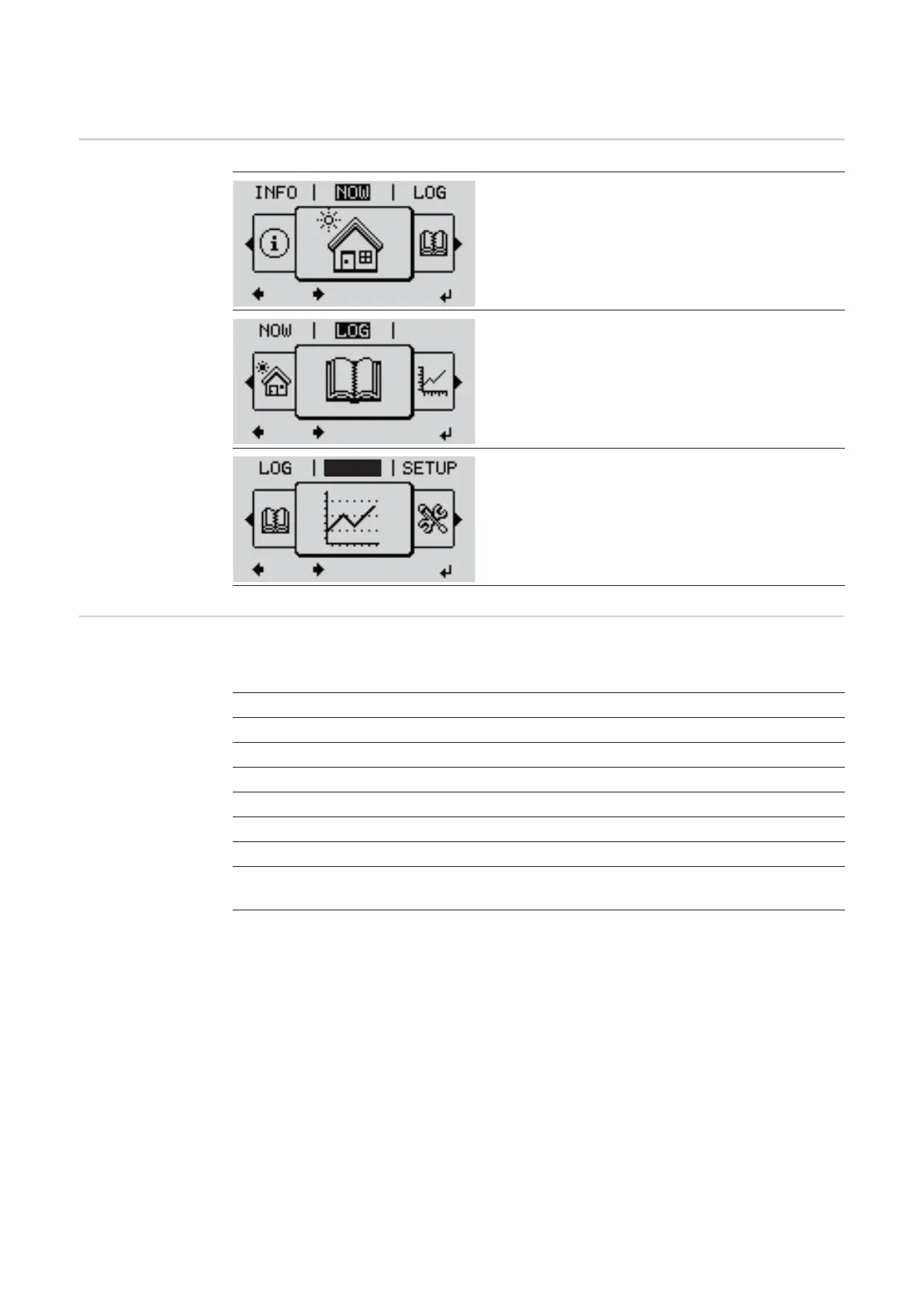

The NOW, LOG and GRAPH menu items
NOW
LOG
GRAPH
Values displayed
in the NOW and
LOG menu items
NOW
(Displays real-time values)
LOG
(Data recorded today, during the current
calendar year and since the inverter was
first commissioned)
GRAPH
Day characteristic
displays a plot showing the power output
during the day. The time axis is scaled au-
tomatically.
Press the 'Back' key to remove the display
GRAPH
GRAPH
Values displayed in the NOW menu item:
AC Output power (W)
AC Reactive power (V Ar)
AC Voltage (V)
AC Output current (A)
AC Frequency (Hz)
PV Array Voltage (V)
PV Array Current (A)
Time / date
Time and date on the inverter or in the Fronius Solar Net ring
