Fronius Primo GEN24 6.0 Plus - Commissioning the Inverter

To Next Page

To Previous Page

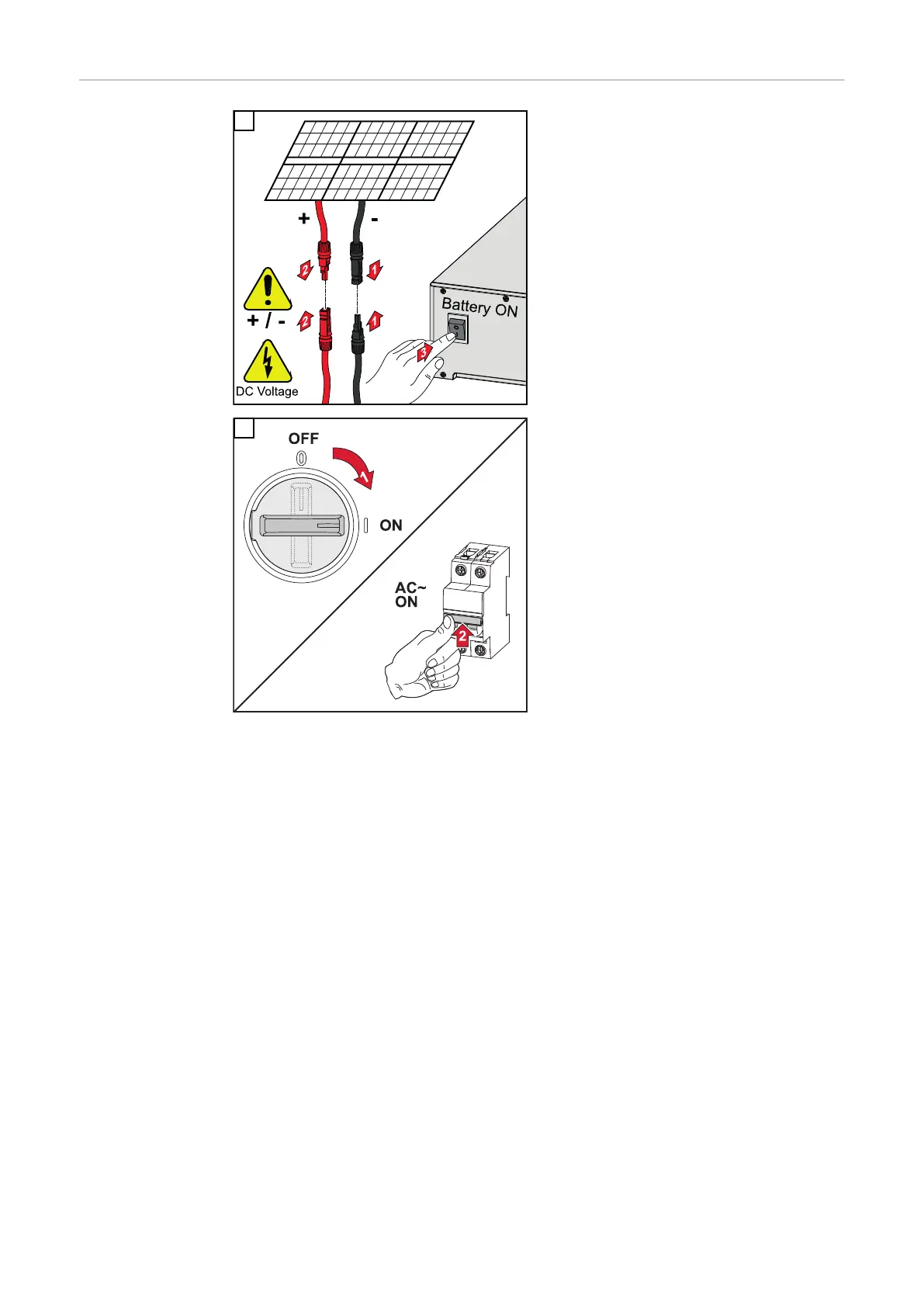

Commissioning

the inverter

Connect the solar module strings (+/-).

Switch on the battery connected to

the inverter.

Set the DC disconnector to the "On"

switch position. Switch on the auto-

matic circuit breaker.

160
