Quick guide PV Point & PV Point Comfort 1015

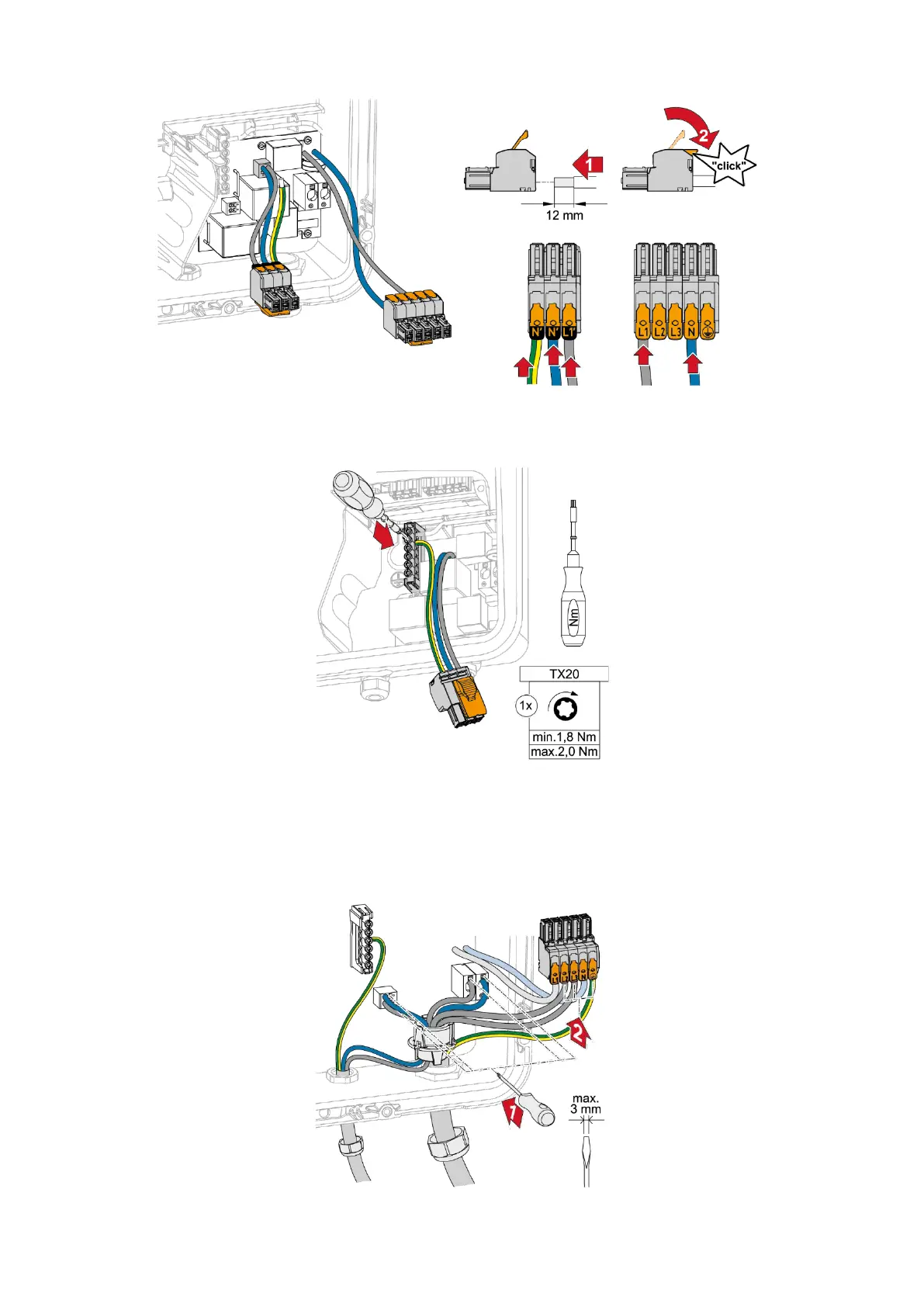

6. The PEN connection is supplied and must be connected according to the instructions in chapter
2.2 with the earthing terminal block.
7. For three-phase inverters, L2 and L3 are wired directly past the PV Point Print, while L1 and N
are looped via the Print, as this must also provide power in parallel grid operation. As a nal
step, connect L1 and N coming from the grid directly to the terminal of the Comfort Print.
