P1
PASS
2633
PrG
1

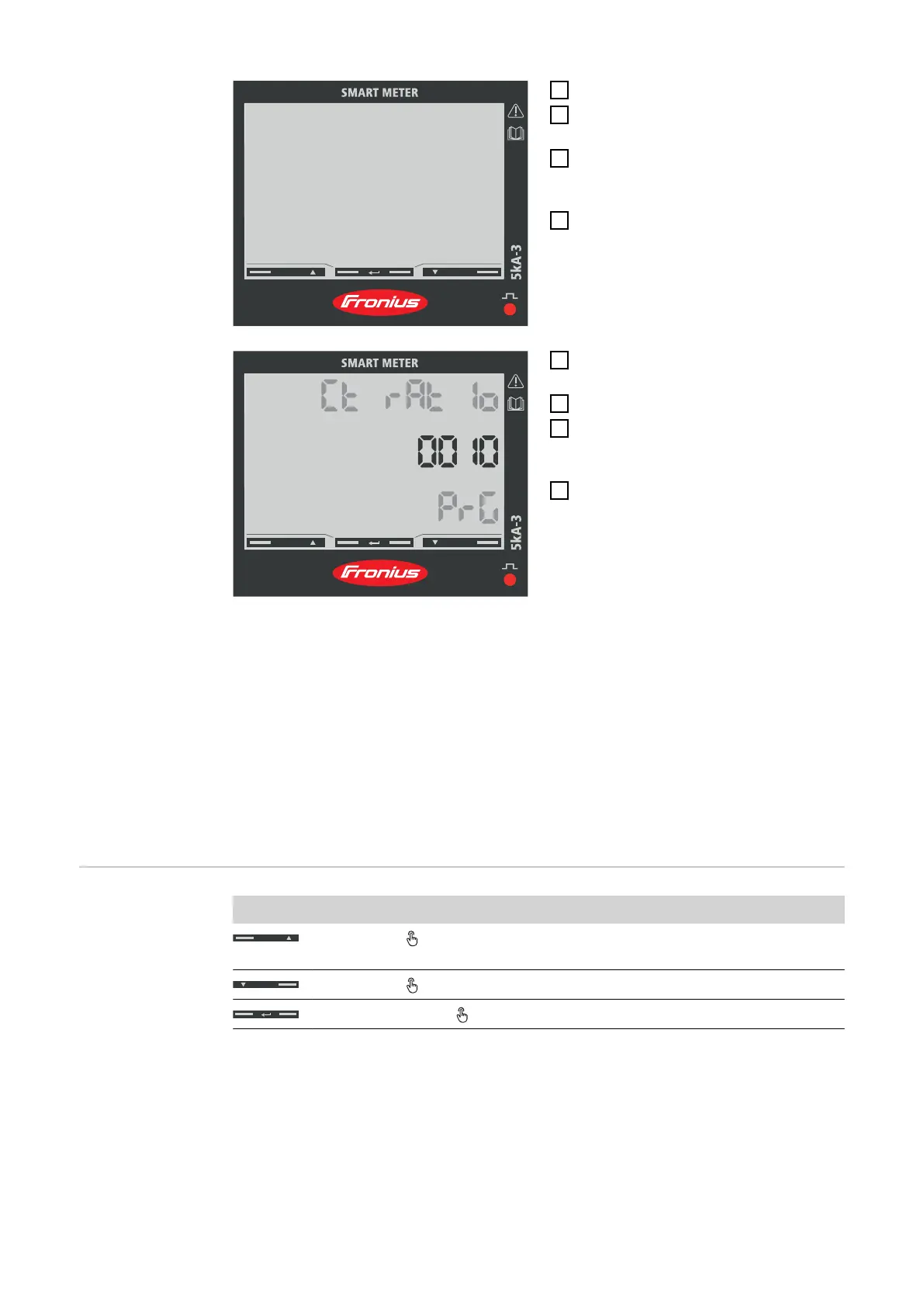

Press and hold "Enter" for 2 seconds.
2
Use "Up" or "Down" to access the P1
screen.
3
Set password "2633" with "Up" and
"Down" and confirm each individual
value with "Enter".
4
Note down the password.
IMPORTANT!
The password cannot be reset.
P4
1
Use "Up" or "Down" to access the P4
screen.
2
Press and hold "Enter" for 2 seconds.
3
Set the address with "Up" and "Down"
and confirm each individual value with
"Enter".
4
Press "Up" to access screen P18 and
press and hold "Enter" for 2 seconds
to exit the settings.
Ratio of current transformers
1)
(0001 - 1000
2)
).
Ratio of voltage transformers
1), 3)
(001.0 - 1000
2)
).
1)
Important! Changing the transformation ratios will reset the counters in the Fronius
Smart Meter TS to 0.
2)
Transformation ratio in the current transformer x Transformation ratio of the voltage
transformers = max. 1000
3)
Changeover only when using voltage transformers (direct voltage measurement VT =
1)
Setting the
address on the
Fronius Smart
Meter TS
Symbol Name Event Function
Up 1 x Scroll one screen forward, increase the value by
1
Down 1 x Scroll one screen back, decrease the value by 1
Enter 2 seconds Call up settings, confirm value
28
