Fronius Symo 15.0-3-M Installation Instructions

PV cable connection torque DC Con
Kit 35: 3 Nm
Single MPP
tracker - Fronius
Eco inverter
Single MPP tracker mode on the MPP tracker input

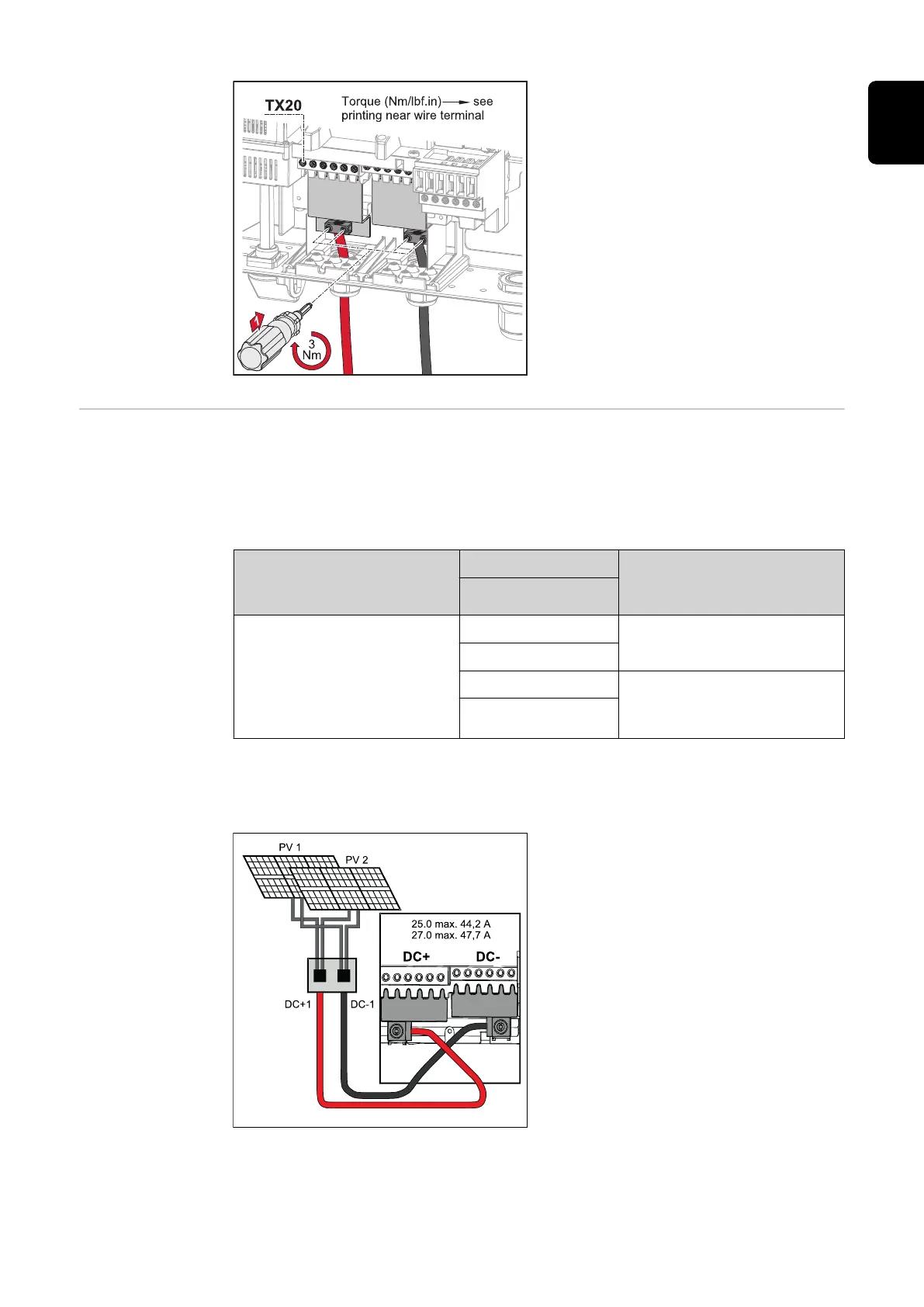

If the solar module strings are connected to a string combiner box (GAK for
short - generator connection box) and the distance to the inverter is bridged by
means of a DC string, this DC string can be connected to the inverter as follows.
Power categories MPP tracker Input current
DC input
Eco
20-27 kVA
MPP1 I
max
per terminal 15 A
DC+1
MPP1 I
max
per terminal 15 A
DC+2
DC Con Kit 25
The Fronius DC Con Kit 25 (4,251,015) can be used to connect a solar module
string with a cross-section of up to 25 mm² to the inverter.
Connecting multiple interconnected solar mod-
ule fields to an inverter with multiple MPP track-
ers using one lead
By using the DC Con Kit 25, the DC
strings of the connected DC lines are
equally distributed to both inputs.
25
EN

Fronius Symo 15.0-3-M Specifications

General

Max. efficiency	98.1%
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Weight	34.8 kg
Protection rating	IP 66
Max. output current	21.7 A
AC nominal voltage	400 V
AC voltage range	320 - 480 V
Frequency	50 / 60 Hz
THD	< 3%
Number of MPP trackers	2
AC Frequency Range	50 / 60 Hz
Maximum Efficiency	98.1%
Warranty	5 years
AC nominal output	15000 W
Max. apparent AC power	15 kVA
Maximum AC Power	15000 VA
Maximum DC Power	22500 W
Operating Temperature Range	-25 to +60 °C
Max. input current	30 A
Max. input current (Idc max)	30 A
Cooling	Forced air cooling
