Fronius Symo 15.0-3-M Installation Instructions

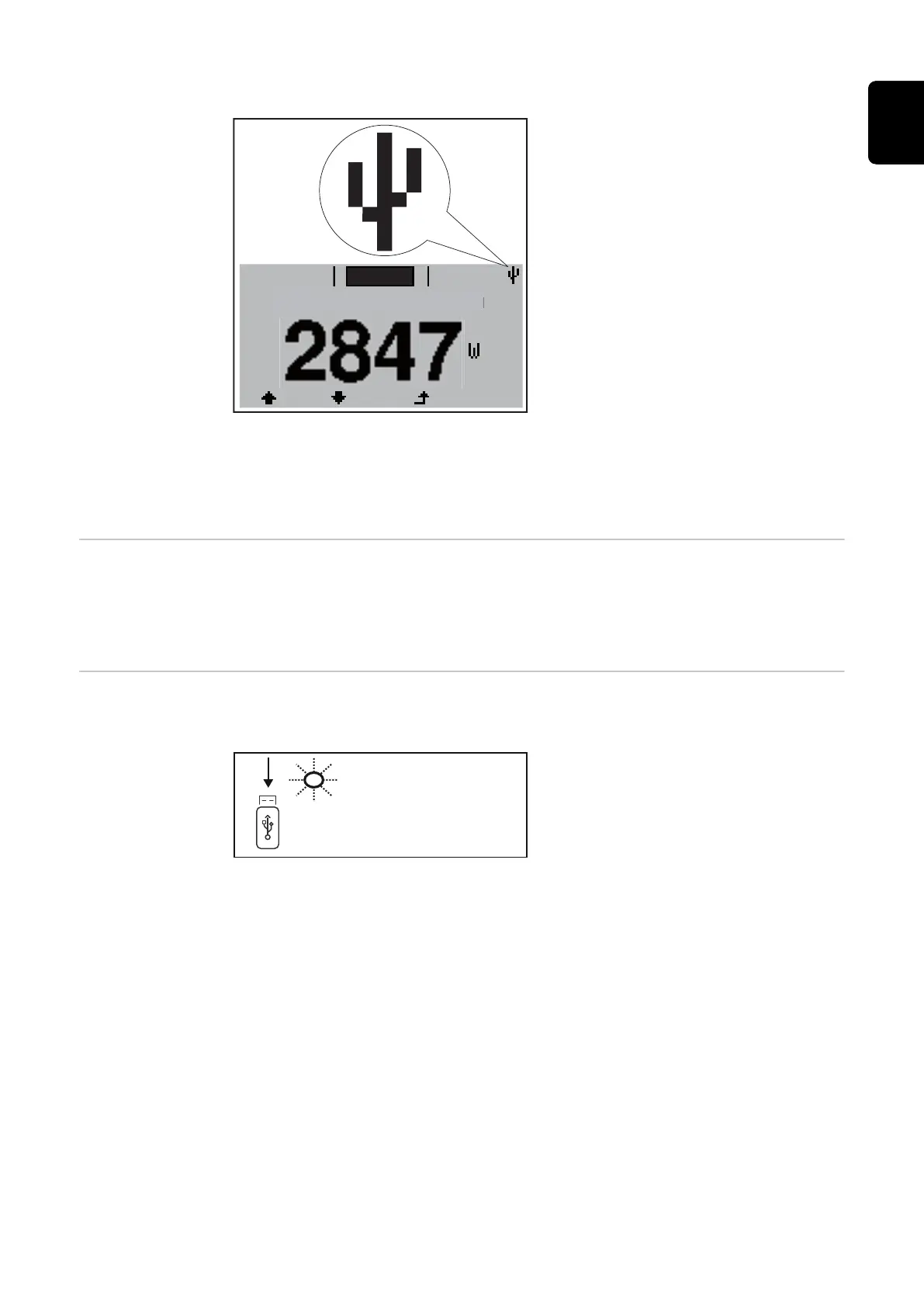

USB symbol on the inverter display, e.g. in display mode "NOW":
AC Output Power
NOW
If the inverter detects a USB flash
drive, the USB symbol will appear in
the top right corner of the display.
When inserting a USB flash drive,
check whether the USB symbol is dis-
played (it may also flash).
IMPORTANT! Please note for outdoor applications that conventional USB flash
drives are often only guaranteed to work within a restricted temperature range.
For outdoor applications ensure that the USB flash drive also functions, for ex-
ample, at low temperatures.
USB stick for up-
dating the in-
verter software
With the help of the USB stick, end customers can also update the inverter soft-
ware via the USB item on the SETUP menu: the update file is first saved to the
USB stick, from where it is then transferred to the inverter. The update file must
be saved in the root directory on the USB stick.
Removing the
USB flash drive
Safety instruction concerning the removal of a USB flash drive:
Do not disconnect
USB-Stick
while LED is flashing!
X
IMPORTANT! To avoid any loss of
data, a USB flash drive may only be
removed if the following conditions
are met:
-
Only remove a USB flash drive
via the 'Safely remove USB /
HW' item on the SETUP menu
-
The 'Data transmission' LED has
stopped flashing or comes on
steady.
47
EN

Fronius Symo 15.0-3-M Specifications

General

Max. efficiency	98.1%
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Weight	34.8 kg
Protection rating	IP 66
Max. output current	21.7 A
AC nominal voltage	400 V
AC voltage range	320 - 480 V
Frequency	50 / 60 Hz
THD	< 3%
Number of MPP trackers	2
AC Frequency Range	50 / 60 Hz
Maximum Efficiency	98.1%
Warranty	5 years
AC nominal output	15000 W
Max. apparent AC power	15 kVA
Maximum AC Power	15000 VA
Maximum DC Power	22500 W
Operating Temperature Range	-25 to +60 °C
Max. input current	30 A
Max. input current (Idc max)	30 A
Cooling	Forced air cooling
