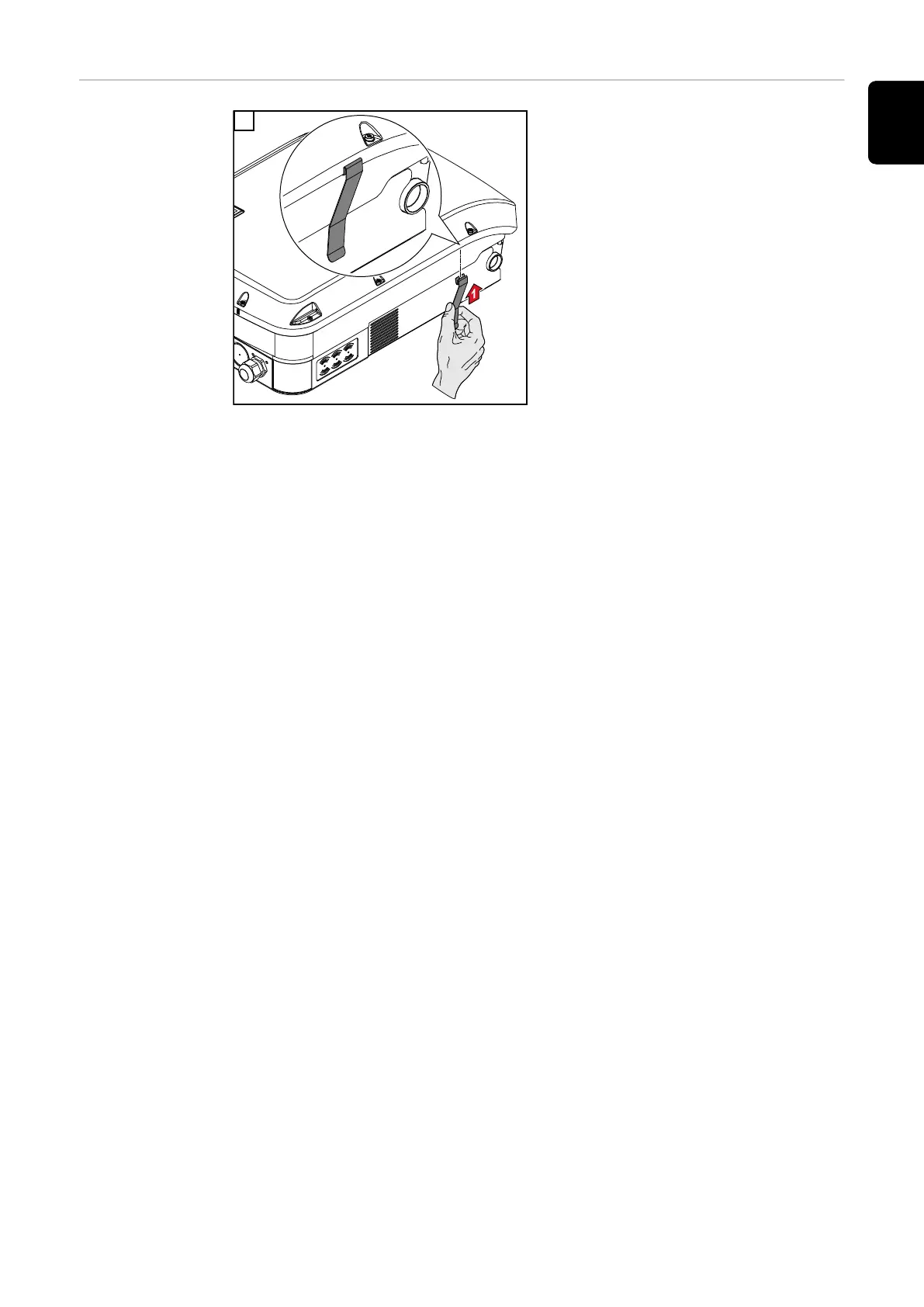

Attaching the
metall bracket
1
With the Fronius Eco, a metal bracket
included in the scope of delivery must
also be fitted to the device. This metal
bracket is required for compliance with
EMC (electromagnetic compatibility)
regulations.
39
EN

Table of Contents

Other manuals for Fronius Symo 15.0-3-M

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fronius Symo 15.0-3-M and is the answer not in the manual?

Fronius Symo 15.0-3-M Specifications

General IconGeneral
Max. efficiency98.1%
Max. input voltage1000 V
MPPT voltage range200 - 800 V
Weight34.8 kg
Protection ratingIP 66
Max. output current21.7 A
AC nominal voltage400 V
AC voltage range320 - 480 V
Frequency50 / 60 Hz
THD< 3%
Number of MPP trackers2
AC Frequency Range50 / 60 Hz
Maximum Efficiency98.1%
Warranty5 years
AC nominal output15000 W
Max. apparent AC power15 kVA
Maximum AC Power15000 VA
Maximum DC Power22500 W
Operating Temperature Range-25 to +60 °C
Max. input current30 A
Max. input current (Idc max)30 A
CoolingForced air cooling
