Fronius Symo 15.0-3-M Installation Instructions

DC SPD option

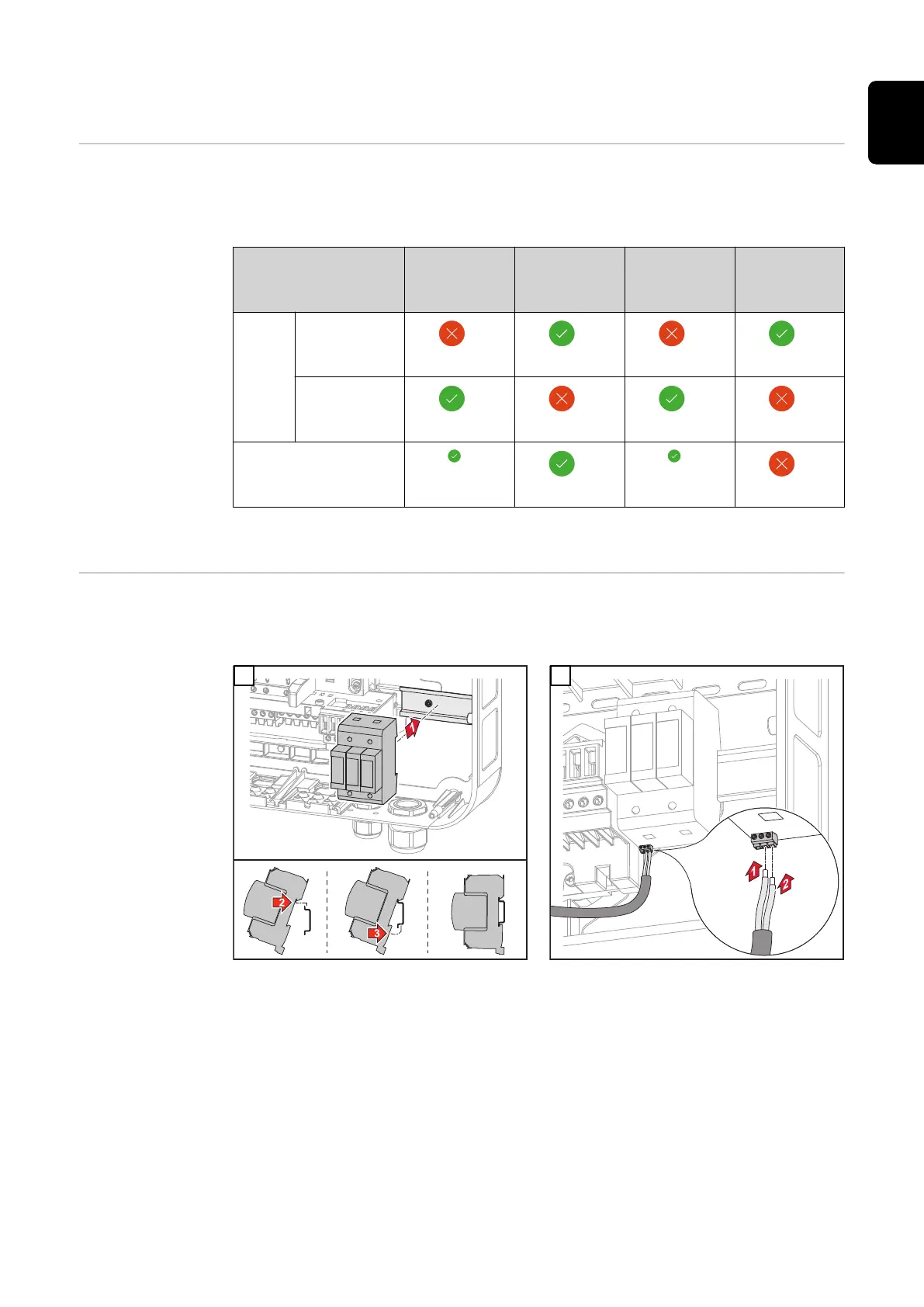

Overview of DC
SPD option
Surge protection (DC SPD option) can be ordered pre-installed or can be retro-
fitted to the inverter later. Depending on the device type and operating mode, a
suitable type must be installed:
TYPE 1+2 -
S
4,251,024
TYPE 1+2 -
M
4,251,025
TYPE 2 - S
4,251,019
TYPE 2 - M
4,251,020
Symo Multi MPP
Tracker
mode
Single MPP
Tracker
mode
ECO
* *
*Note: The PV current is displayed distorted by the hardware topology used.
Retrofitting the
DC SPD‑S option
to the Fronius
Symo
The DC cables can be connected to the DC terminals without ferrules.
To retrofit the DC SPD-S option to the inverter:
1 2
51
EN

Fronius Symo 15.0-3-M Specifications

General

Max. efficiency	98.1%
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Weight	34.8 kg
Protection rating	IP 66
Max. output current	21.7 A
AC nominal voltage	400 V
AC voltage range	320 - 480 V
Frequency	50 / 60 Hz
THD	< 3%
Number of MPP trackers	2
AC Frequency Range	50 / 60 Hz
Maximum Efficiency	98.1%
Warranty	5 years
AC nominal output	15000 W
Max. apparent AC power	15 kVA
Maximum AC Power	15000 VA
Maximum DC Power	22500 W
Operating Temperature Range	-25 to +60 °C
Max. input current	30 A
Max. input current (Idc max)	30 A
Cooling	Forced air cooling
