Fronius Symo 15.0-3-M Installation Instructions

Australian Conduits
Tightly sealing
the conduits

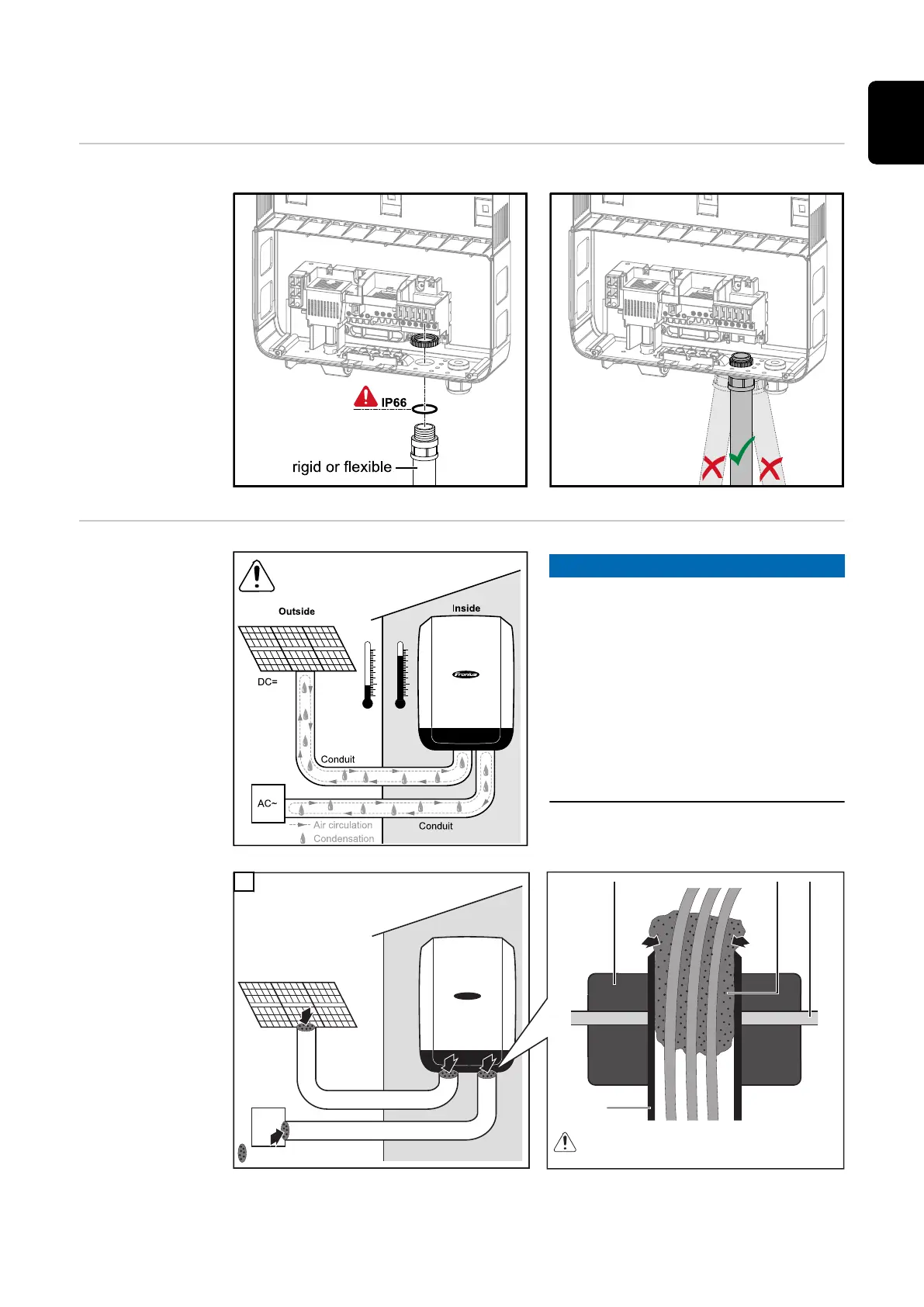

Ensure that the conduits are tightly sealed.
Seal conduits
NOTE!
Condensation within the conduits can
damage the inverter or components of
the photovoltaic systems.
To avoid undesirable air circulation and
condensation in the conduits:
▶
Seal all conduits being used with a
permanently elastic sealant
▶
Seal every incoming and outgoing
conduit
▶
Seal both conduit ends.
Conduit
Conduit
AC~
Inside
Outside
DC=
4
3
2
Permanently elastic sealant
Seal all used conduits!
Seal every incoming and every outgoing conduit!
Seal both conduit ends!
1
Conduit
Inverter housing
Conduit fitting
Permanently elastic sealant
1
1
1
49
EN

Fronius Symo 15.0-3-M Specifications

General

Max. efficiency	98.1%
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Weight	34.8 kg
Protection rating	IP 66
Max. output current	21.7 A
AC nominal voltage	400 V
AC voltage range	320 - 480 V
Frequency	50 / 60 Hz
THD	< 3%
Number of MPP trackers	2
AC Frequency Range	50 / 60 Hz
Maximum Efficiency	98.1%
Warranty	5 years
AC nominal output	15000 W
Max. apparent AC power	15 kVA
Maximum AC Power	15000 VA
Maximum DC Power	22500 W
Operating Temperature Range	-25 to +60 °C
Max. input current	30 A
Max. input current (Idc max)	30 A
Cooling	Forced air cooling
