Fronius Symo 15.0-3-M Installation Instructions

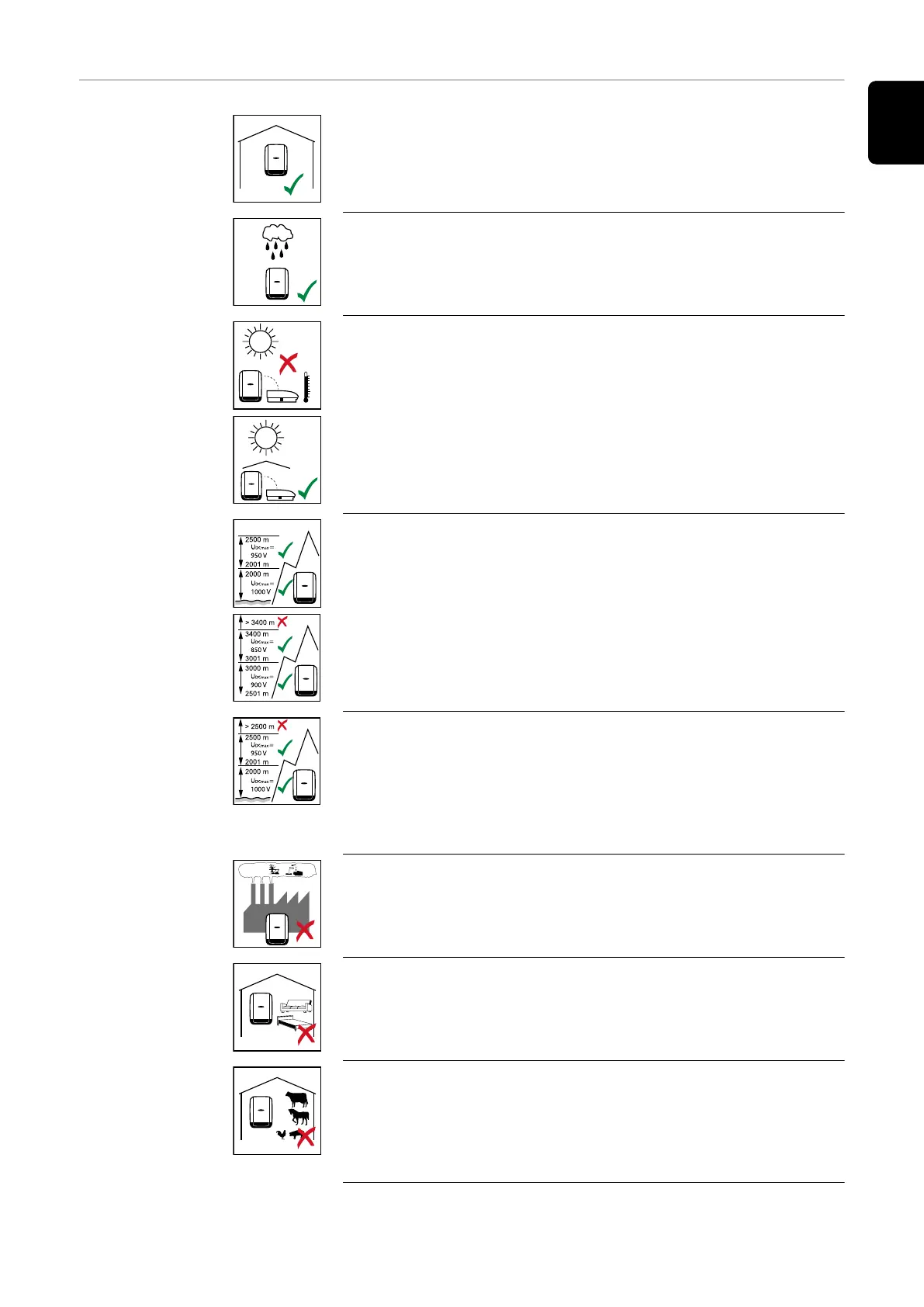

Choice of loca-
tion
The inverter is suitable for indoor installation.
IP 66
The inverter is suitable for outdoor installation.
Because of its IP 66 protection class, the inverter is resistant to
water jets from any direction and can also be used in damp en-
vironments.
In order to minimise the heating up of the inverter, do not ex-
pose it to direct insolation. Install the inverter in a protected
location, e.g. in the vicinity of the solar modules or beneath the
eaves.
Fronius Symo:
U
DCmax
at an altitude of:
0 to 2000 m = 1000 V
2001 to 2500 m = 950 V
2501 to 3000 m = 900 V
3001 to 3400 m = 850 V
IMPORTANT! The inverter must not be installed or used at alti-
tudes above 3400 m.
Fronius Eco:
U
DCmax
at an altitude of:
0 to 2000 m = 1000 V
2001 to 2500 m = 950 V
IMPORTANT! The inverter must not be installed or used at alti-
tudes above 2500 m.
NH
3
Do not install the inverter in:
-
Areas where ammonia, corrosive vapours, acids or salts are
present
(e.g. fertiliser stores, ventilation openings from cattle sheds,
chemical plants, tanneries, etc.)
During certain operating phases the inverter may produce a
slight noise. For this reason it should not be installed in an occu-
pied living area.
Do not install the inverter in:
-
Places where there is an increased risk of damage from farm
animals (horses, cattle, sheep, pigs, etc.)
-
Stables or adjoining areas
-
Storage areas for hay, straw, chaff, animal feed, fertilisers,
etc.
7
EN

Fronius Symo 15.0-3-M Specifications

General

Max. efficiency	98.1%
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Weight	34.8 kg
Protection rating	IP 66
Max. output current	21.7 A
AC nominal voltage	400 V
AC voltage range	320 - 480 V
Frequency	50 / 60 Hz
THD	< 3%
Number of MPP trackers	2
AC Frequency Range	50 / 60 Hz
Maximum Efficiency	98.1%
Warranty	5 years
AC nominal output	15000 W
Max. apparent AC power	15 kVA
Maximum AC Power	15000 VA
Maximum DC Power	22500 W
Operating Temperature Range	-25 to +60 °C
Max. input current	30 A
Max. input current (Idc max)	30 A
Cooling	Forced air cooling
