Fronius Symo 15.0-3-M Installation Instructions

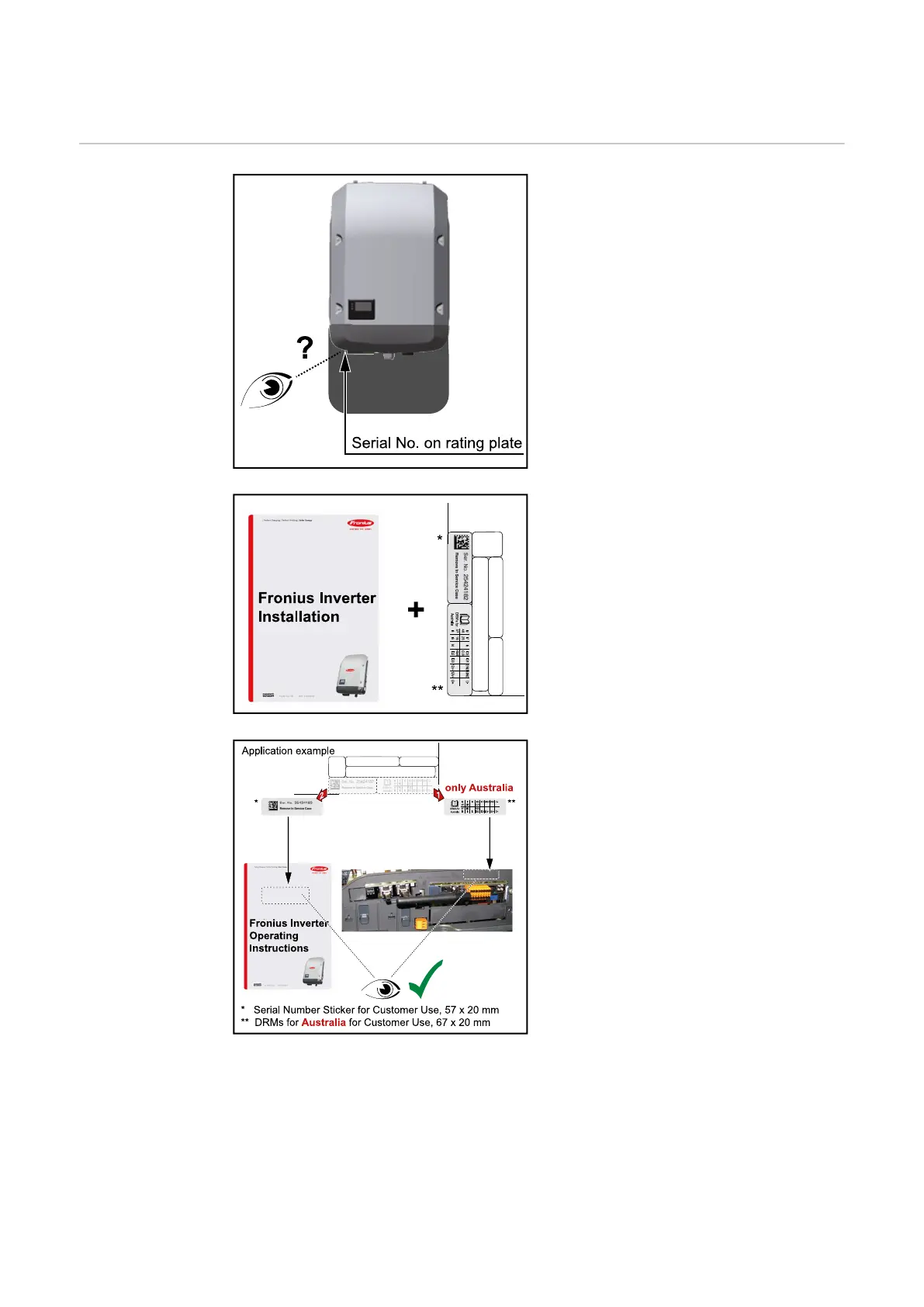

Serial Number Sticker for Customer Use
Serial number
sticker for cus-
tomer use
The serial number of the inverter is
located on the rating plate on the bot-
tom of the inverter.
Depending on the installation position
of the inverter, the serial number can
be difficult to access or read, e.g. if the
inverter has been installed in a dark or
shaded area.
Two serial number stickers are en-
closed with the inverter's installation
instructions:
* 57 x 20 mm
** 67 x 20 mm
These can be affixed by the customer
in a visible location of their choosing,
e.g. on the front of the inverter or on
the Operating Instructions.
Application example:
Serial number sticker on the Operating
Instructions or on the front of the in-
verter
For Australia only:
Affix the DRM Australia sticker in the
Datamanager area.
50

Fronius Symo 15.0-3-M Specifications

General

Max. efficiency	98.1%
Max. input voltage	1000 V
MPPT voltage range	200 - 800 V
Weight	34.8 kg
Protection rating	IP 66
Max. output current	21.7 A
AC nominal voltage	400 V
AC voltage range	320 - 480 V
Frequency	50 / 60 Hz
THD	< 3%
Number of MPP trackers	2
AC Frequency Range	50 / 60 Hz
Maximum Efficiency	98.1%
Warranty	5 years
AC nominal output	15000 W
Max. apparent AC power	15 kVA
Maximum AC Power	15000 VA
Maximum DC Power	22500 W
Operating Temperature Range	-25 to +60 °C
Max. input current	30 A
Max. input current (Idc max)	30 A
Cooling	Forced air cooling
