Fronius SYMO Series User Manual

Navigation in the Menu Level
Activate the dis-
play illumination
1
Press any key.
The display illumination is activated.
The SETUP menu, under the ‘Display settings - illumination’ entry, offers a
choice between a permanently lit or permanently dark display.
Automatic Deac-
tivation of Dis-
play Illumina-
tion / Switching
to the "NOW"
Display Mode
If no key is pressed for 2 minutes, the display illumination turns off automatically
and the inverter switches to the ‘NOW’ display mode (if the display illumination is
set to AUTO).
The inverter can automatically be switched to the ‘NOW’ display mode from any
menu level, unless the inverter was manually switched to standby mode.
The current power feed-in is displayed after automatically switching to the ’NOW’
menu item.

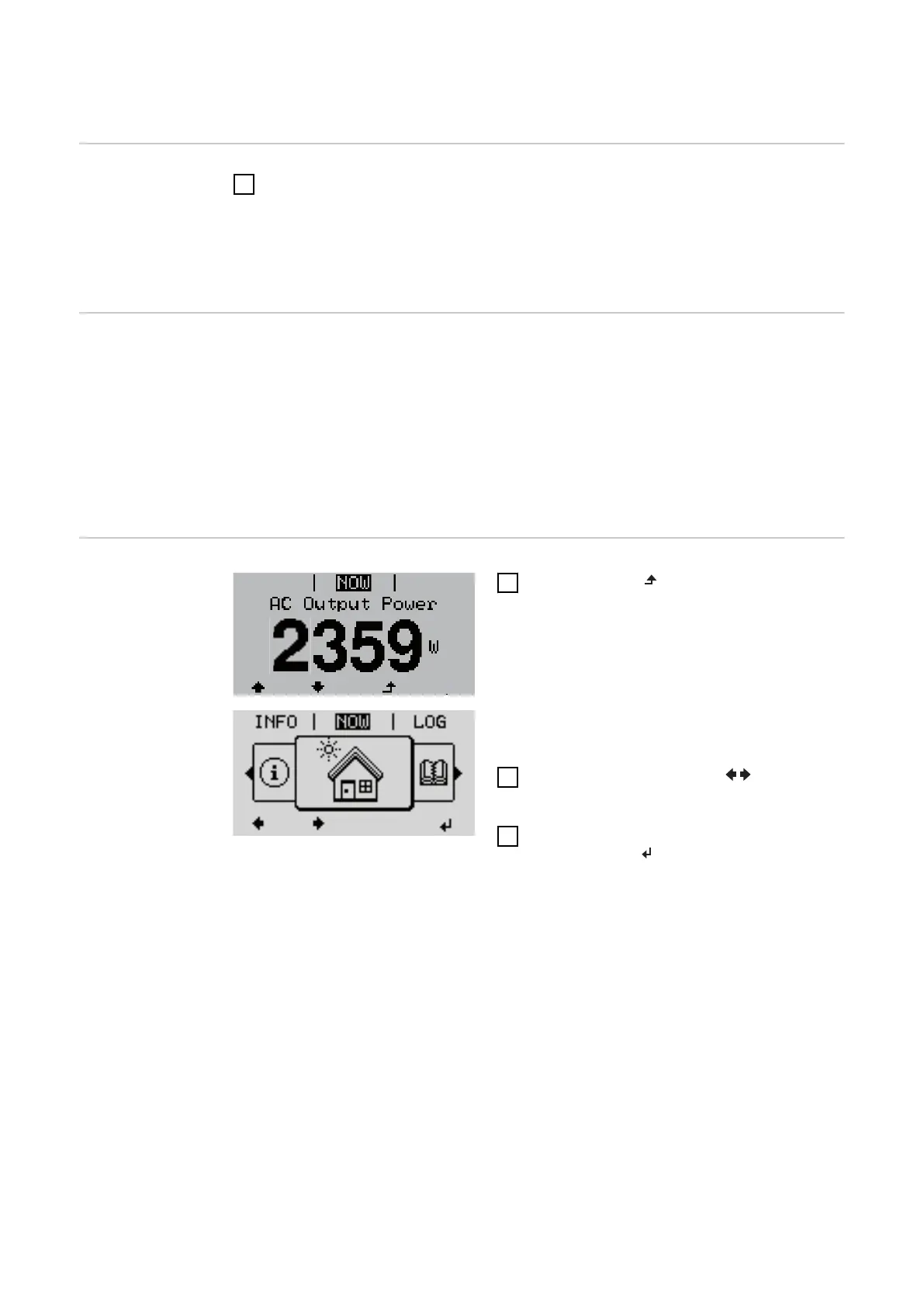

Access the menu
level
1
Press the ‘Esc’ key
The display switches to the menu level.
2
Use the ‘left’ or ‘right’ key to select
the desired menu item
3
Access the desired menu item by press-
ing the ‘Enter’ key
The menu items
-
NOW
shows current data
-
LOG
shows data recorded from today, from the current calendar year and since
the inverter was started for the first time
-
GRAPH
daily characteristic curve graphically represents the course of the output
power during the day. The time axis is automatically scaled. Press the ‘Back’
key to close the display
-
SETUP
setup menu
-
INFO
information on the device and software
26

Fronius SYMO Series Specifications

General

MPPT Number	2
Frequency Range	50 / 60 Hz
Operating Temperature Range	-25°C to +60°C
Communication	WiFi, Ethernet, RS485
AC Nominal Voltage	3 x 230 V / 400 V
Output Voltage	3 x 230 V / 400 V
Warranty	5 years
