TransTig
2500 / 3000
(1)
(2)
(3)
(4)
(5)

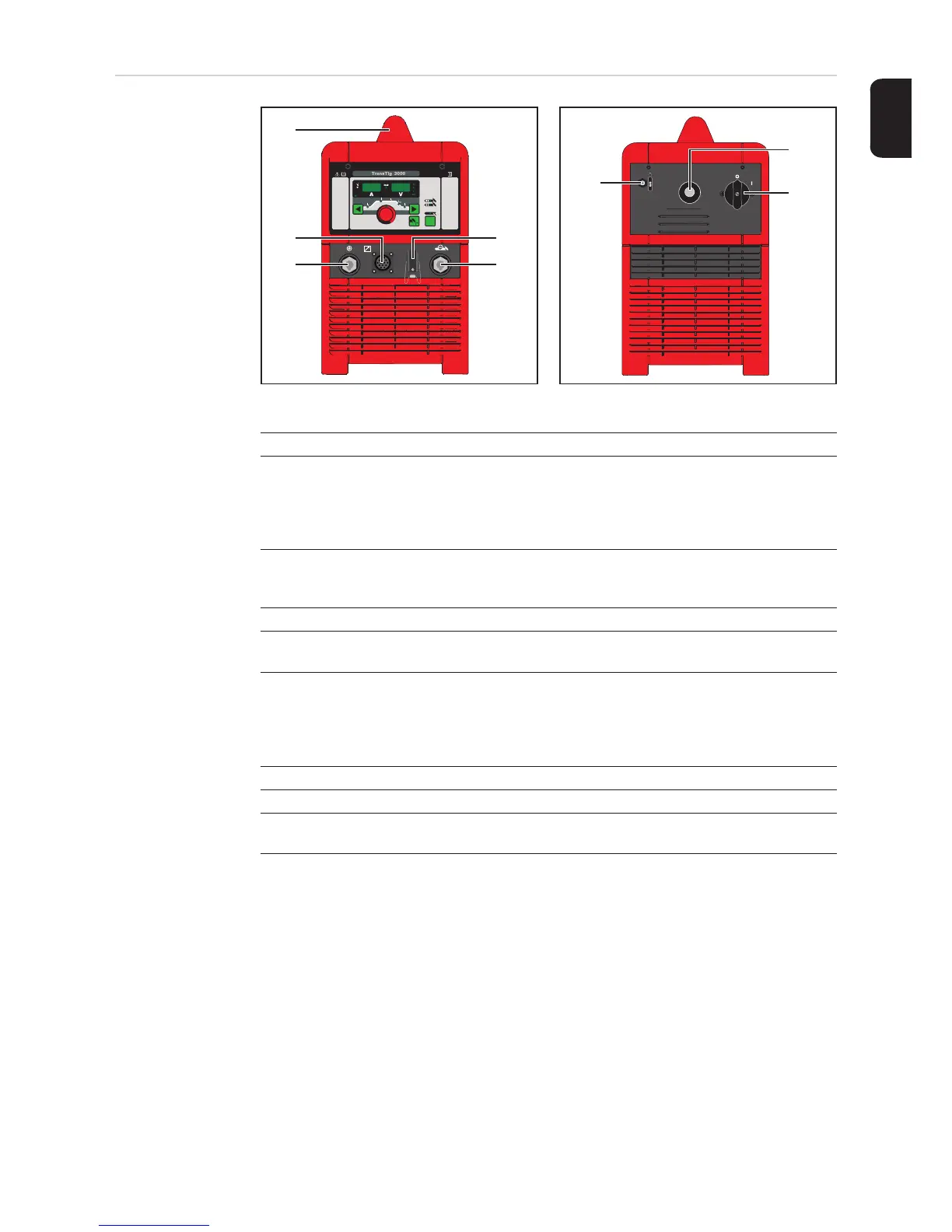

TransTig 2500 / 3000 - front
(6)
(7)
(8)
TransTig 2500 / 3000 - rear
No
.
Function
(1) (+) current socket with bayonet latch
for connecting
-
the grounding (earthing) cable when TIG welding
-
the electrode cable or grounding (earthing) cable during MMA weld-
ing (depending on the type of electrode)
(2) LocalNet connection
standardised connection socket for system add-ons (e.g. remote control,
JobMaster TIG welding torch, etc.)
(3) Handle
(4) Torch control connection
for connecting the control plug of a conventional welding torch
(5) (-) current socket with bayonet latch
for connecting
-
the TIG welding torch
-
the electrode cable or grounding (earthing) cable during MMA weld-
ing (depending on the type of electrode)
(6) Shielding gas connection
(7) Mains cable with strain relief device
(8) Mains switch
for switching the power source on and off
