Connecting up the mains cable on US power sourc-
es
General The US power sources are supplied without a mains cable. A mains cable appropriate for
the connection voltage must be fitted prior to commissioning.
A strain-relief device for a cable cross-section AWG 10 is installed on the power source.
Strain-relief devices for larger cable cross-sections must be designed accordingly.
Stipulated mains
cables and strain-
relief devices
AWG ... American Wire Gauge
Safety
Connecting the
mains cable
Remove the left side panel of the power source
Strip about 100 mm (4 in.) of insulation from the end of the mains cable
Fit ferrules to phase conductors and the PE conductor of the mains cable; crimp fer-
rules with pliers

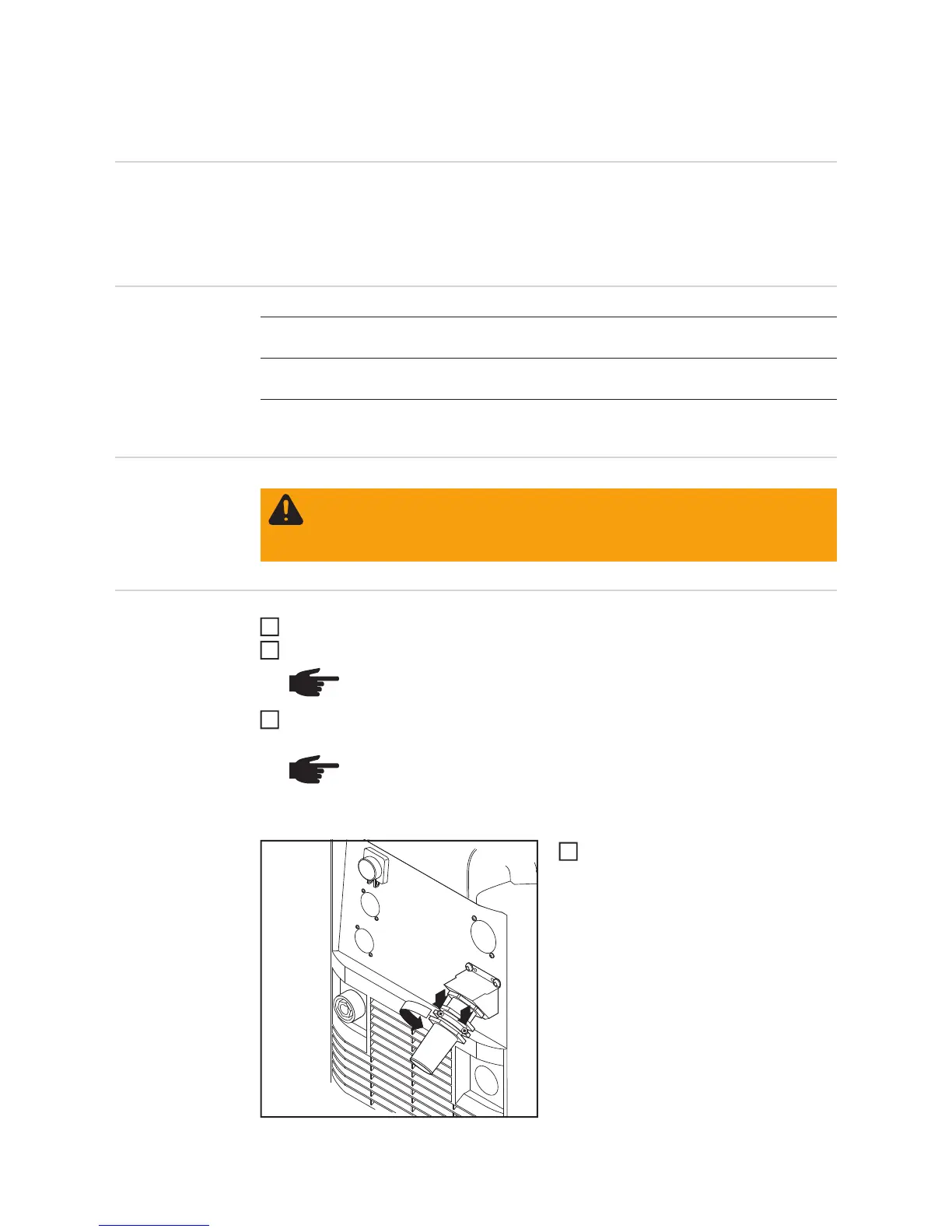

Undo the screws (2 x) and clamping
nut (size 30) on the strain-relief device
Power source Mains voltage Cable cross-sec-
tion
TT 4000/5000 MV Job, MW 4000/5000 MV
Job
3 x 380 - 460 V
3 x 200 - 240 V
AWG 10
AWG 6
WARNING! Work that is carried out incorrectly can cause serious injury and dam-
age. The following activities must only be carried out by trained and qualified per-
sonnel. Pay particular attention to the "Safety rules" sections in the power source
and system component operating instructions.
NOTE! The PE conductor (green, or green with yellow stripes) should be ap-
prox. 10 - 15 mm (0.4 - 0.6 in.) longer than the phase conductors.
NOTE! If ferrules are not used, there is a risk of short circuits between the
phase conductors or between phase conductors and the PE conductor. Fit
ferrules to all phase conductors and the PE conductor of the stripped mains
cable.
1
2
3
4
