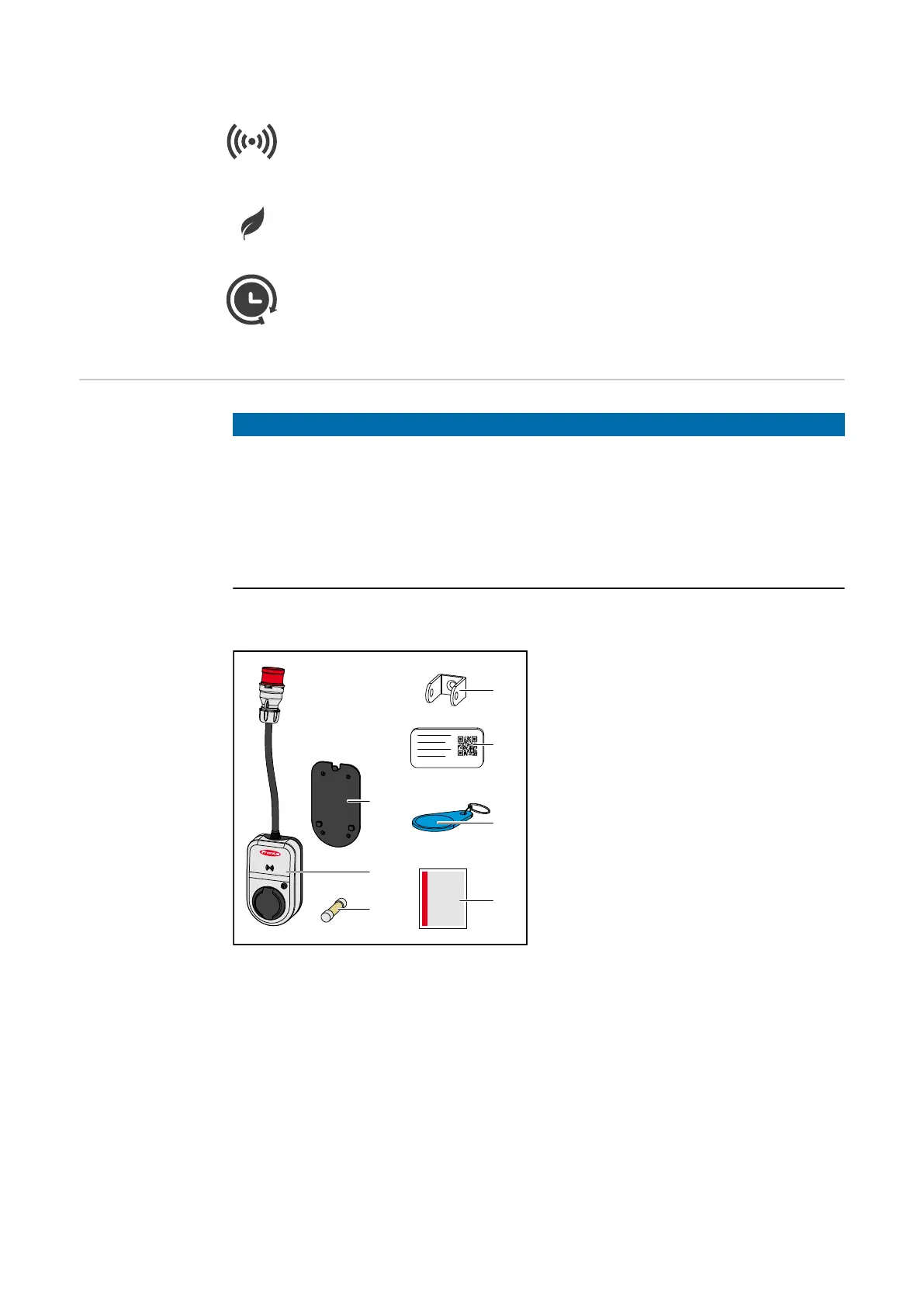

Symbols on front of the device:
Card reader
Symbol in relief in the housing of the Wattpilot. The symbol marks the location
of the internal RFID card reader where ID chips can be authenticated or
taught-in or the Wattpilot can be reset using the reset card.
Eco Mode
This symbol indicates operation in Eco Mode; the first LED lights up white.
Next Trip Mode
This symbol indicates operation in Betrieb im Next Trip Mode; the second LED
lights up white.
Scope of supply
NOTE!
Only use original miniature fuses and original adapter sets.
Device safety can only be guaranteed with an original miniature fuse. Common glass
tube fuses can shatter.
The CEE plugs of the adapter set differ from those of other suppliers due to their design
with a reed contact.
Use original miniature fuses.
Use original adapter sets.
Fronius Wattpilot Go 11 J/22 J
Quick
Start
Guide
(1)
(3)
(5)
(6)
(7)
(2)
(4)
(1) Mounting bracket, incl. screws and
dowels
(2) Wattpilot Go 11 J or Wattpilot Go
22 J
(3) Miniature fuse (only use original
miniature fuses)
(4) Anti-theft device
(5) Reset card
(6) ID chip
(7) Quick Guide
Optional
- Type 2 cable, 32 A, 22 kW, 5 m (item number 4,240,180)
- ID chips, 10 pieces (item number 4,240,181)
- Mounting plate Go, additional mounting bracket (item number 4,240,182)
- Adapter set Go 22 (item number 4,240,183), CEE adapter 32 A to
- CEE plug red 16 A (3-phase)
- CEE plug blue 16 A, camping plug (1-phase)
- Earthed plug 16 A (household socket)
- Adapter set Go 11 (item number 4,240,184), CEE adapter 16 A to
- CEE plug red 32 A (3-phase)
- CEE plug blue 16 A, camping plug (1-phase)
- Earthed plug 16 A (household socket)
