ASSEMBLY
OM 0408SB1184-A
19

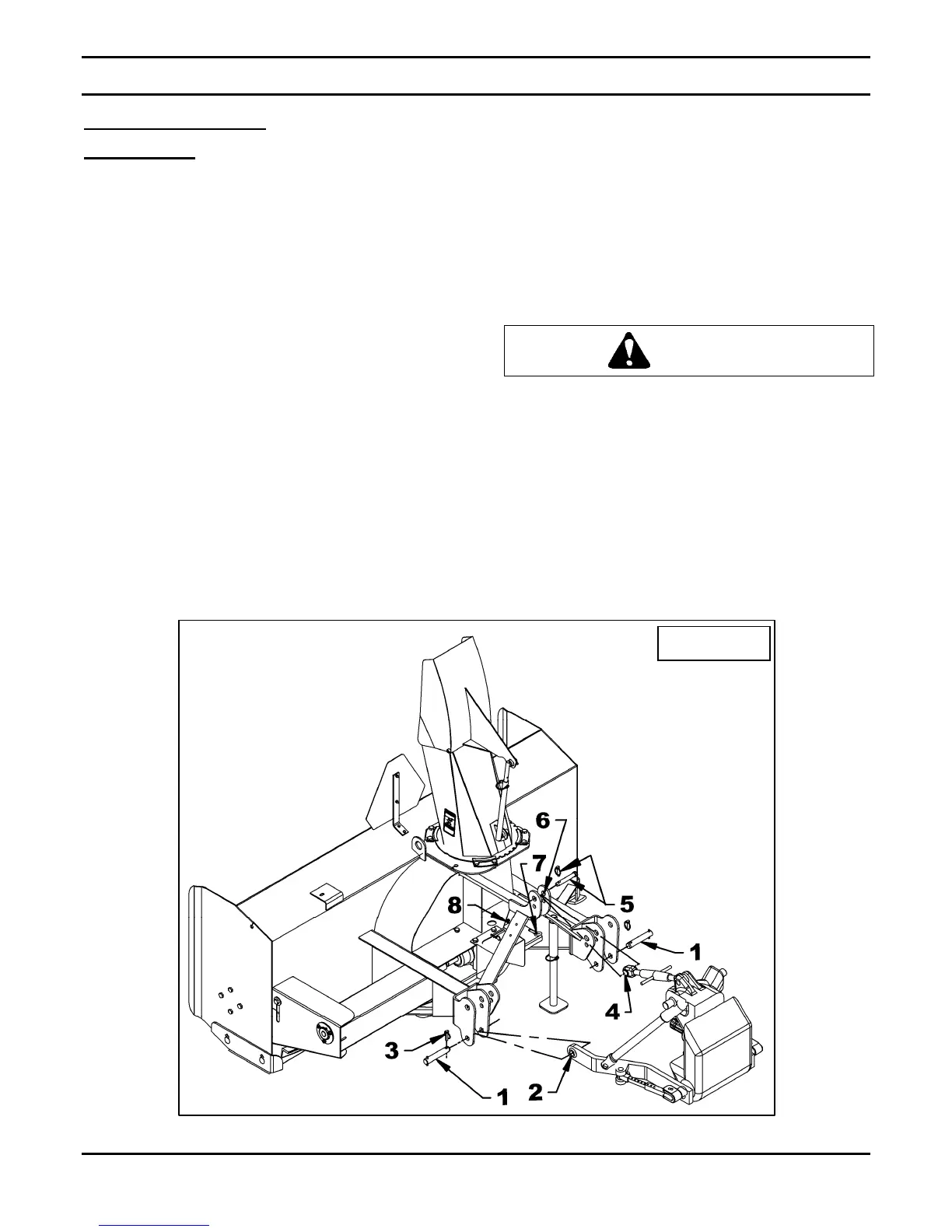

Figure 11
CATEGORY 2
SB1184 & SB1194
CATEGORY 2
(Figure 11
1. Install the two cat. 2 pins (item 1) on the
right and left snowblower hitches in the
lower holes of the outside plates as shown
on figure.
2. Attach tractor lower links (item 2) to the
snowblower hitch pins (item 1) and secure
with the linchpins (item 3).
3. Attach the tractor upper link (item 4)
between the upper attaching plates (item 6)
using the tractor pin and linchpin (item 5 –
not included).
4. Adjust the snowblower using the tractor
upper link so that the snowblower operates
parallel to the ground.
5. Set the tractor anti-sway turnbuckles so the
snowblower does not sway. Be sure there
is no contact with the tires.
6. Install the eyebolt (item 7) in the upper hole
of the left or right side of the three point
hitch by screwing the eyebolt nut to the top
and locking eyebolt in place with a 3/8"
serrated flange nut (item 8).
CAUTION
Before connecting snowblower driveline to
tractor drive shaft, make sure driveline is not
too long in raised, lowered and middle
position. If the driveline is too long it must be
shortened, to avoid damaged to tractor. See
pages 24 to 26 for instructions.
