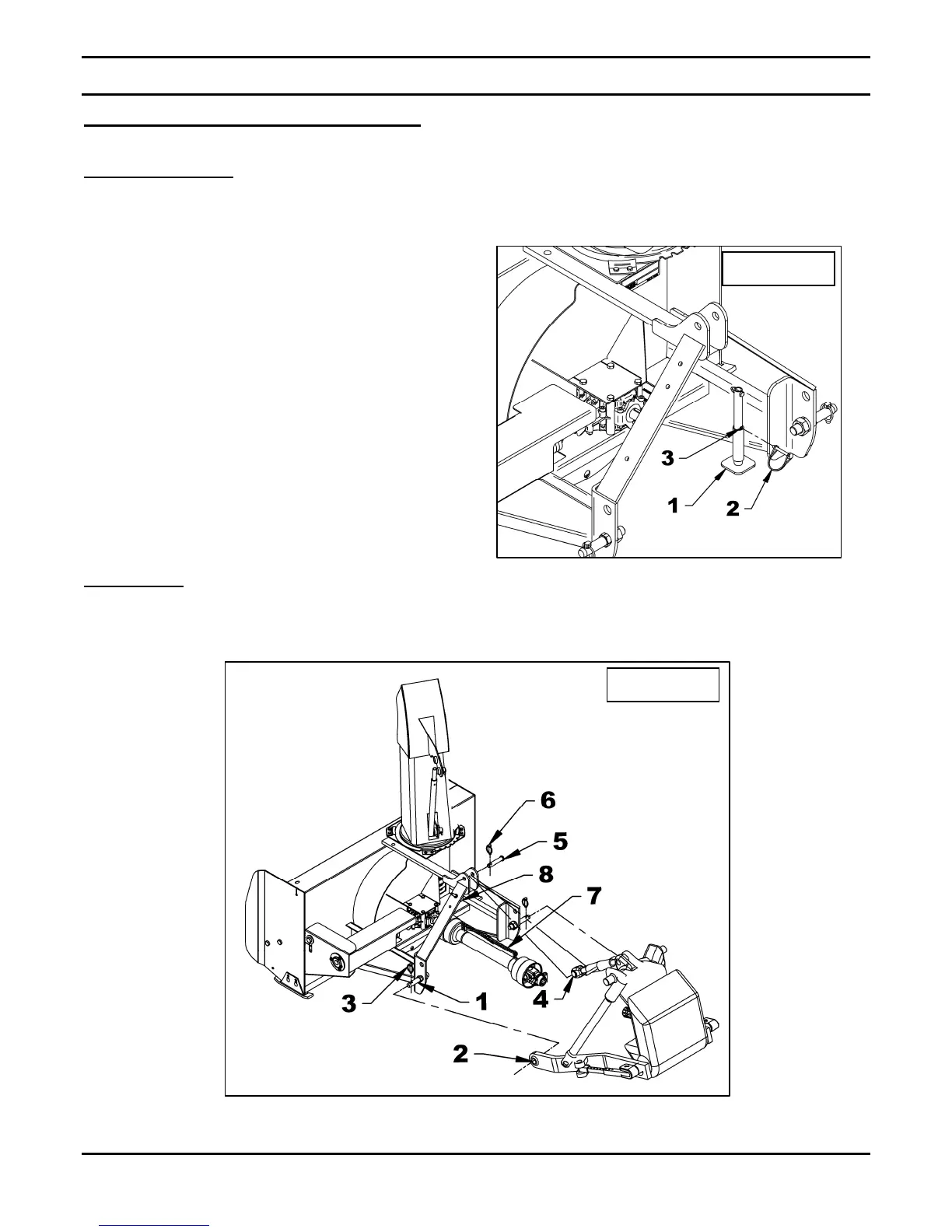

Removing Snowblower from Tractor
(Figures 23-24-25)
Three Point Hitch
1. Set parking brake and turn engine off.
2. Figure 23: Remove the wire round lock pin
(item 2), lower the parking stand (item 1)
completely to the ground to release all
pressure from the three-point and reinsert the
wire round lock pin in the lower hole (item 3).
3. Figure 24: Detach upper link (item 4) by
removing linchpin and pin (items 6-5).
4. Figure 24: Disconnect driveline from tractor
and attach the driveline safety chain (item 7) to
the three point hitch eyebolt (item 8).
5. Figure 24: Carefully detach lower links
(items 2) from hitch pins (item 1) by removing
linchpins (items 3), loosen anti-sway
turnbuckles and slowly back tractor away from
the snowblower.
IMPORTANT
: To avoid damages to the
snowblower, retorque all bolts after the first 10
hours of operation.
