Frontier SB1184 - 5 RDF0018 - Hydraulic Rotation

PARTS
OM 0408SB1184-A
46

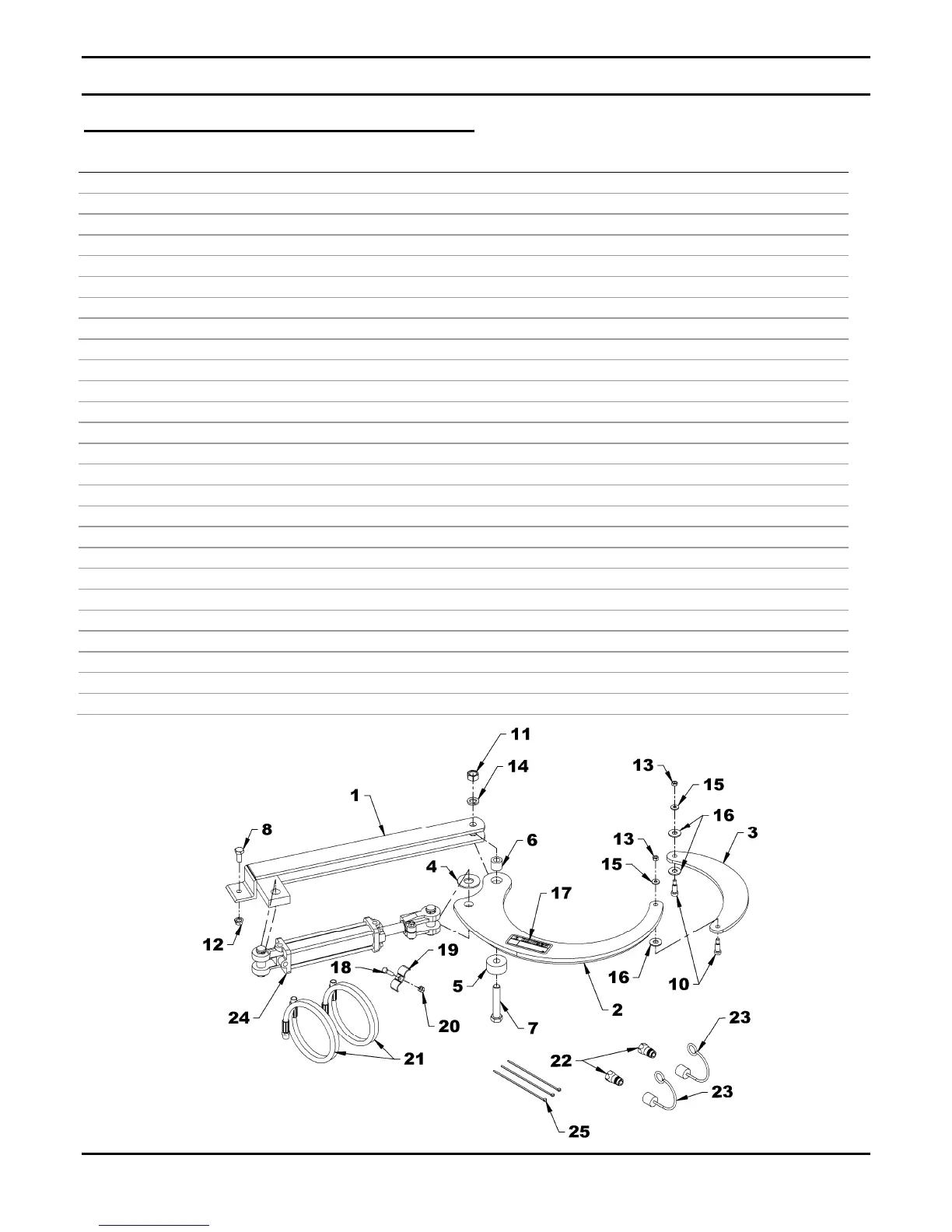

5RDF0018 - HYDRAULIC ROTATION
R
EF. DESCRIPTION QTY PART #
1 Rotation bracket 1 5RD664475
2 Bell crank 1 5RD664473
3 Push arm 1 5RD664474
4 Flat washer 1 1/16" hole PTD 1 5RD1400013
5 Spacer ring 1 5RD664477
6 Pivot bushing 5RD664476
7 Bolt hex. 3/4" NC x 4", gr. 5 PTD (For SB1174 only) 1 5RD0100124
8 Bolt hex. 1/2" NC x 1 1/4", gr. 5 PTD 1 5RD0100069
9 Bolt hex. 3/4" NC x 5", gr. 5 PTD (For SB1184 only) 1 5RD0100126
10 Shoulder screw 1/2" x 1" lg 3/8"NC 2 5RD664578
11 Nut hex. 3/4" NC PTD 1 5RD0900008
12 Nut serrated flange 1/2" NC PTD 1 5RD0900046
13 Stover nut hex 3/8" NC PTD 2 5RD1100003
14 Lockwasher 3/4" PTD 1 5RD1200008
15 Flat washer 3/8" hole PTD 2 5RD1400003
16 Flat washer 9/16" hole PTD 3 5RD1400006
17 Decal "Danger" 1 5RD664548
18 Bolt hex. 3/8" NC x 1 1/2", gr. 5 PTD 1 5RD0100040
19 Hose clamp 1 5RD660440
20 Nut nylon insert 3/8 NC PTD 1 5RD1000006
21 Hose 3/8" x 92" lg 3/8" NPT RM x 1/2" NPT RM 2 5RD3700143
22 Quick coupler 1/2-14 NPT male 2 5RD656480
23 Dust cap for male quick coupler 2 5RD664898
24 Cylinder 2" X 6" inc. pins 1 5RD3900022
Seal kit 1 5RD3900205
25 Tie wraps 8" x 4.8 mm 3 5RD2100003
