ASSEMBLY
OM 0408SB1184-A
18
Installation of Snowblower with Three Point Hitch
(Figures 10-11-12)
SB1184 (Figures 10-11)
CATEGORY 1
(Figure 10)
1. Install the two cat.1 pins (item 1) on the right
and left snowblower hitches in the lower
holes of the inside plates as shown on figure.
2. Attach tractor lower links (item 2) to the
snowblower hitch pins (item 1) and secure
with the linchpins (item 3).
3. Attach the tractor upper link (item 4) between
the upper attaching plates (item 6) using the
pin and linchpin (item 5 – not included).
4. Adjust the snowblower using the tractor
upper link so that the snowblower operates
parallel to the ground.
5. Set the tractor anti-sway turnbuckles so the
snowblower does not sway making sure
there is no contact with the tires.
6. Install the eyebolt (item 7) in the upper hole
of the left or right side of the three point hitch
by screwing the eyebolt nut to the top and
locking eyebolt in place with a 3/8" serrated
flange nut (item 8).
CAUTION
Before connecting snowblower driveline to
tractor drive shaft, make sure driveline is not
too long in raised, lowered and middle
position. If the driveline is too long it must be
shortened, to avoid damaged to tractor. See
pages 24 to 26 for instructions.

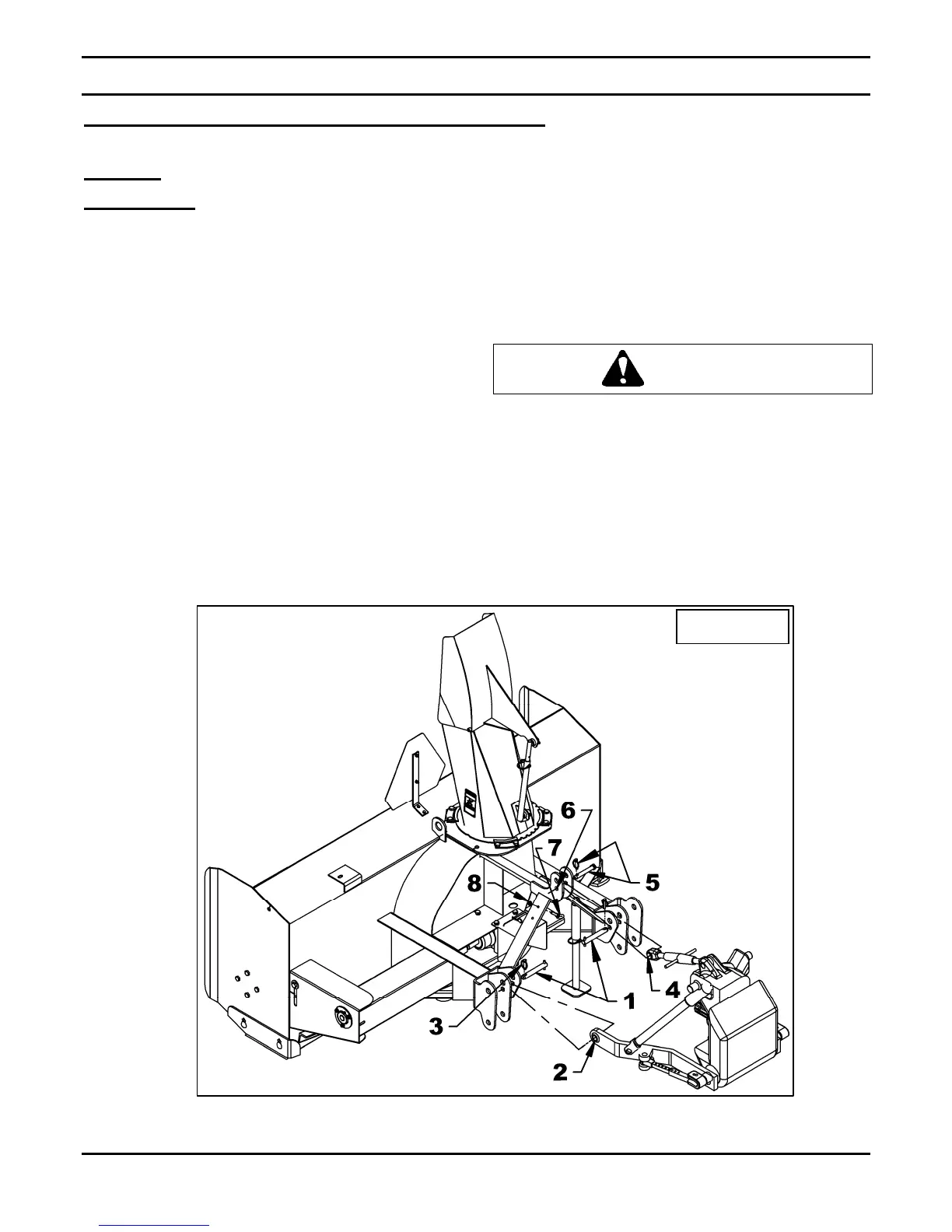

Figure 10
CATEGORY 1
