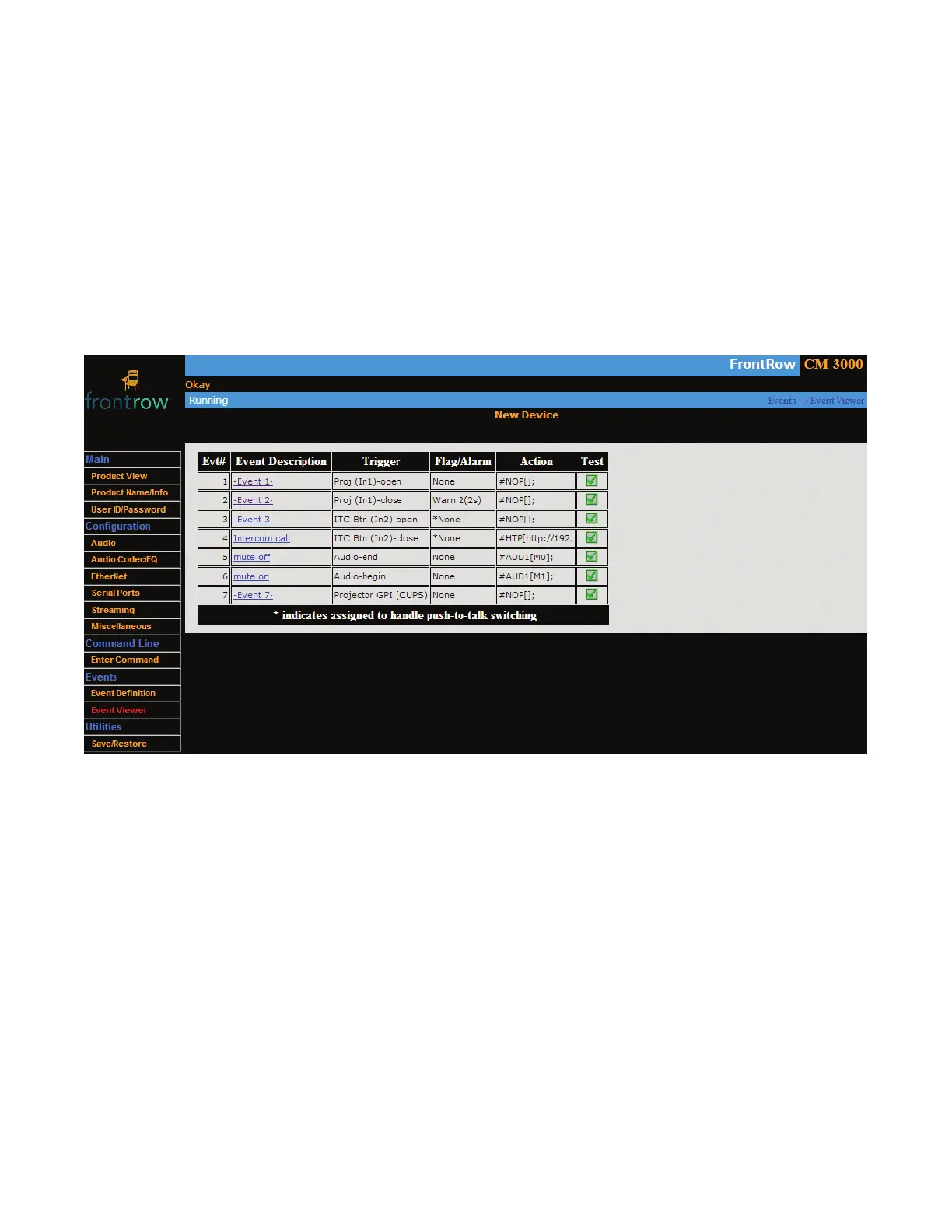

12. Event Viewer
This screen shows for each trigger what command will be executed (if any). Checking the green box will simulate a trigger to
enable testing the trigger/command combination.
Note that triggers 5 and 6 represent legacy paging systems (i.e., not a Conductor system) audio start and audio stop for the
Page Override feature.
• Events 1 and 2 are triggered by the GPI of the CM3000 (open and close)
• Events 3 and 4 are triggered from the CB75 push button if so programmed and configured
• Events 5 and 6 are for page override and are typically set to “Mute” and “Unmute”
• Event 7 is no longer used by the CM3000.
