3

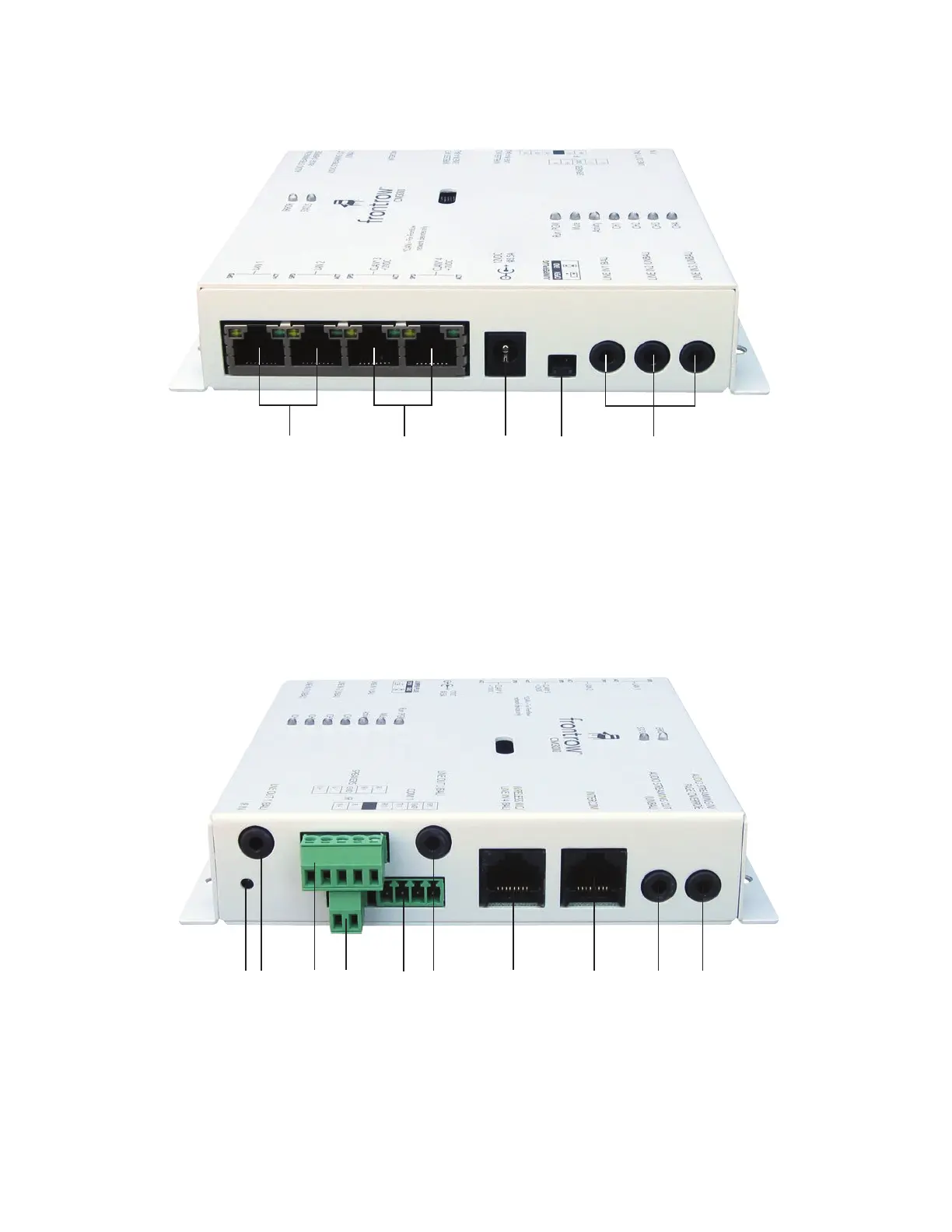

2. Get Familiar with input and output ports
1 LAN Ports
2 Powered LAN Ports
NOTE: The Powered LAN Ports are +12V DC
and are used only for FrontRow devices
3 Device Power
4 Ground Switch
NOTE: The Ground Switch is to provide a harder
ground point in the event of ground loop hum
on Audio Input 1
5 Audio Inputs
1
Left Side
2
3
4
5
1 IR Input
2 Line Out
3 Speaker Terminals and
Ground Terminal
(shown with Phoenix Connector)
4 IR Output
(shown with Phoenix Connector)
5 Serial Terminals with GPI
(input)
6 Wireless Mic
7 Intercom
8 Audio Streaming Out
From Conductor
9 Audio Streaming In and
Page Override
Right Side
6
7
8
2
2
3 4
5
9
1
To Next Page
