Connecting your CM3000 in an ezRoom installation

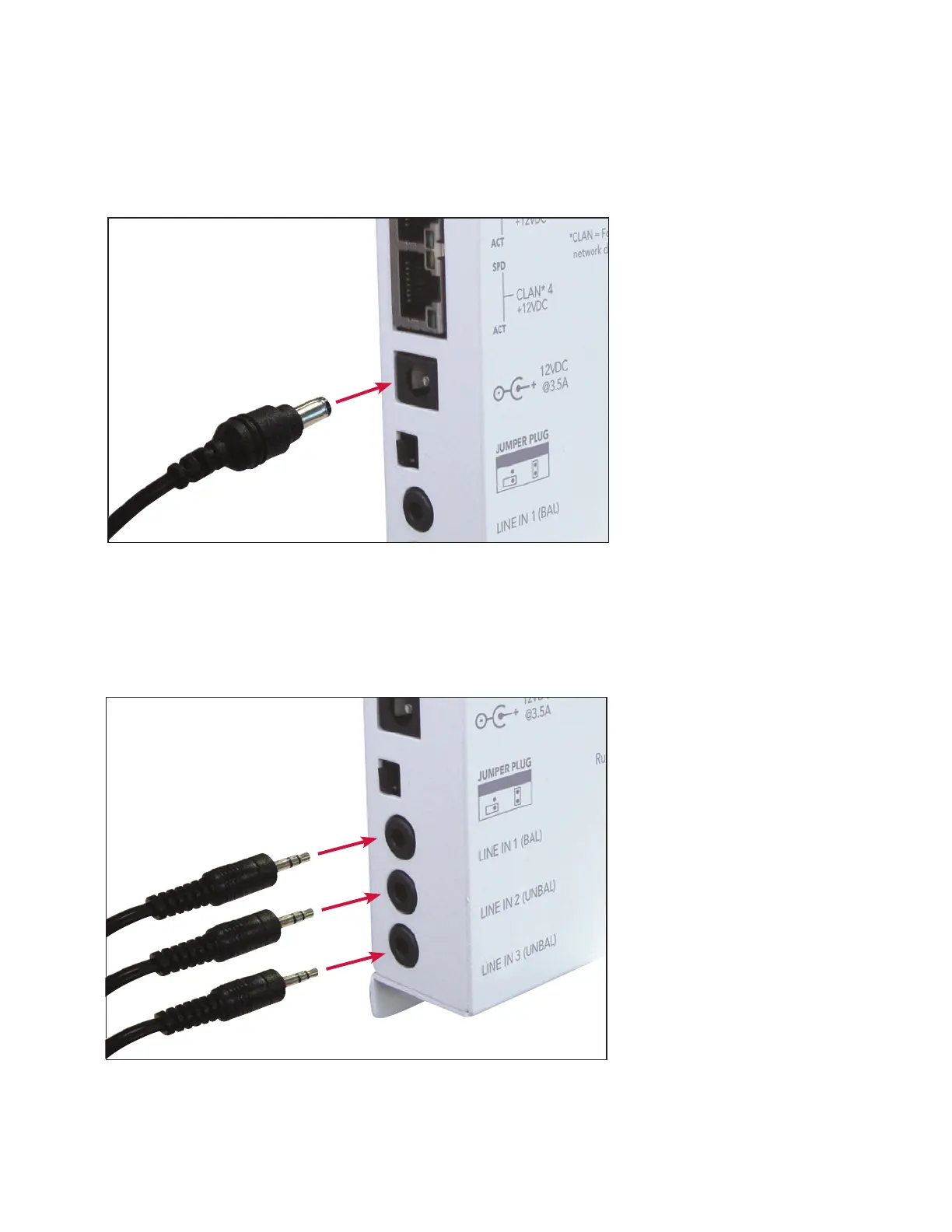

1. Plug the power supply jack into the 12VDC (3.5A) power socket.
Step 5: Install your CM3000
2. Connect the Channel 1 mini-audio jack to the LINE IN 1 port. Any combination of ports can be used. The default jumper
position for LINE IN 1 is for balance mode. The typical configuration is to use LINE IN 1 for computer audio, LINE IN 2 for
a video device (composite video with stereo with RCA audio), and LINE IN 3 for audio from an HDMI source. However, any
configuration is supported.
OR
OR
