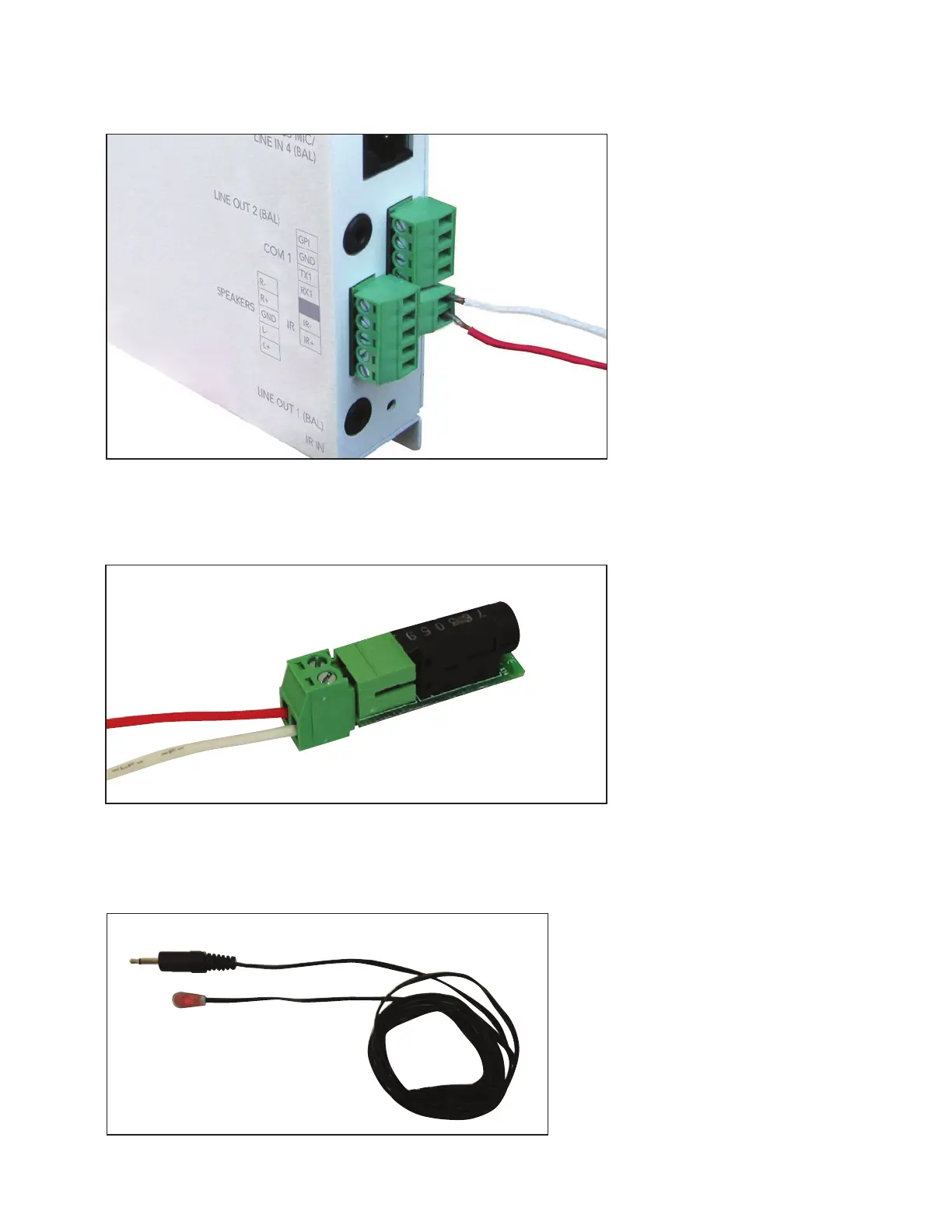

7. If your classroom has an IR-controlled device, connect the receiver wires to the IR port as show below with the included
Phoenix connector. (Wires are not provided with your CM3000.)
IR-
IR+
23
Connect the receiver wires to a FrontRow TB5 as shown below. Be sure to connect the positive and negative wires as
shown. (TB5, Phoenix connector and wires are not provided with your CM3000.)
3.5mm
jack
IR-
IR+
Insert the 3.5mm connector of a FrontRow IR emitter into the TB5 3.5mm jack, and attach the emitter surface to the IR
receiver on the IR-controlled device with the adhesive tab. The emitter surface is a shade of red, and should completely
cover the device’s IR receiver and be securely in place. (IR emitter and adhesive tab are not provided with your CM3000.)
3.5mm connector
emitter end, showing
the emitter surface
To Next Page
