8.3 Drain System Components

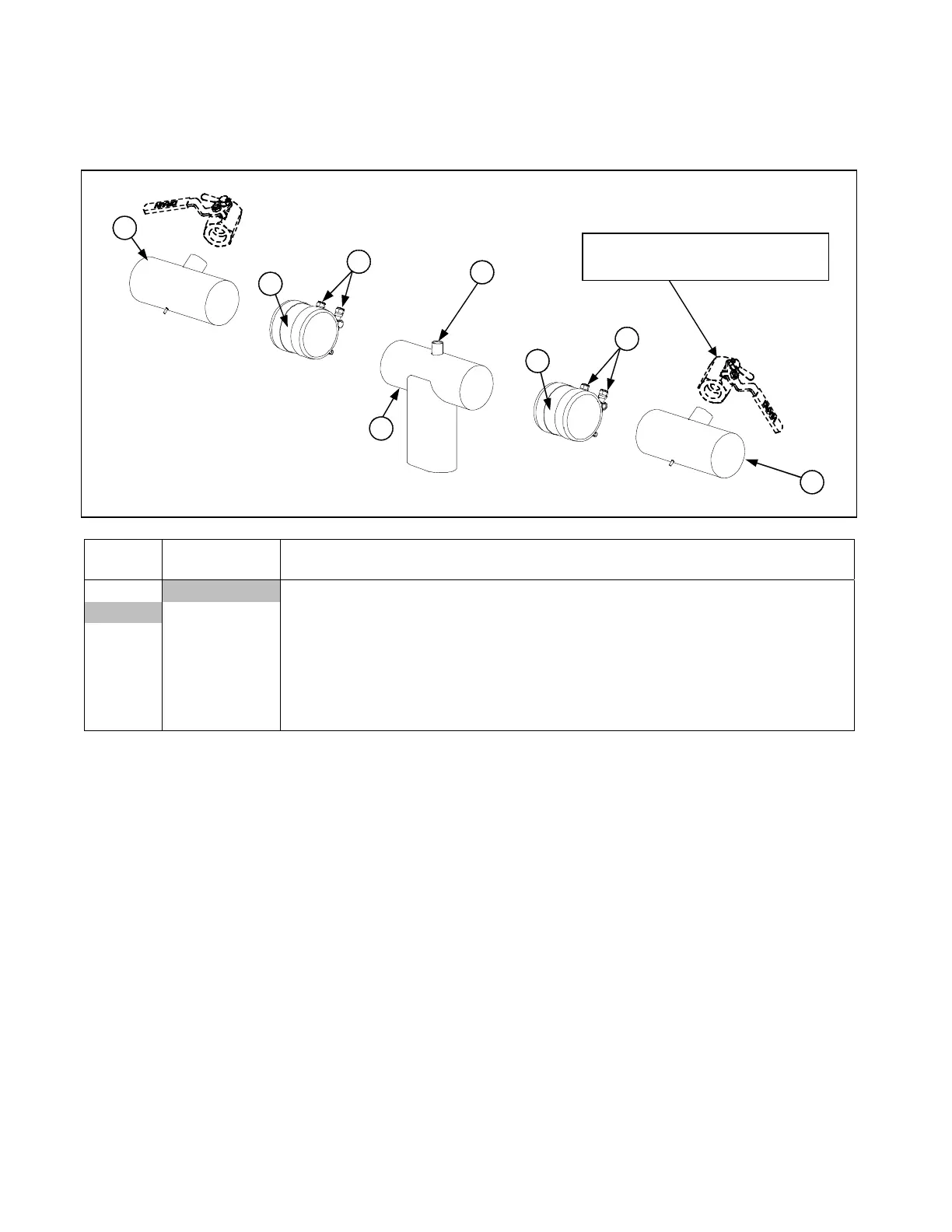

8.3.1 FPRE217/222 Euro-Look Drain Tube Sections and Associated Parts
5
4
4
3
3
2
1
1
ITEM
EURO-LOOK
PART #
COMPONENT
1 Drain Tube, Left/Right End Short
823-5048 Full-Vat
2 823-5049 Drain Outlet
3 816-0625 Sleeve
4 809-0969 Clamp
5 810-2492 Fitting, Quick-Connect Straight (receives Teflon vent tube)
* 811-1071 Tube, Teflon Vent (sold by the foot)
Not illustrated.
See Next Section for Drain
Valves
