8.4 Electronics and Wiring Components

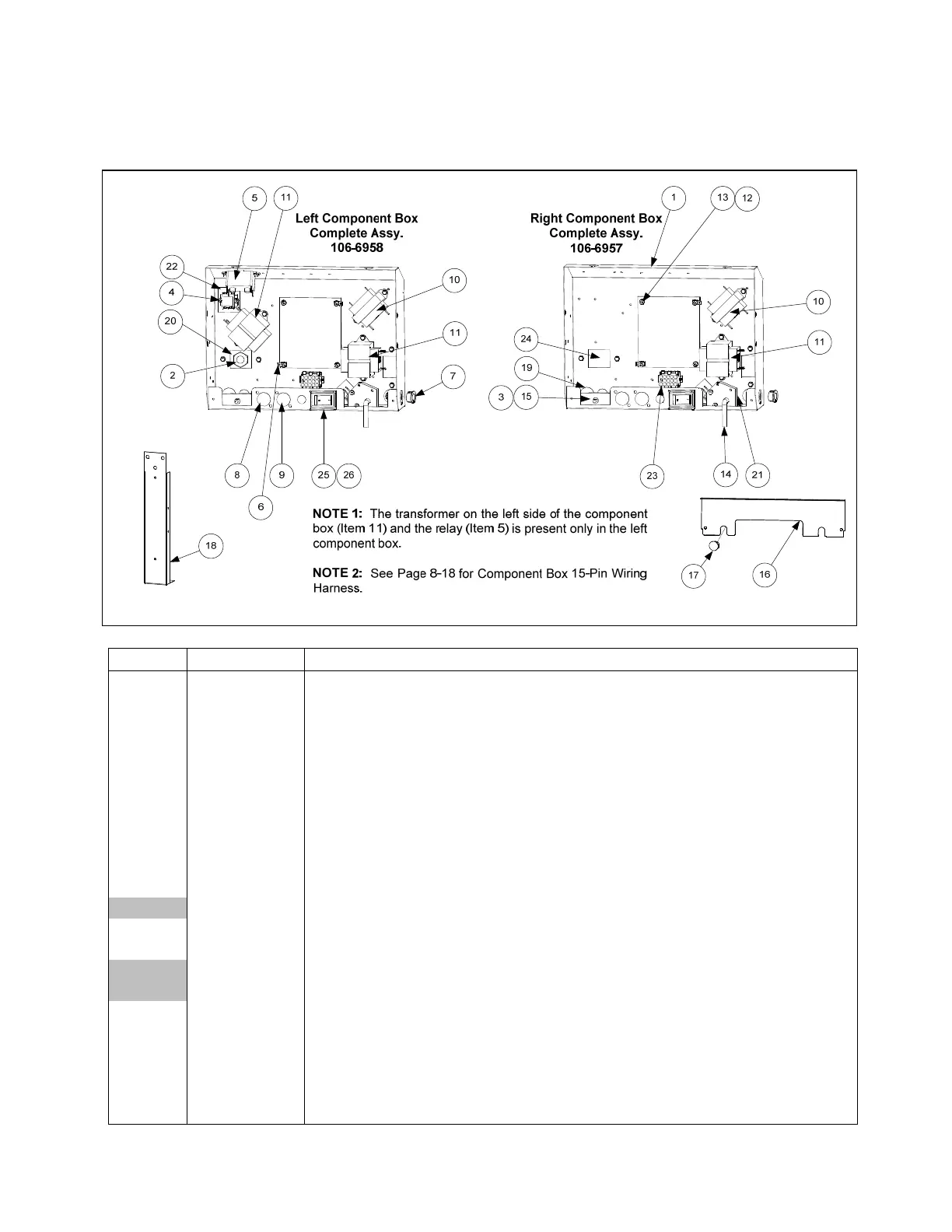

8.4.1 Component Boxes
ITEM PART # COMPONENT
1 106-5846 Box Assembly, Component
2 809-0582 Washer, Locking
3 230-1057 Bracket, Circuit Breaker
4 806-9495SP Terminal Block and Wire Assembly
5 807-0012 Relay, Filter 18 Amp ⅓ HP 24V Coil
6 826-1337 Terminal, ¼-inch Push-on (Pkg. of 5)
7 810-0045 Bushing, .875 Dia. Hole 11/16”
8 807-1947 Plug, .875
9 810-2446 Plug, .50 Heyco Double “D”
10 807-0855 Transformer, 100-120V/12V 20VA
11 807-2180 Transformer, 208-240V/24V 50VA Filter (used with 220V Motors)
807-0800 Transformer, 100-120V/24V 50VA Filter (used with 120V Motors)
12 809-0349 Spacer, 4mm X 6mm Aluminum
13 106-6811 Interface Board (on SMT boards the relays are not replaceable)
807-3932 Relay, Heat/Latch 12VDC SPDT 12 Amp Sealed (on SMT boards the
relays are not replaceable)
14 106-5848 Handle Assembly, Oil Flush FV
15 807-0069 Circuit Breaker, 10 Amp
16 230-0812 Guard, Finger
17 810-2445 Plug, Button .625 Heyco Double “D”
18 210-8995 Brace, Component Box
19 807-1083 Bushing, Heyco
continued on the following page….
