8.3.2 Drain Valve Assembly and Component Parts

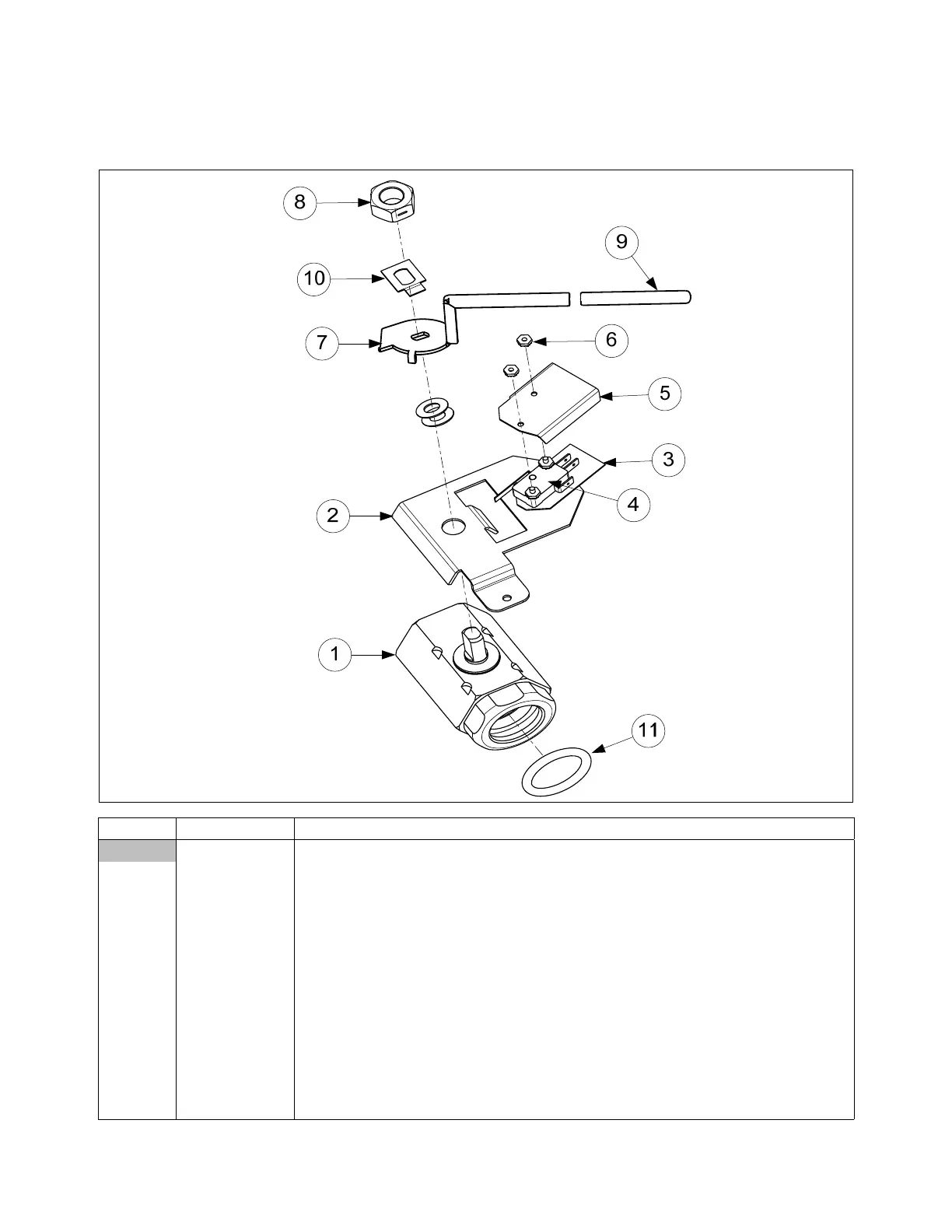

8.3.2.1 FPRE117/122 Single Drain Valve Assembly
ITEM PART # COMPONENT
106-4962 Valve Assembly, Full Vat Drain
1 810-2946 Valve, 1¼-inch Full-Vat Drain Single SS
2 106-5391 Bracket Assembly, Full-Vat Drain Safety Switch
3 816-0220 Insulation, Drain Safety Switch
4 807-2103 Microswitch, CE Straight Lever
5 210-9178 Cover, Dual Vat Drain Safety Switch
6 826-1366 Nut, 4-40 Keps Hex (Pkg. of 25)
7 824-1602 Handle, Full-Vat Drain Valve
8 210-9203 Nut, ½-13 2-Way Hex Lock SS
9 816-0639 Cap, Red Handle
10 210-9177 Retainer, Nut Drain Valve FV
11 816-0135 O-Ring, Round Drain
* 823-5592 Tube, Drain Single Station Fryer Only with Filter
* Not illustrated.
