Frymaster FPRE117 - Oil Disposal Plumbing

8-25

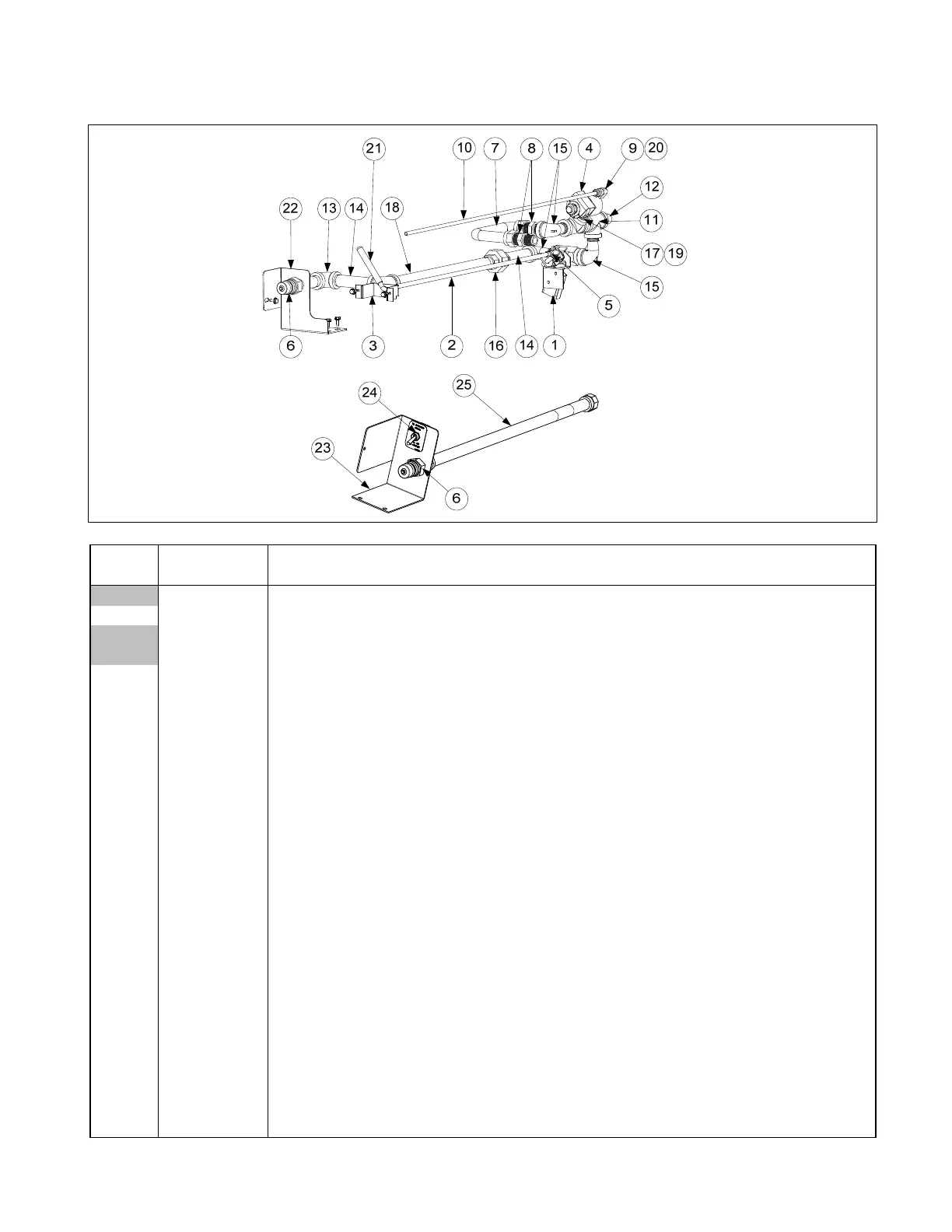

8.8 Oil Disposal Plumbing
ITEM PART # COMPONENT
106-5975 Plumbing, Front Oil Disposal (use 106-6472 for Singles)
1 106-5974 Valve Assembly, Oil Disposal
810-2944 Valve ½-inch Ball SS
807-2103 Microswitch
2 230-0985 Rod, Oil Disposal
3 230-0986 Bracket, Oil Disposal Rod
4 807-2484 Valve, Solenoid ¼-inch NPT
5 809-0601 Clip, Clevis Right Rod End
6 810-0487 Coupling, Male, Quick Disconnect
7 810-1043 Flexline, ½-inch ID x 9.50”
8 810-1668 Adaptor, Male ⅝-inch OD x ½-inch
9 810-2493 Fitting, 90° Quick Connect Tube
10 812-1803 Tubing, ¼-inch OD x 24.50” Teflon
11 813-2343 Tee, ½-inch x ½-inch x ½-inch SS
12 813-0900 Nipple, ½-inch x Close SS
13 813-0889 Elbow, ½-inch 90° SS
14 813-0901 Nipple, ½-inch x 4.0” SS
15 813-0616 Elbow, Street ½-inch x ½-inch NPT 90° SS
16 813-0902 Union, ½-inch NPT SS
17 813-0903 Bushing, ½-inch x ¼-inch SS Flush
18 813-0904 Nipple, ½-inch x 13.0” NPT SS
19 813-0905 Nipple, ¼-inch x 1½-inch SS
20 813-0807 Bushing, ¼-inch x ⅛-inch
21 816-0637 Cap, Vinyl Blue 5/16-inch x 3.0”
22 823-5693 Bracket, Assembly Quick Disconnect
23 823-5858 Bracket Mount Single RCCL
24 807-2106 Switch Toggle Single
25 810-1068 Flexline, ⅝-inch O.D. x 21.50-inch
