Section 4 Service, Configuration & Testing
43 FT722 & FT742 (RS485) – FF & PM Sensors – User Manual
Wind Readings Tab
The Wind Readings display includes sensor settings, real-time wind speed and direction data.
The temperature gauge on the right-hand side shows the Heater Setpoint, Internal Temperature and the ‘Acoustic
Temperature’ ambient air reading.
Note: Acoustic Temperature data requires software V7.5+ and an FT temperature calibration

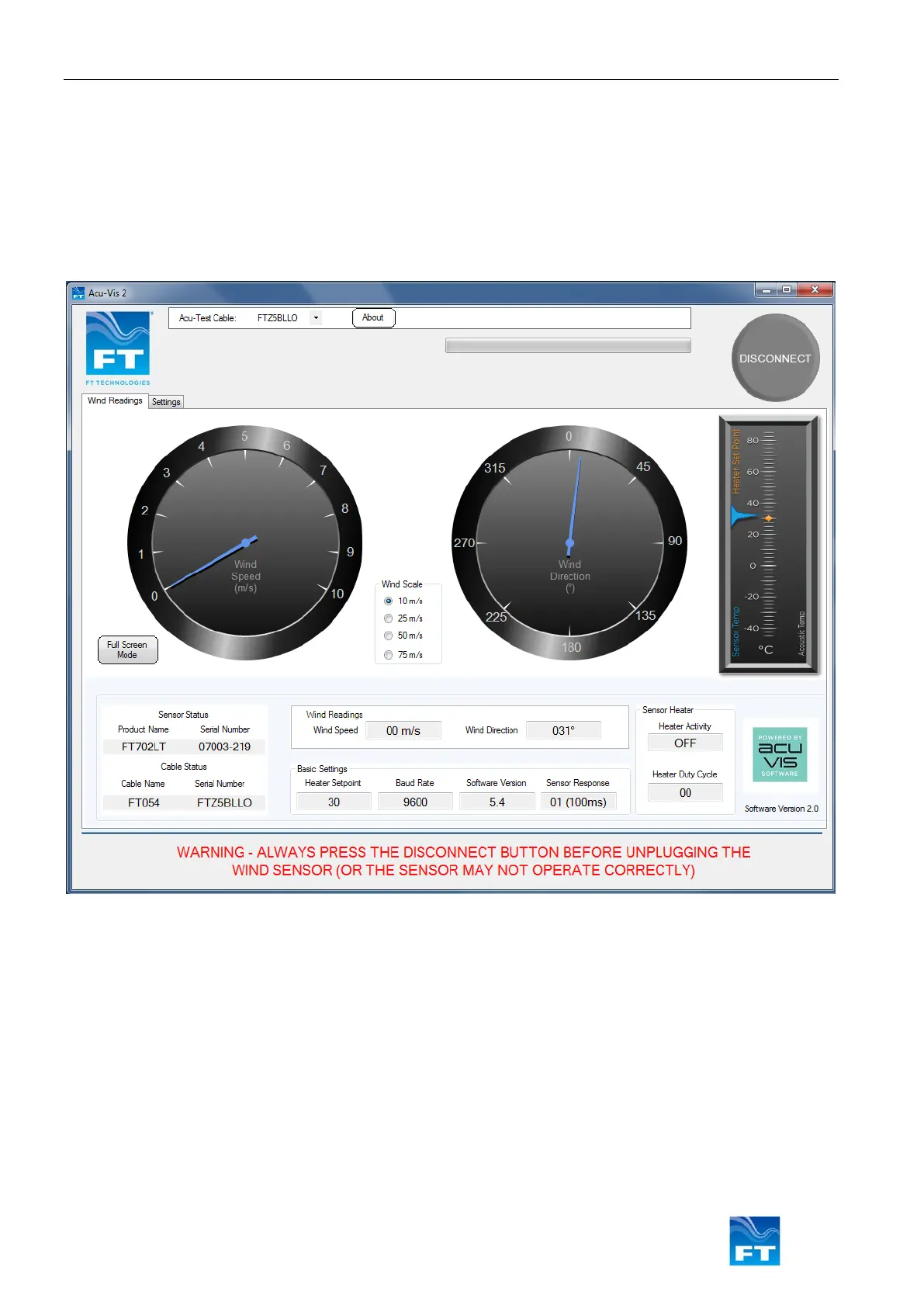

Figure 40: Acu-Vis 2.0 Live Display
