24

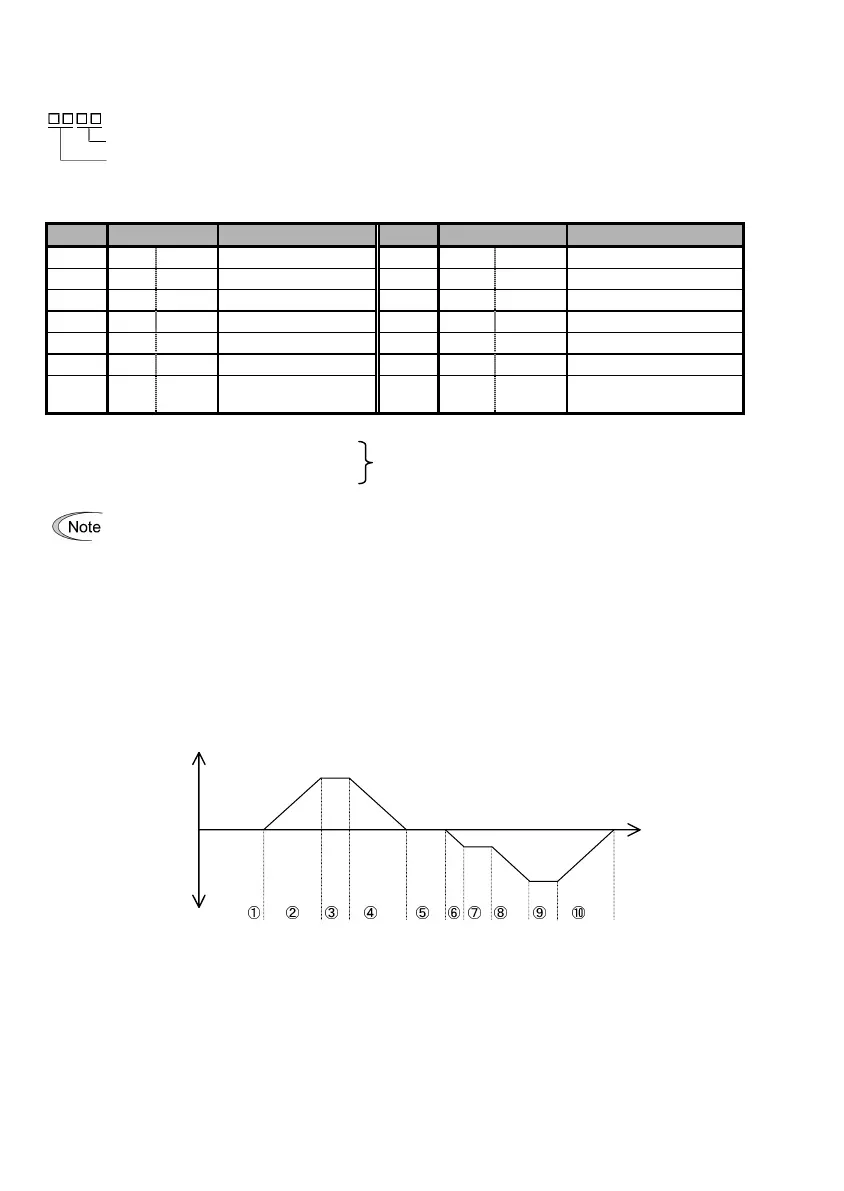

How to set o40 to o43 and o48 to o51
Specifying the function code type (shown in Table 7.2) and number in a 4-digit hexadecimal notation.
Table 7.2 Function Code Type
Type Type Code Function Code Type Type Code Function Code
S 2 02h Command/function data A 9 09h Motor 2 function
M 3 03h Monitored data o 10 0Ah Optional function
F 4 04h Fundamental function J 14 0Eh Application function
E 5 05h Terminal function y 15 0Fh Link function
C 6 06h Control function W 16 10h Monitor 2
P 7 07h Motor 1 function X 17 11h Alarm 1
H 8 08h
High performance
function
Z 18 12h Alarm 2
Example: For F26: F ⇒ Type Code 04
26 ⇒ 1A (hexadecimal)
041a
Once you have modified the settings for o40 to o43 and o48 to o51, be sure to restart both the inverte
and this option in order to validate the new settings.
7.3 An Example of Actual I/O Communication Data
Presented herein is an actual communication data in the format of Extended Speed Control Instance, the factory
default format.
(1) Driving pattern example
Given below is an example of the driving pattern for controlling the inverter. Its corresponding I/O data is
shown in (2) on the next page.
Figure 8 Driving Pattern
orwar
Reverse
Time (s)
1800 r/min
300 r/min
1800 r/min
Function code number (hexadecimal)
Function code type (in accordance with Table 7.2)
To Next Page
