2-8


(Note 1) Terminal screw type is listed in the table below.
Inverter type Screw type
FRN007E1E-2U
FRN010E1E-2U
Cross
FRN015E1E-2U
FRN020E1E-2U
Hxagon
FRN007E1E-4U
FRN010E1E-4U
Flat
FRN015E1E-4U
FRN020E1E-4U
Cross
(Note 2) Cables of EMC filter output are already connected to inverter input by factory default.

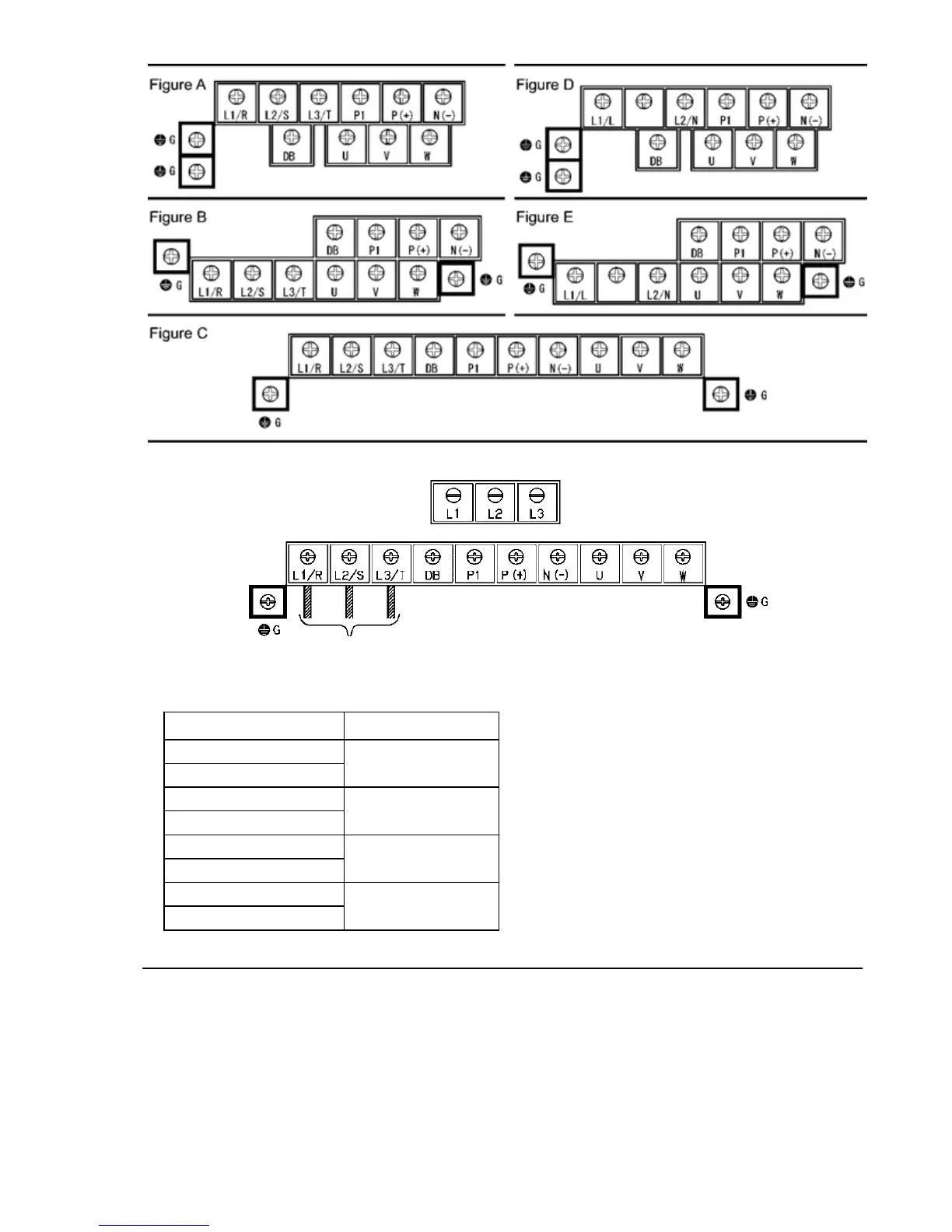

Figure F
(Note 1)
Filter output (Note 2)
