Product Overview
2

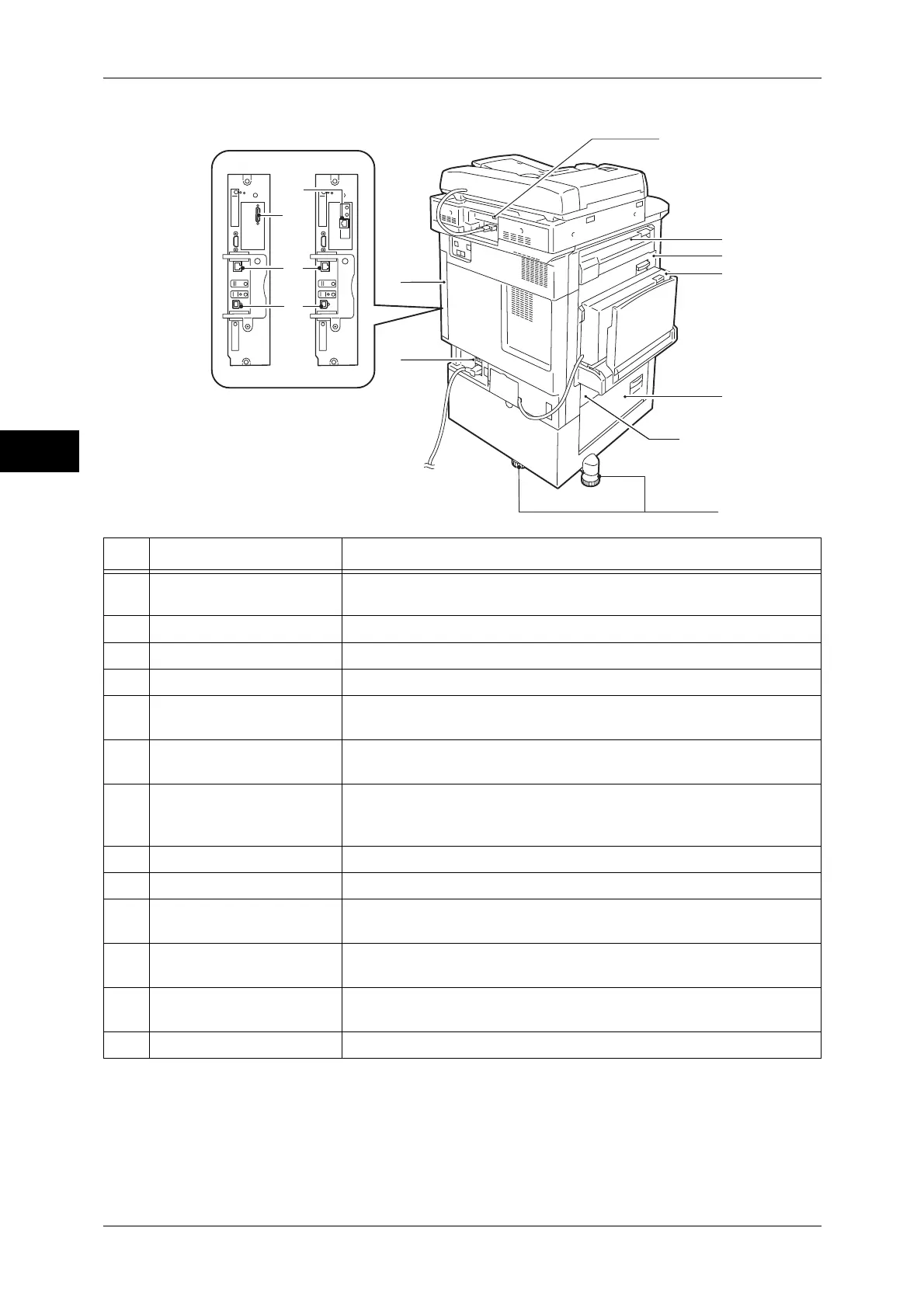

Left and rear view
No. Component Function
1 USB 2.0 interface
connector (optional)
Connects to the cable of a Memory Card Reader or a USB memory
device.
2 Cover E Open this cover to clear paper jams.
3 Cover A Open this cover to clear paper jams.
4 Cover D Open this cover to clear paper jams.
5 Cover C Open this cover to clear paper jams. When Tray 6 is installed, open this
cover after moving Tray 6 to the left.
6 Cover B Open this cover to clear paper jams. When Tray 6 is installed, open this
cover after moving Tray 6 to the left.
7 Adjusting foot Prevents the machine from toppling over. Move the machine to its
installation site and then rotate this adjuster in the clockwise direction
until it touches the floor.
8 RESET button
Automatically switches the machine off when a current leakage is detected.
9 Rear right cover Open this cover when connecting an interface cable.
10 Gigabit Ethernet interface
connector (optional)
Connects to a 1000BASE-T Ethernet interface cable.
11 Parallel interface connector
(optional)
Connects to a Centronics-conformed interface cable, and connects the
machine to a computer.
12 10BASE-T/100BASE-TX
connector
Connects to a network cable. When the Gigabit Ethernet board
(optional) is installed, this connector cannot be used.
13
USB 2.0 interface connector
Connects a USB cable for printing.
10
11
12
13
7
8
9
4
6
5
2
3
1
This view varies depending
on optional components.
