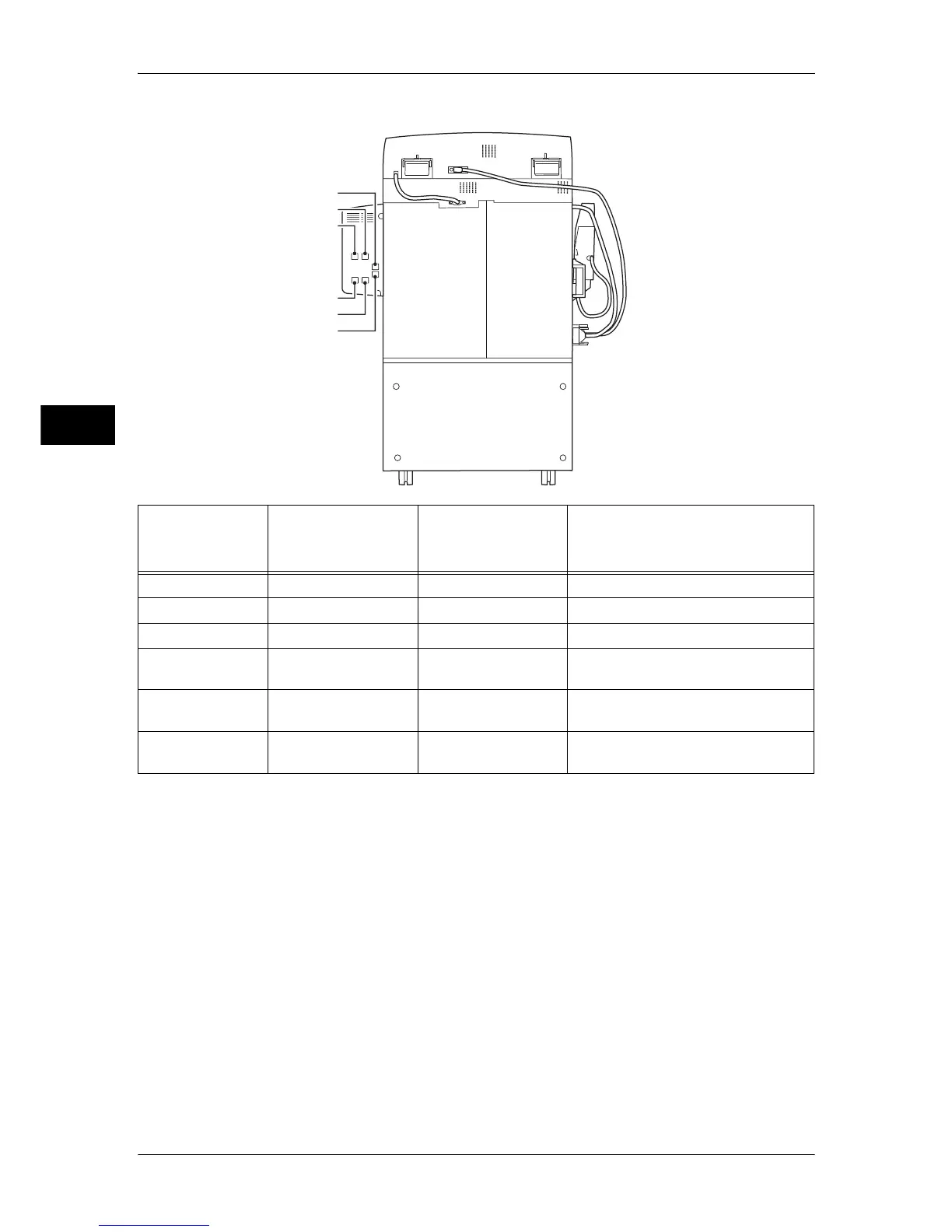

Telephone line connectors
Note • The Fax feature is not available for some models. An optional component is required. For
more information, contact our Customer Support Center.
• LINE2 and LINE3 are optional.
• Connector 3 normally has a cover on it. When you connect your telephone to the machine,
contact our Customer Support Center.
• Only the line connected to the LINE1 connector is available when you make a phone call
using the telephone connected to connector 3. (LINE2 and LINE3 are not available.)
Connector
No.
Name marked on
the cover of the
machine
Name displayed on
the touch screen
Function
1 - - Not available.
2 - - Not available.
3 TEL - Used to connect your telephone.
4 LINE1 Line 1 Use this connector to connect to a
telephone line.
5 LINE2 Line 2 Use this connector to connect to a
telephone line.
6 LINE3 Line 3 Use this connector to connect to a
telephone line.
5
1
2
3
4
6
