16 Appendix
570
Appendix
16
The scaling factor is determined according to the ACA and the paper size. The range
for the ACA for each paper size is as follows:
Unit: Plotter Unit
The maximum scaling factor is 210% of the advanced hard clip area for each paper size
and the minimum scaling factor is 22.5%.

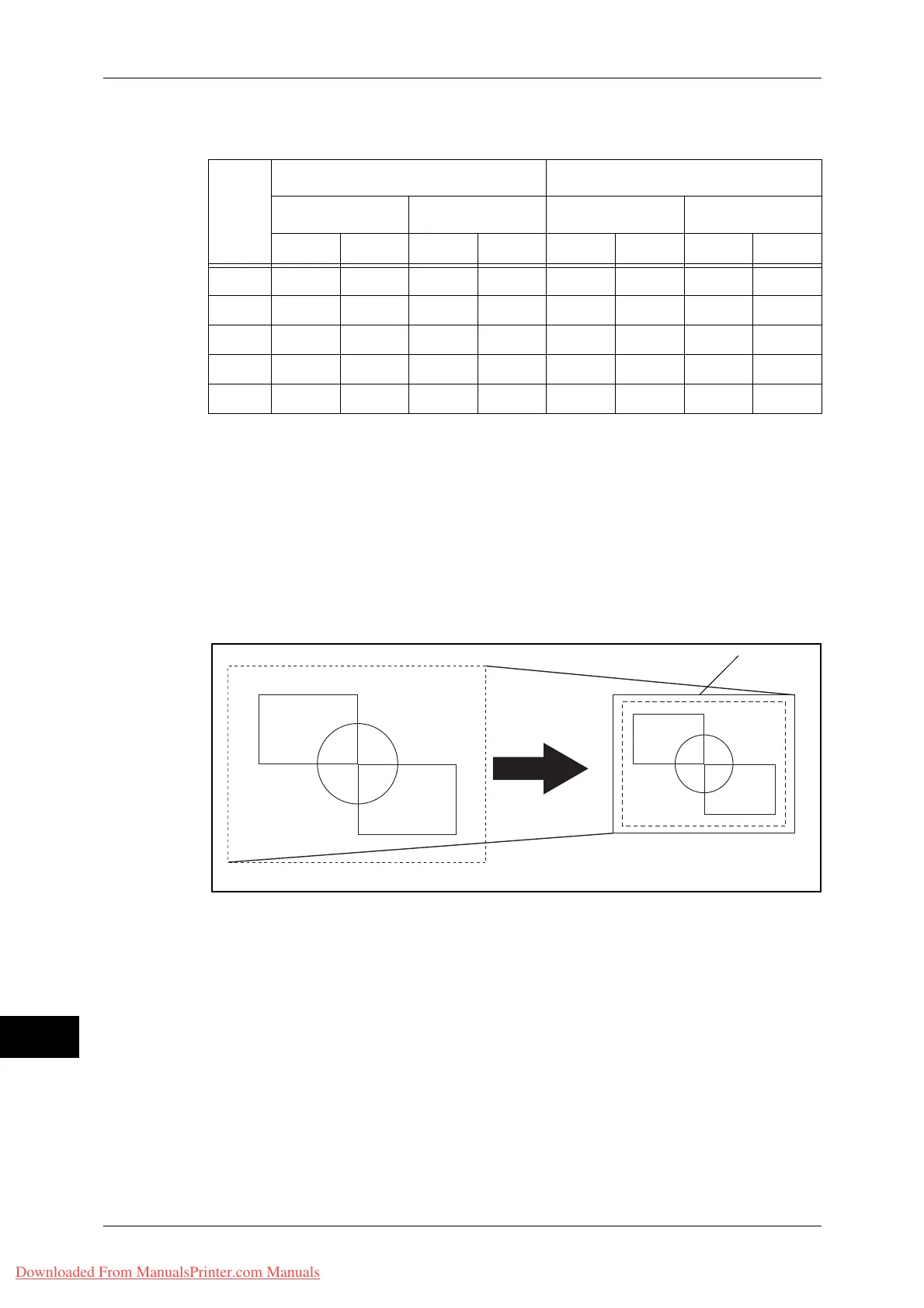

Examples of Combinations of Each Function
The following are examples showing the print results that can be achieved by
combining various functions.
îš„Document: Auto, Coordinate Origin: 0 Degrees, Scaling Mode: Paper Size,
Scaling: ON
Paper
Size
0 Degrees 90 Degrees
Min Value Max Value Min Value Max Value
P2x - P1x P2y - P1y P2x - P1x P2y - P1y P2x - P1x P2y - P1y P2x - P1x P2y - P1y
A3 7829 5485 73075 51200 5485 7829 51200 73075
A4 5485 3828 51200 35733 3828 5485 35733 51200
A5 3828 2648 35733 24720 2648 3828 44088 35733
B4 6762 4723 63120 44088 4723 6762 44088 63120
B5 4723 3297 44088 30773 3297 4723 30773 44088
Print Area
Document Size
Paper Size
