Machine Components
49
Product Overview
3

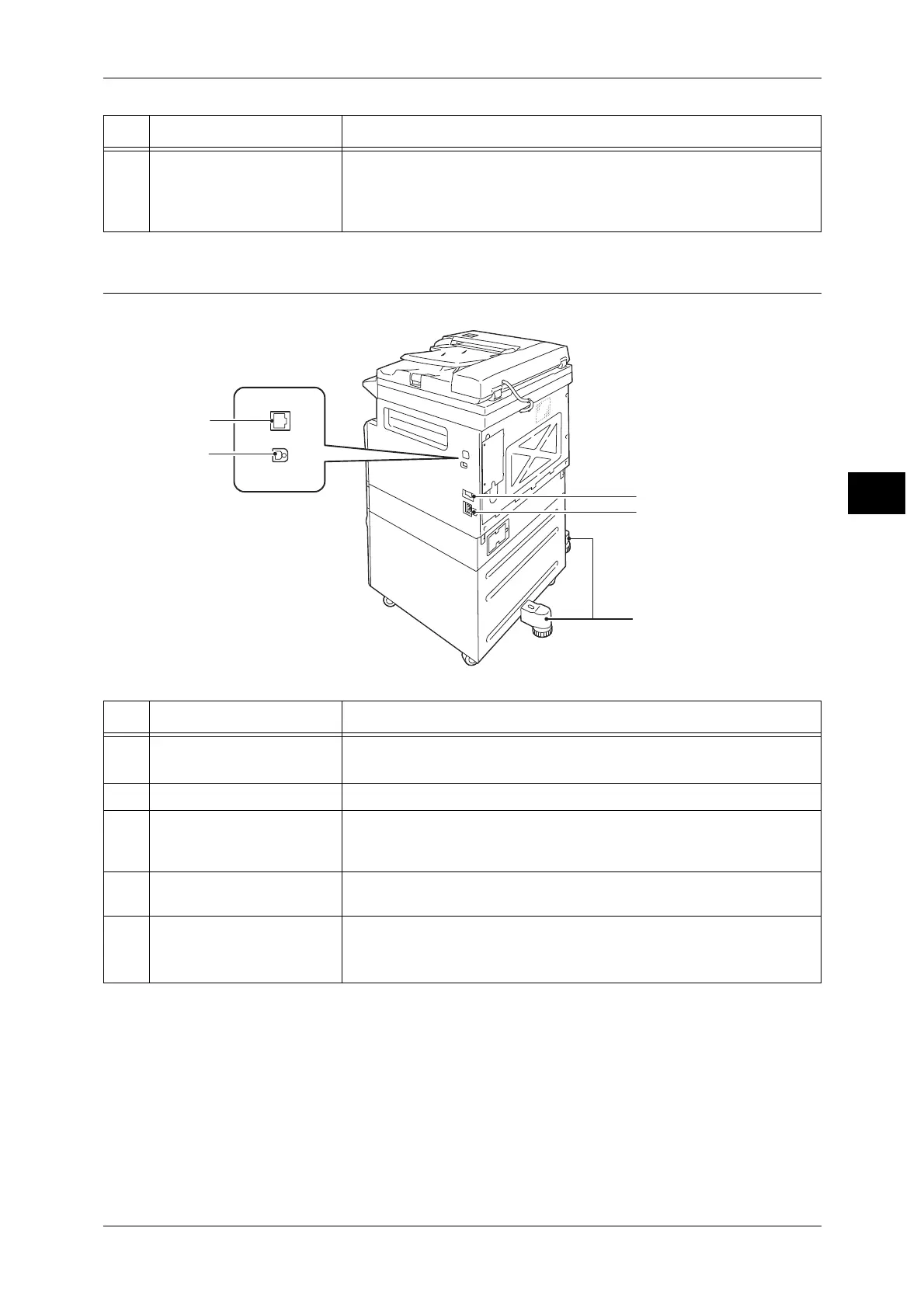

Right Side, Rear
12 Left cover [A] Open this cover to remove any jammed paper.
Note • When the machine works properly, this cover is locked. To open
this cover, make sure to exit Sleep mode and turn the machine's
power OFF.
No. Component Description
1 Power switch Switches the power of the machine on and off.
For more information, refer to "Power Source" (P.52).
2 Power cord connector Connects the power cord.
3 Adjusting foot Prevents the machine from toppling over. Move the machine to its
installation site and then rotate this adjuster in clockwise direction until it
touches a floor.
4 USB 1.1/2.0 interface
connector (Type B)
Connect a USB 1.1/2.0 cable.
5 10BASE-T/100BASE-TX
interface connector
Connect a network cable.
Note • The 10BASE-T/100BASE-TX interface connector is available when
the optional Simple Network Print Kit is installed.
No. Component Description
