Machine Status
59
Product Overview
3
Machine Status

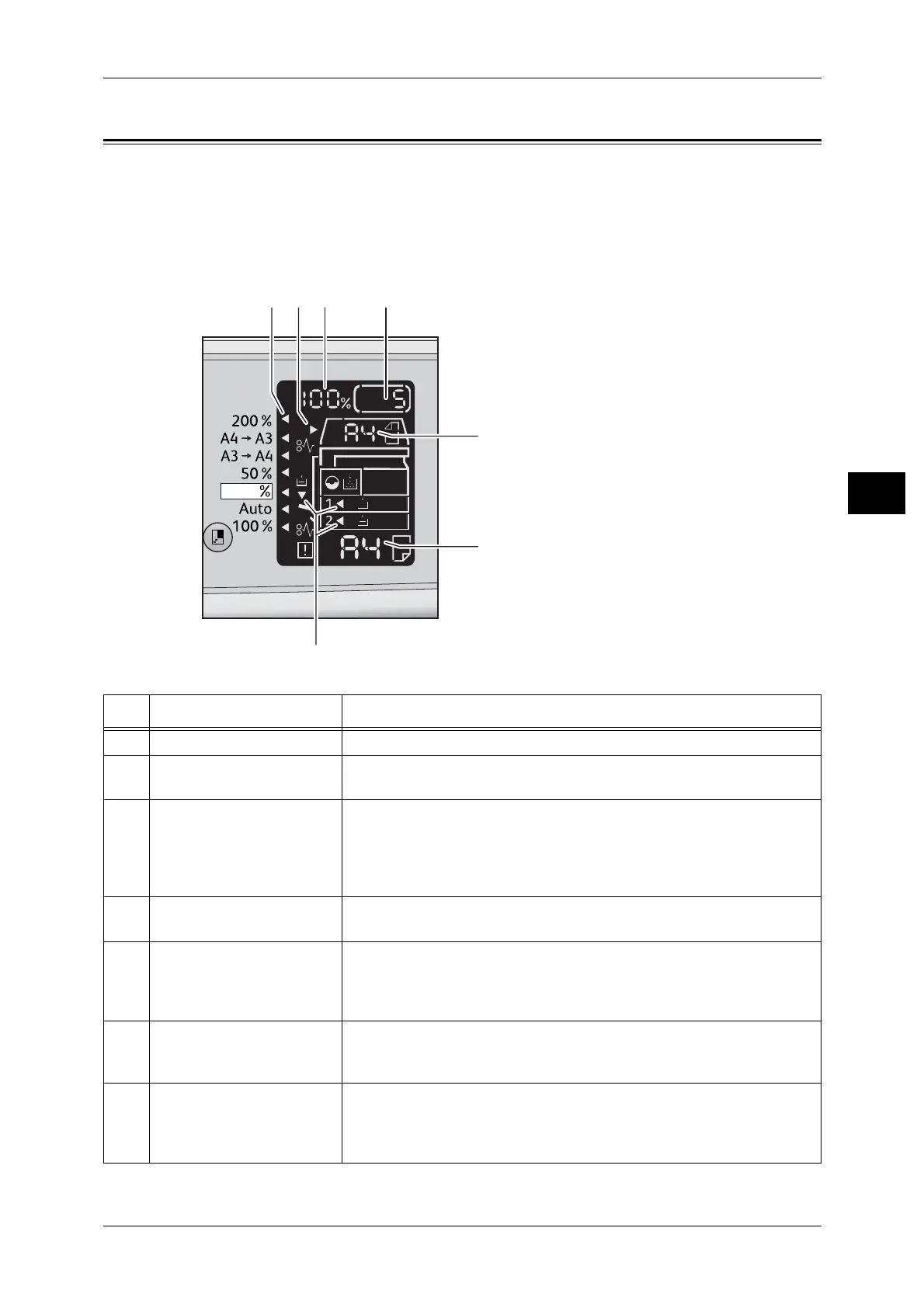

The Status Machine Diagram (mimic) consists of the following contents to display the
machine status.
This section provides detailed description of each indicator on the status machine
diagram (mimic).
No. Component Description
1 Reduce/Enlarge indicator Indicates the selected zoom ratio.
2 Document indicator This indicator is lit when a document is placed in the document feeder or
a document jam occurs.
3 Reduce/Enlarge display
area
Displays the specified zoom ratio within a range of 25 to 400%.
When the automatic detection is selected, [Aut] is displayed.
Also displays the total number of copied pages, User ID/System
Administrator ID, program number, and job type ([Prt] for Print, [Scn] for
Scan, and [Err] for Error).
4 Total Copy display area Displays the total number of copies.
Also displays a program number or an error code.
5 Original Size display area Displays the scanning size and orientation that are specified with the
<Original Size> button when the document glass is used. When the
document is placed in the document feeder, the automatic detection is
automatically set and [Aut] is displayed.
6 Paper Size display area Displays the size and the orientation of the paper loaded in the selected
tray. When the automatic detection is selected for the selected tray,
[Aut] is displayed.
7 Tray indicators Indicates the selected tray.
When the automatic detection is set for the selected tray, all tray
indicators are lit.
Also indicates the tray where the paper jam occurred.
