Paper Jams
601
Problem Solving
15

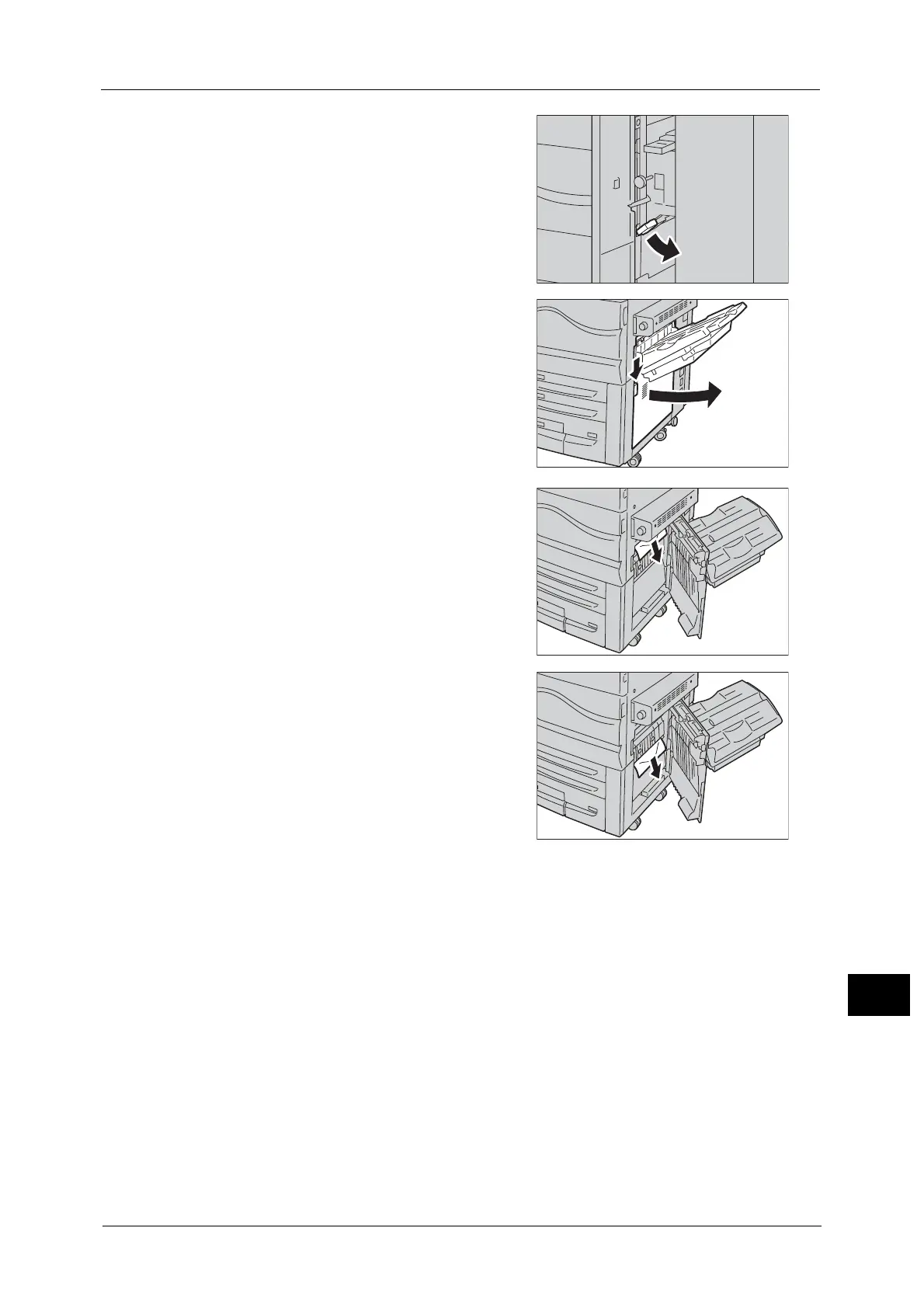

2 Move the handle [1a] to the right.
3 Open the bottom right door while pressing the
downward arrow button.
4 Remove the upper jammed paper.
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
5 Remove the lower jammed paper.
Note • If paper is torn, check for any torn pieces of
paper inside the machine.
6 Close the bottom right door.
Note • A message will be displayed and the machine will not operate if the bottom right door is even
slightly open.
7 Return the handle [1a] to its original position, and close the Transport Unit V1 front door.
Note • If the Transport Unit V1 front door is not completely closed, a message will appear and the machine
will not operate.
To Next Page
