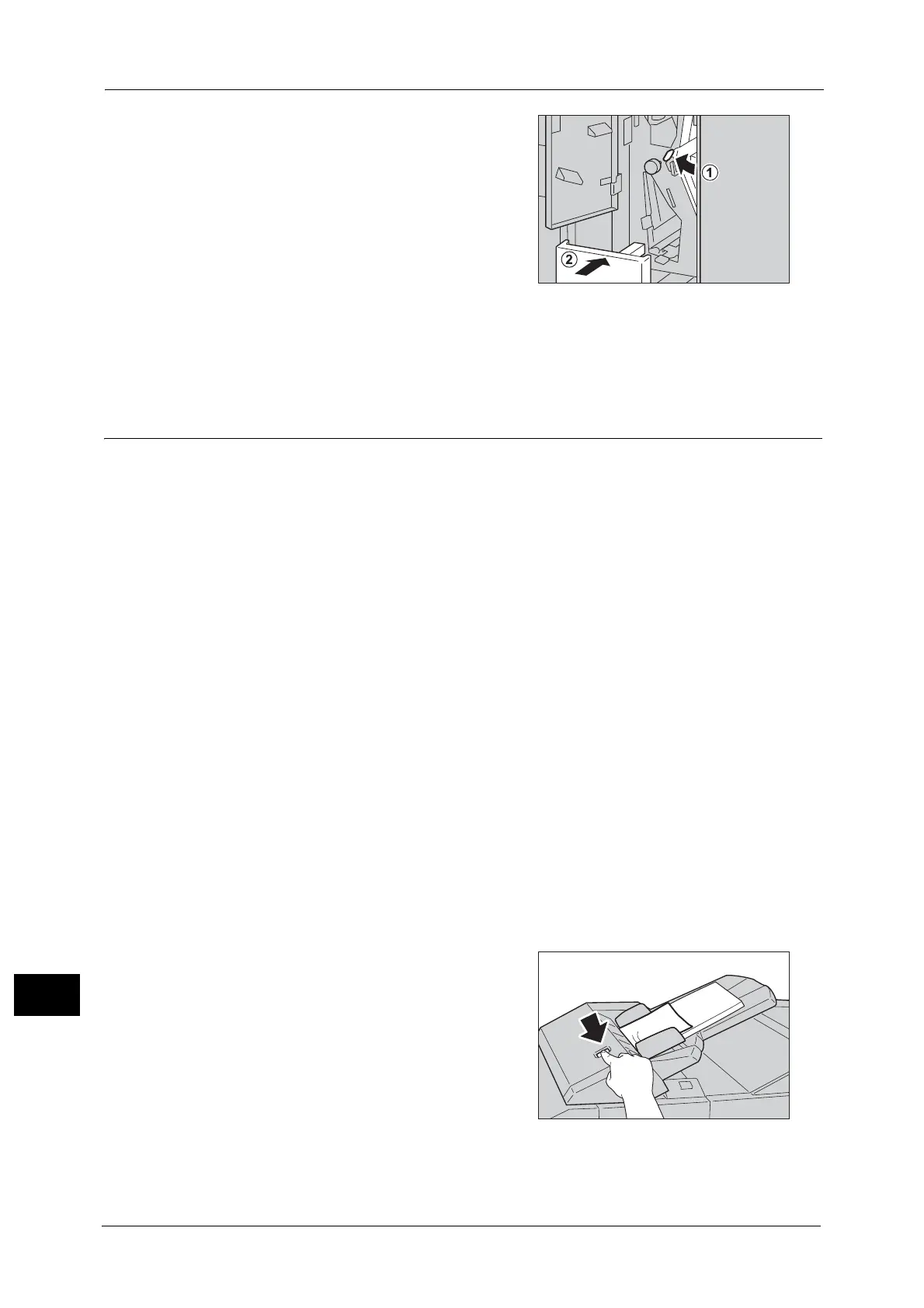

3 Return the handle [2g] (1), and push the tri-fold
output tray [2d] in (2).
4 Close the folder unit door of the Folder Unit CD1.
Note • A message will be displayed and the machine will not operate if the folder unit door of the Folder
Unit CD1 is even slightly open.
Paper jams in the Finisher D2-P with Booklet Maker
The following describes how to clear paper jams in the finisher when the Finisher D2-P with
Booklet Maker (optional) is installed.
This section describes how to clear paper jams at the following locations:
Paper Jams in Tray T1 (Inserter).............................................................................................................................................. 612
Paper Jams at the Lever 1a and the Knob 1c........................................................................................................................ 613
Paper Jams at the Lever 1d ....................................................................................................................................................... 614
Paper Jams at the Lever 1b ....................................................................................................................................................... 614
Paper Jams at the Lever 3b and 3d......................................................................................................................................... 615
Paper Jams at the Lever 3e and the Knob 3c........................................................................................................................ 616
Paper Jams at the Lever 3g and the Knob 3f ........................................................................................................................ 617
Paper Jams at the Lever 4b and the Knob 3a ....................................................................................................................... 617
Paper Jams at the Lever 2a and the Knob 3a when D2 Folder Unit is Installed .......................................................... 618
Paper Jams at the Lever 2b and the Knob 2c when D2 Folder Unit is Installed........................................................... 619
Paper Jams at the Knob 2c, the Levers 2e/2f, and the Tri-fold Output Tray 2d when D2 Folder Unit is Installed......... 620
Paper Jams at the Tri-fold Tray 2d and the Lever 2g when D2 Folder Unit is Installed............................................. 621
Paper Jams at the Unit 4 and Knob 4a for the Finisher D2-P with Booklet Maker......................................................621
Paper Jams at the Output Tray ................................................................................................................................................ 622
Paper Jams at the Finisher Tray ............................................................................................................................................... 622
Paper Jams at the Booklet Output Tray for the Finisher D2-P with Booklet Maker.....................................................623
Paper Jams in Tray T1 (Inserter)
The following describes how to clear paper jams in Tray T1 (Inserter).
1 Press the Cover button.
