Auto Alignment Adjustment Settings
679
Appendix
16
- Horizontal position: Adjust the position of of a background sheet and the position of of a
measurement sheet as shown below.
3 Reposition calibration chart and background sheet to scan the second to fourth locations.
After scanning has been completed at the correct position in each of the front, back, top,
and bottom, sides, remove the calibration chart and background sheet, and then close the
document cover.
Note • You can retry scanning by selecting [Start] as many times as you want until a calibration chart is
scanned at the correct positions.
• The data, which is scanned at the top and bottom portions of each of the front and back sides of a
calibration chart (four locations in total), is used as the 1-time measurement data. When scanning
multiple calibration charts, you can select [Start] to continuously carry out scanning.
4 Select [Start]. Auto Alignment Adjustment
starts.
5 After finishing Auto Alignment Adjustment, the
tray setting screen is displayed. Select a tray to
assign the adjustment settings.
For information on how to assign alignment adjustment
settings, refer to "Alignment Adjustment Setup" (P.680).

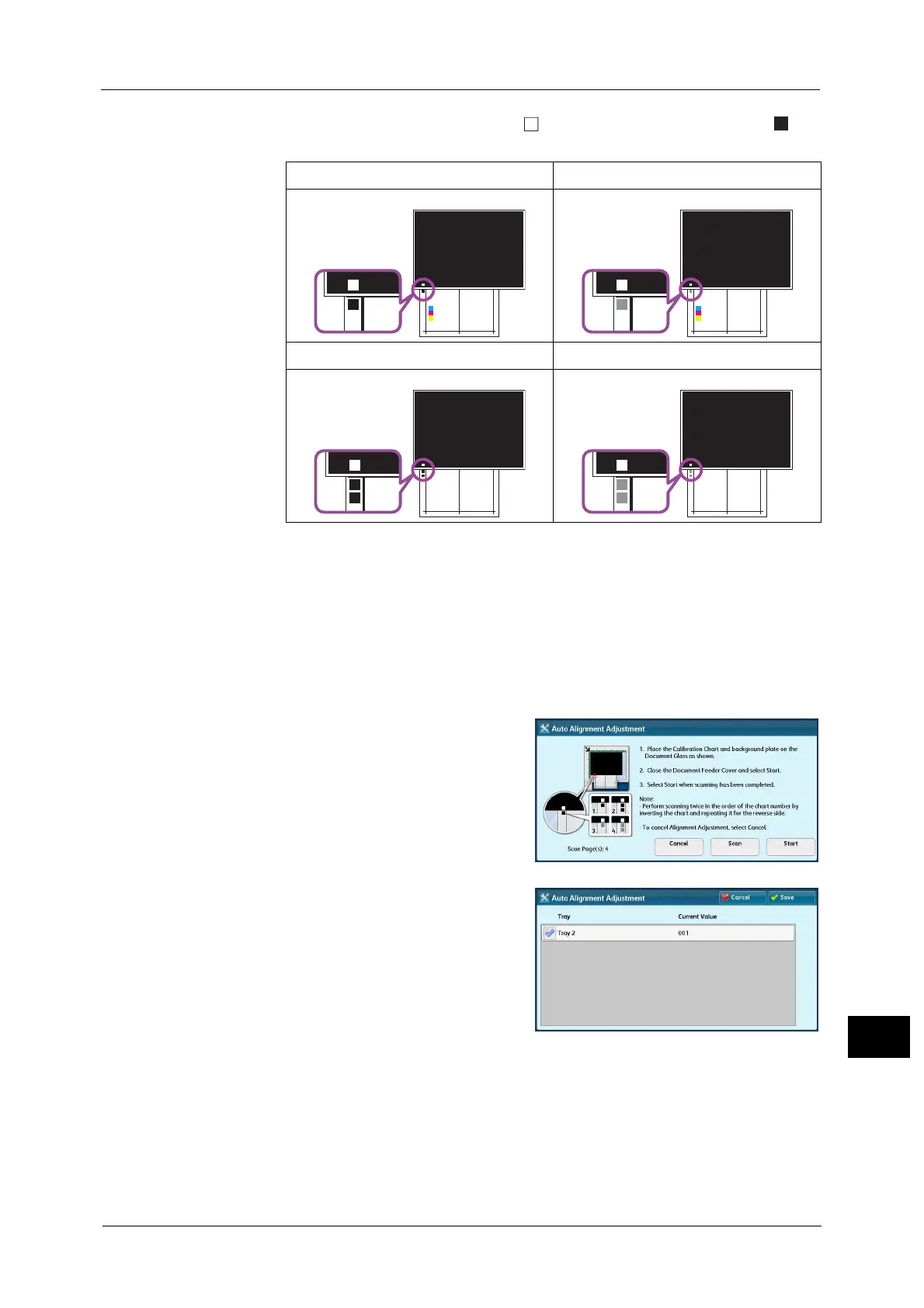

Upper part of the front page Upper part of the back page
Lower part of the front page Lower part of the back page
