7.1 Replacing Consumables 167

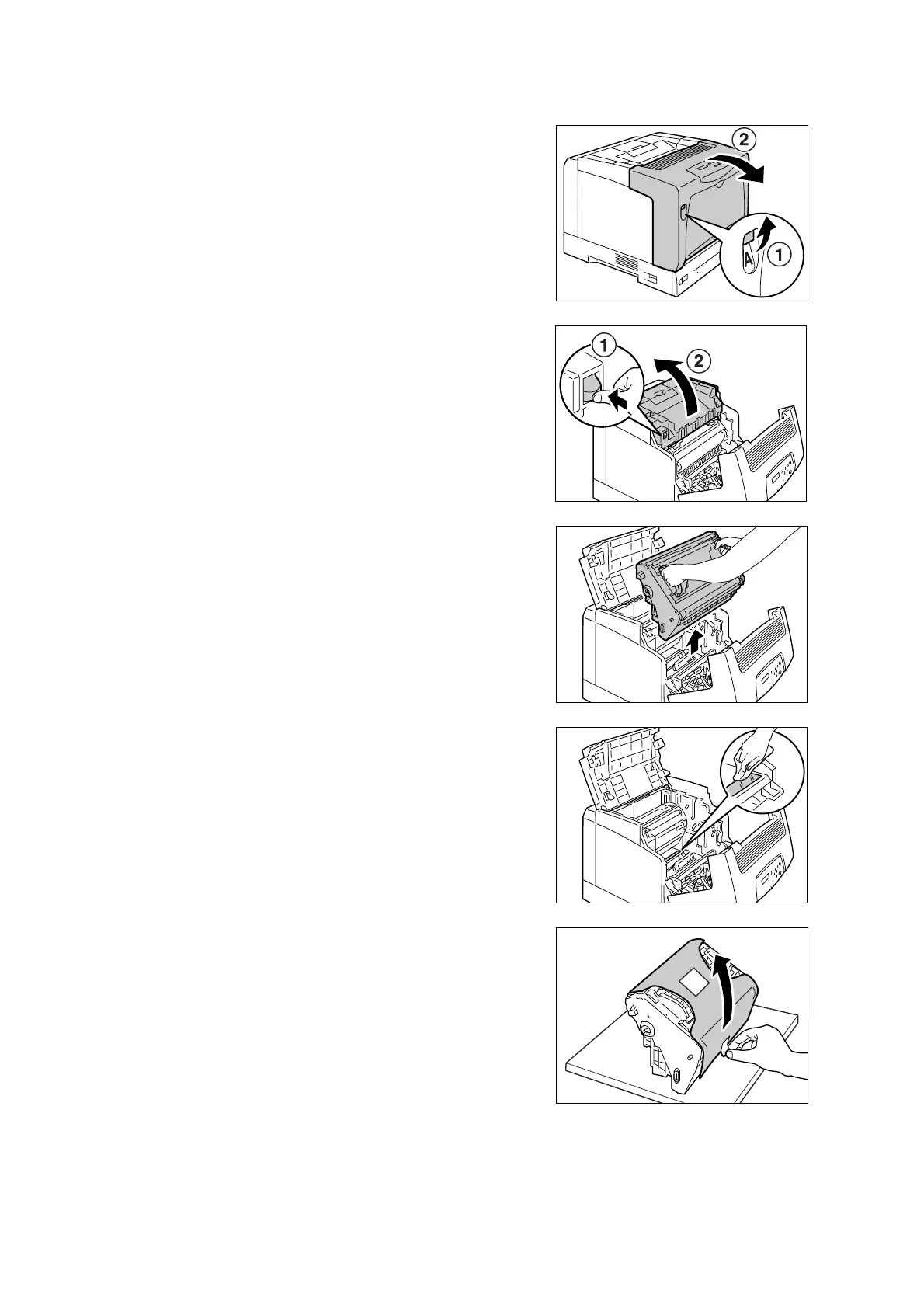

2. Push up the lever A and open the front
cover.
3. Press the orange button shown in the figure
and open the output tray cover.
4. Hold the drum cartridge by the handles with
both hands, and lift it straight up.
5. Gently wipe the glass window at the back of
the cartridge slot with a soft dry cloth.
Important
• Do not touch the interior of the printer unless
specifically instructed. Some parts may be hot.
6. Remove the new drum cartridge out of the
box and take off the protective sheet.
Important
• Do not touch the surface of the intermediate transfer
belt (black portion on the bottom) or the photosensitive
drum (blue portion on the back side). Scratches, dirt,
or oil from your hands can decrease print quality.
