206 7 Maintenance

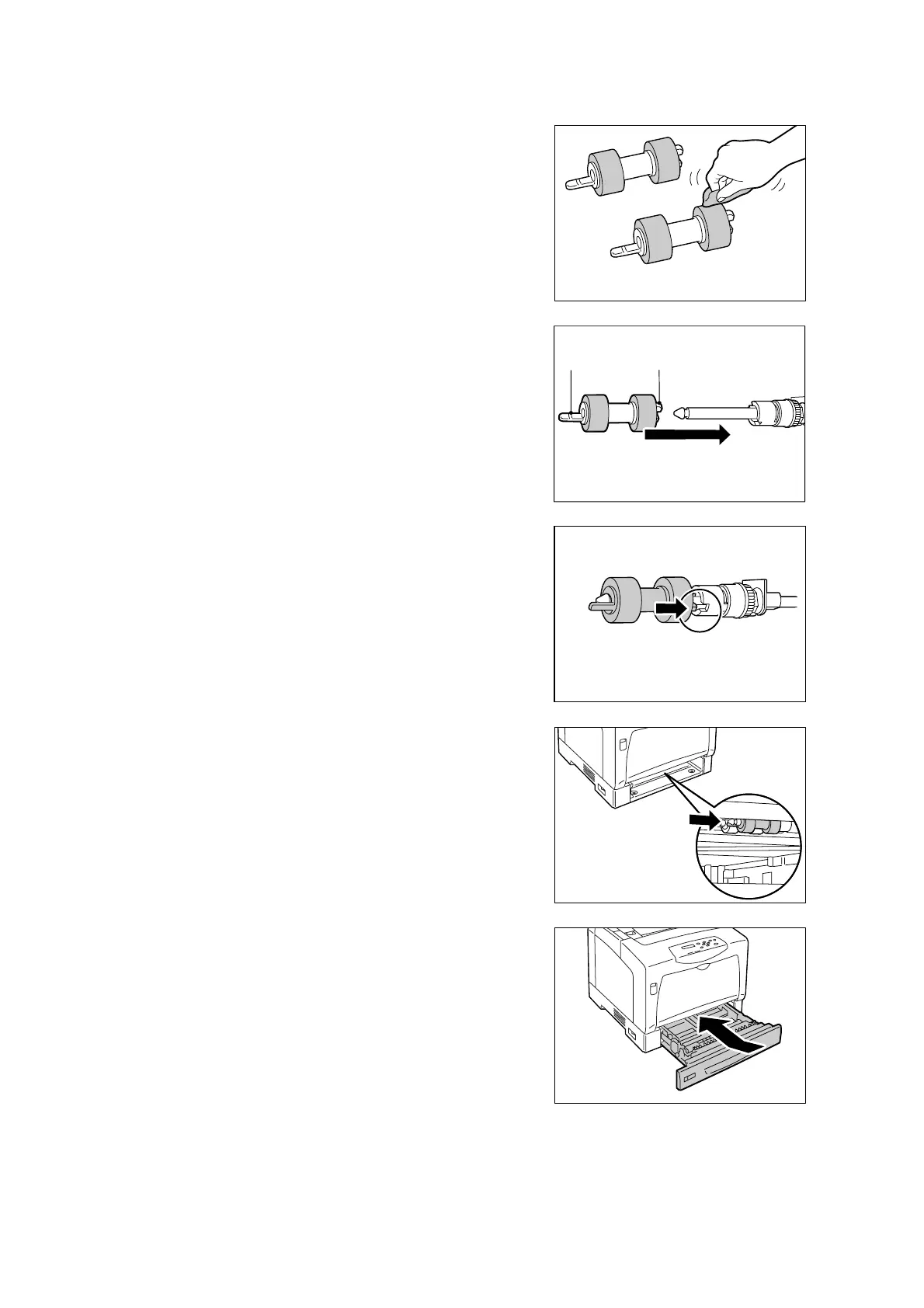

6. Wipe the rubber part of both feed rolls
thoroughly with a soft, firmly wrung cloth
moistened with water.
7. After cleaning the feed rolls, place them
back on the printer. Place one of the feed
rolls on the back shaft from the side with
the short tab first.
8. Align the short tab of the feed roll with the
indentation on the shaft, and push the feed
roll firmly onto the shaft.
9. Place other feed roll back on the front shaft
in the same manner.
10. Push the tray all the way into the printer.
Important
• When inserting the tray, be careful not to get your
fingers caught between the tray and the printer or
other tray (if the optional sheet feeders are installed).
long tab
short tab
