APPENDIXES
Appendix -5
n Timing chart

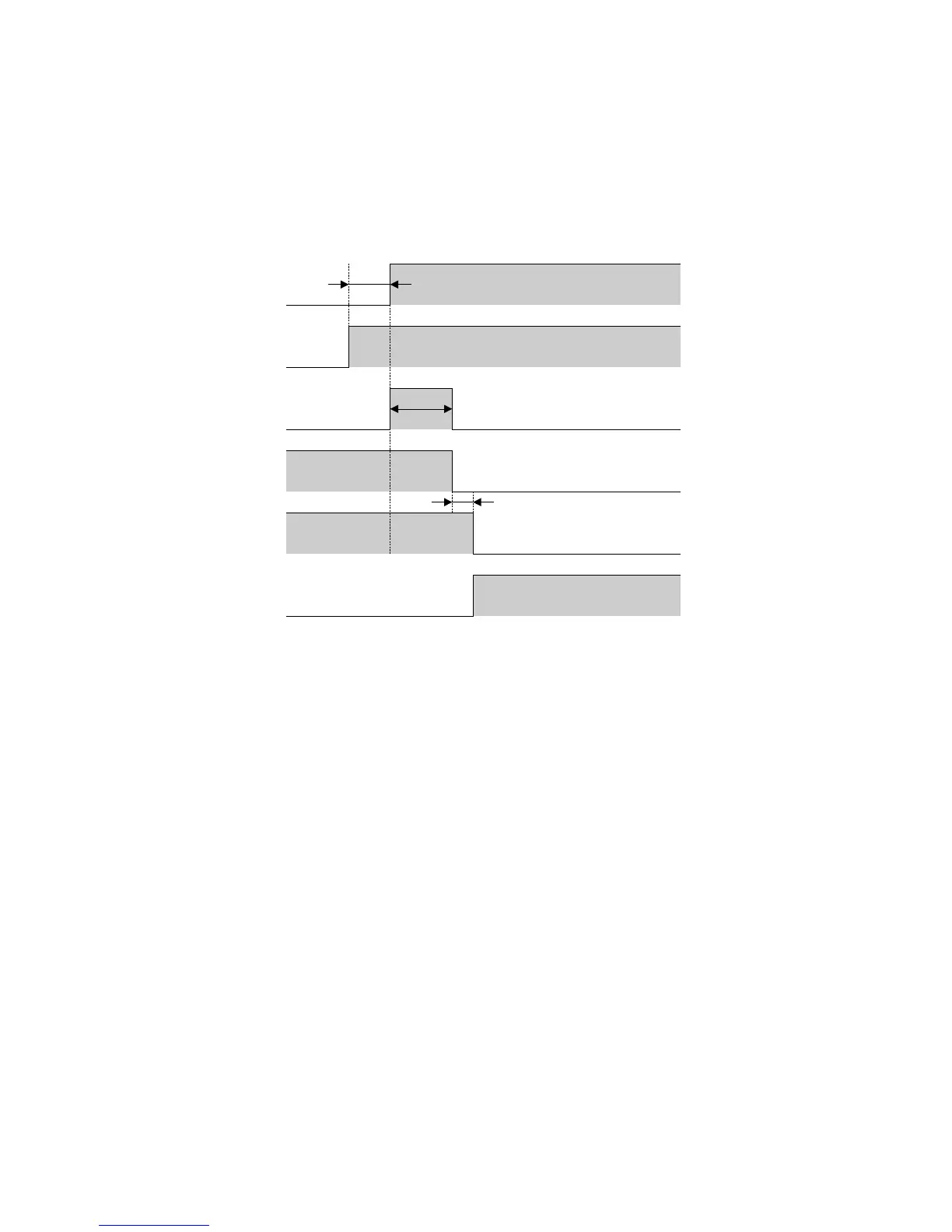

Power-on timing chart
* Avoid turning on and off repeatedly.
Wait at least one minute before turning the power on again after turning it off.
Internal control power
Main power supply
Amplifier initialization
RUN
RDY
Pulse string command
700 ms
About 1 sec.
About 4 ms
ON
ON
OFF
OFF
Not supplied Supplied
No energization Energization
No energization Energization
