10600690747, edition 1 3

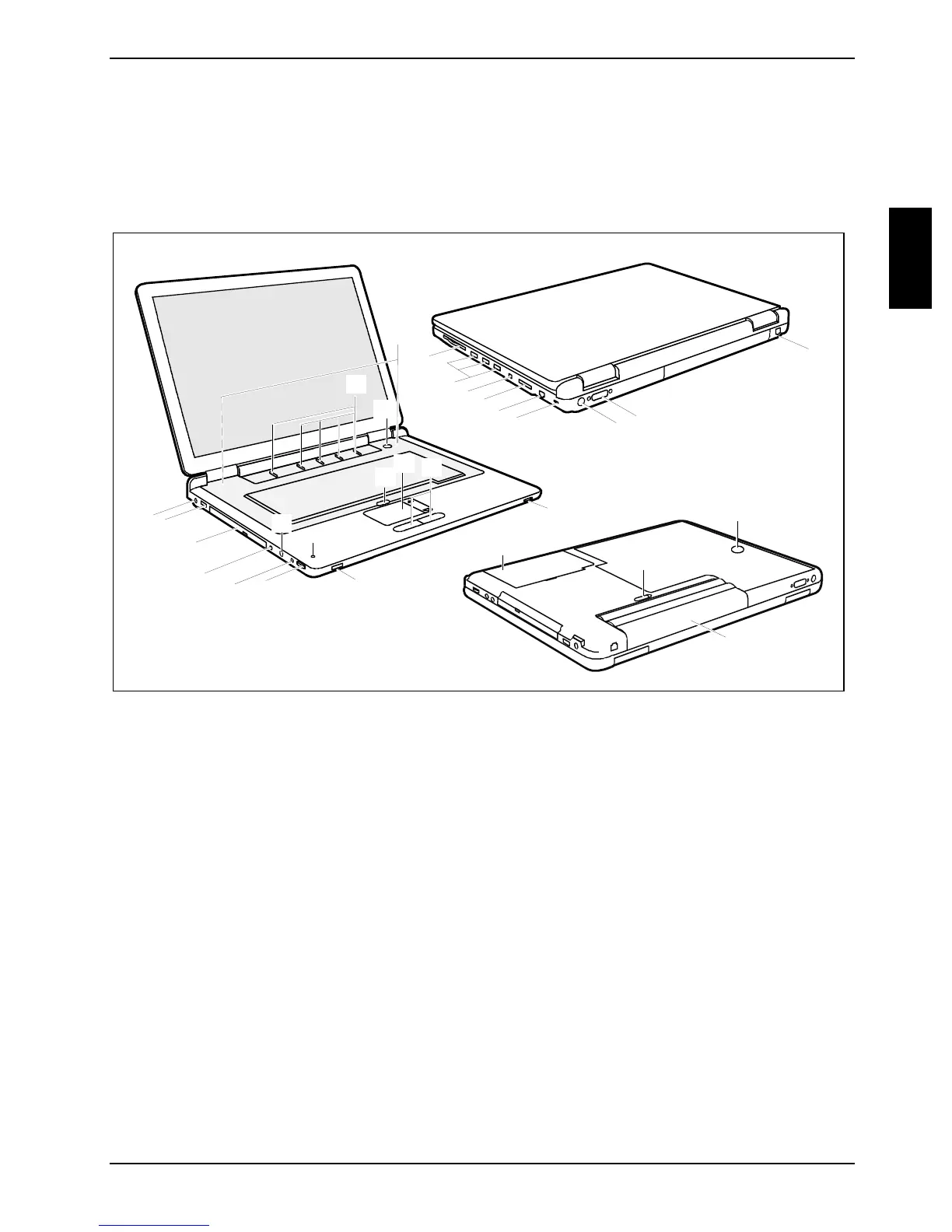

Ports and operating elements
This chapter presents the individual hardware components of your notebook. You can obtain an
overview of the displays and connections of the notebook. Please familiarise yourself with these
components before you start to work with your notebook.
1
2
3
4
5
6
7
9
11
12
13
14
21
22
23
24
26
27
20
16
17
18
8
19
10
15
28
29
25
1 = Modem port
2 = DVI-I connector
3 = S-Video out socket
4 = Kensington Lock
5 = LAN port
6 = Memory card slot
7 = FireWire port
8 = USB ports
9 = ExpressCard slot
10 = Bass loudspeaker (subwoofer)
11 = Battery
12 = Battery release latch
13 = Hard disk
14 = On/Off switch for wireless LAN/ Bluetooth
15 = Touchpad buttons
16 = Touchpad
17 = ON/OFF switch for touchpad
18 = Built-in loudspeakers
19 = ON/OFF switch of the Notebook
20 = Easy Launch keys
21 = CIR interface
22 = Built-in microphone
23 = Volume control
24 = Microphone jack
25 = Headphone port/SPDIF
(Loudspeaker connector/Line out)
26 = Line-In
27 = CD/DVD drive
28 = USB port
29 = DC jack (DC IN)
