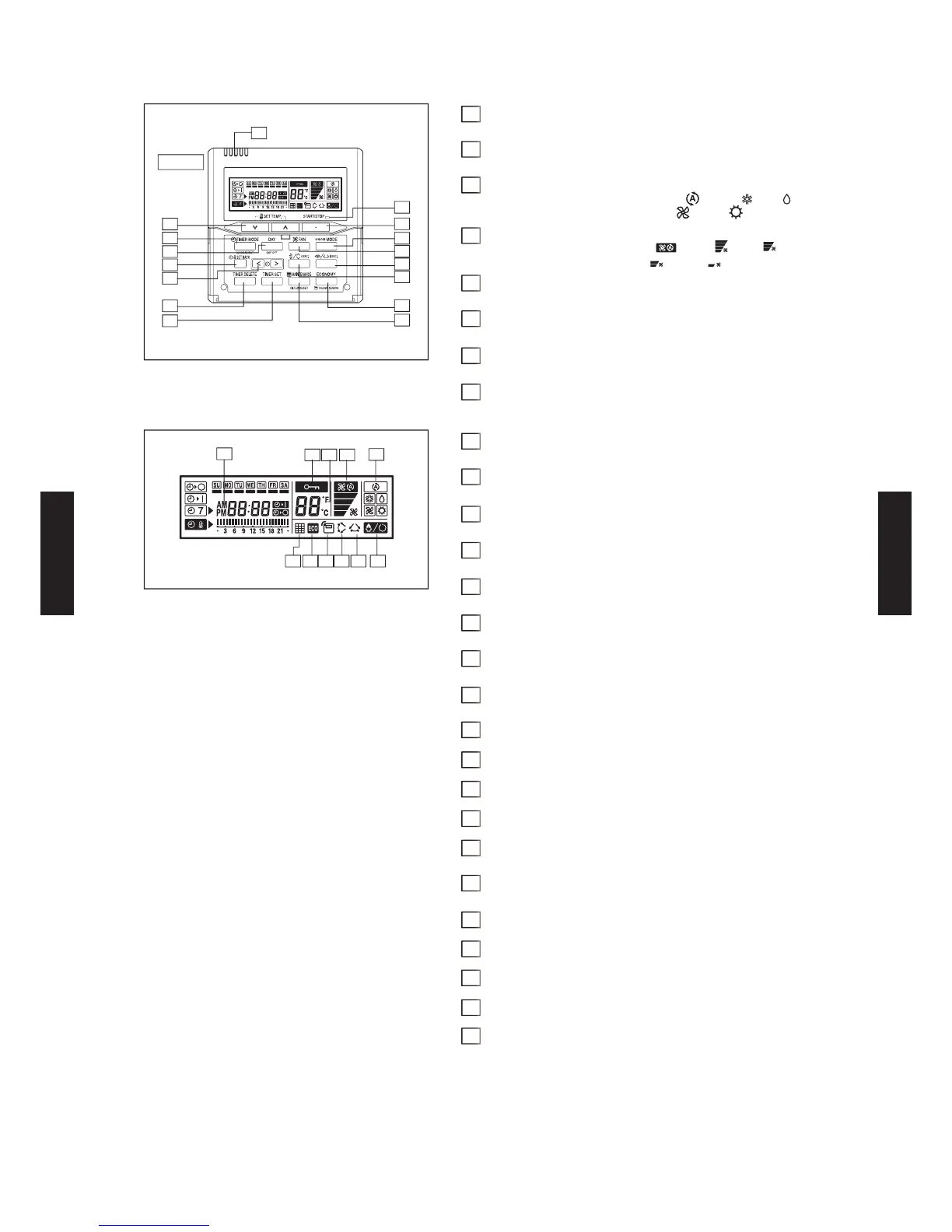

5. CONTROL SYSTEM
START/STOP button1
Pressed to start and stop operation.
SET TEMP. button2
Selects the setting temperature.
MODE button3
Selects the operating mode (AUTO , COOL , DRY ,
FAN , HEAT ).
FAN button4
Selects the fan speed (AUTO , HIGH
,
MED ,
LOW
, QUIET ).
ertica airow direction and swing button5
Press for two seconds to change the swing mode
orionta airow direction and swing button6
Press for two seconds to change the swing mode.
Built-in thermo sensor7
Detects the room temperature.
TIMER MODE (CLOCK ADJUST) button8
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY TIMER)
Sets the current time.
DAY (DAY OFF) button9
Temporarily cancels one day timer.
SET BACK button10
Pressed to select the set back timer.
Set time button11
Pressed to set time.
TIMER DELETE button12
Deletes the weekly timer schedule.
TIMER SET button13
Sets the date, hour, minute and on-off time.
ECONOMY (THERMO SENSOR) button14
FILTER RESET button15
Operation lamp16
Lights during operation and when the timer is on.
Timer and clock indicator17
Operation mode indicator18
Fan speed indicator19
Operation lock indicator20
Temperature indicator21
Displayed temperature is set temperature.
Defrost indicator22
Indicates oil recovery and defrosting operation.
Vertical swing indicator23
Horizontal swing indicator24
Economy indicator25
Thermo sensor indicator26
Filter indicator27
FUNCTIONS

Display panel
NOTE: Some button operations may not be available for all units
or systems. For details, please see operation manual.
7
Display
13
12
11
10
2
8
9
16
15
14
1
3
5
4
6
18
17
1920 21
2223 242527 26
- (05 - 26) -
CONTROL SYSTEM CONTROL SYSTEM

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
