6. SYSTEM DESIGN
FUNCTION SETTING

After verifying that the system is normal, press the MODE/EXIT button (SW931) once.1)
LED961 LED962
LED961 LED962
Press the SELECT button (SW932), and display “F2” on the LED962.2)

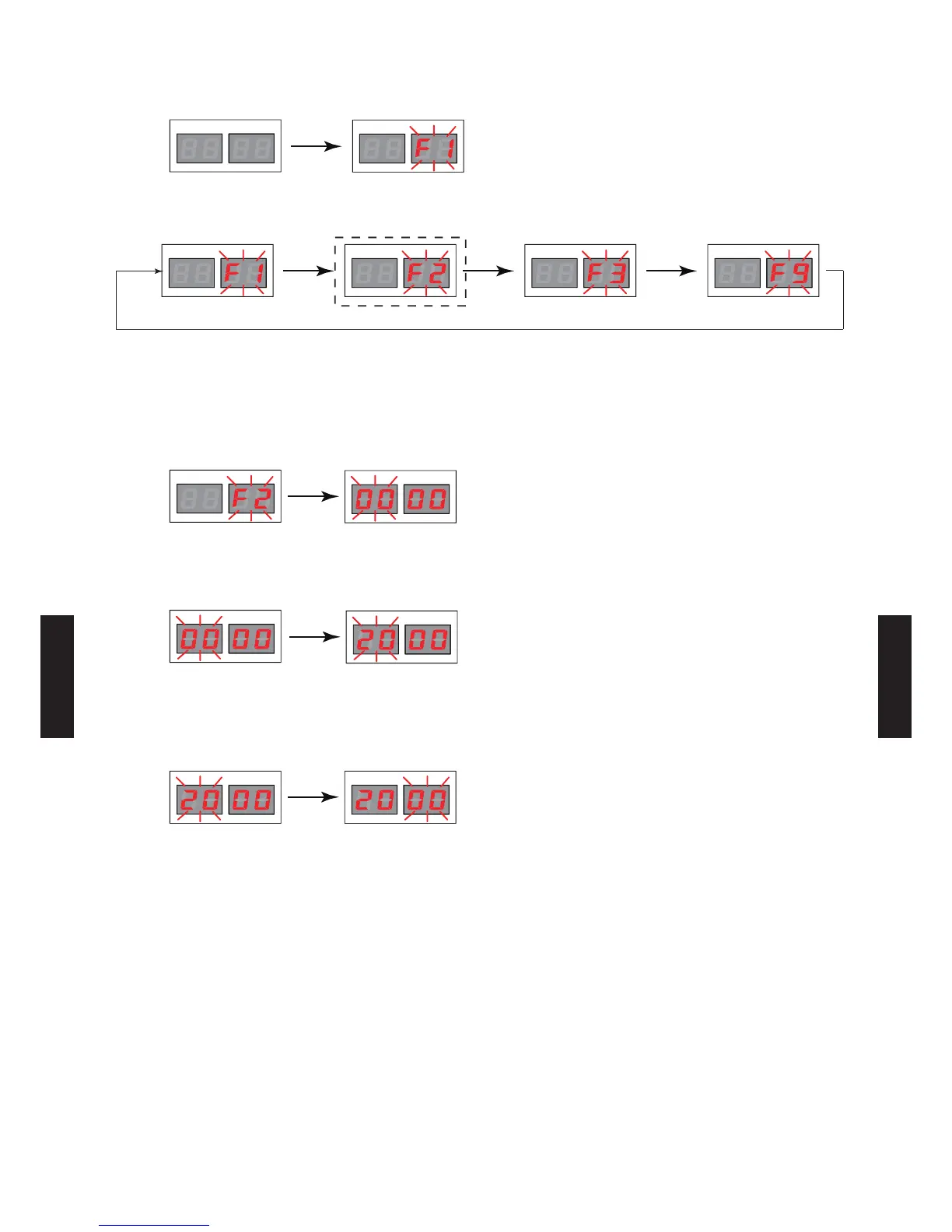

LED961 LED962LED961 LED962 LED961 LED962 LED961 LED962
*1 *1
(Monitoring mode) (Setting mode) (Function mode) (Error history mode)
(The display of the LED962 changes each time when the SELECT button is pressed.)
*1:The “F1”and “F9” modes are used for maintenance, so do not set them in regular operation.
When “F2” appears on the LED962, press the ENTER button (SW933).3)
 ashing dispa appears on the  and the ashing dispa o  on the 
changes to the illuminated display of a number.
LED961 LED962
LED961 LED962
Referring to the Settings List shown below, press the SELECT button (SW932) and display the 4)
code number of the mode you want to set on the LED961.
Ex.) To select switching between Forced Stop and Emergency Stop
LED961 LED962
LED961 LED962
et press the  button  and conr the seection o the ode ou want to
set.
 ashing dispa on the  changes to an iuinated dispa and an iuinated dispa
on the  changes to a ashing dispa.
LED961 LED962 LED961 LED962
- (06 - 53) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
