6. SYSTEM DESIGN

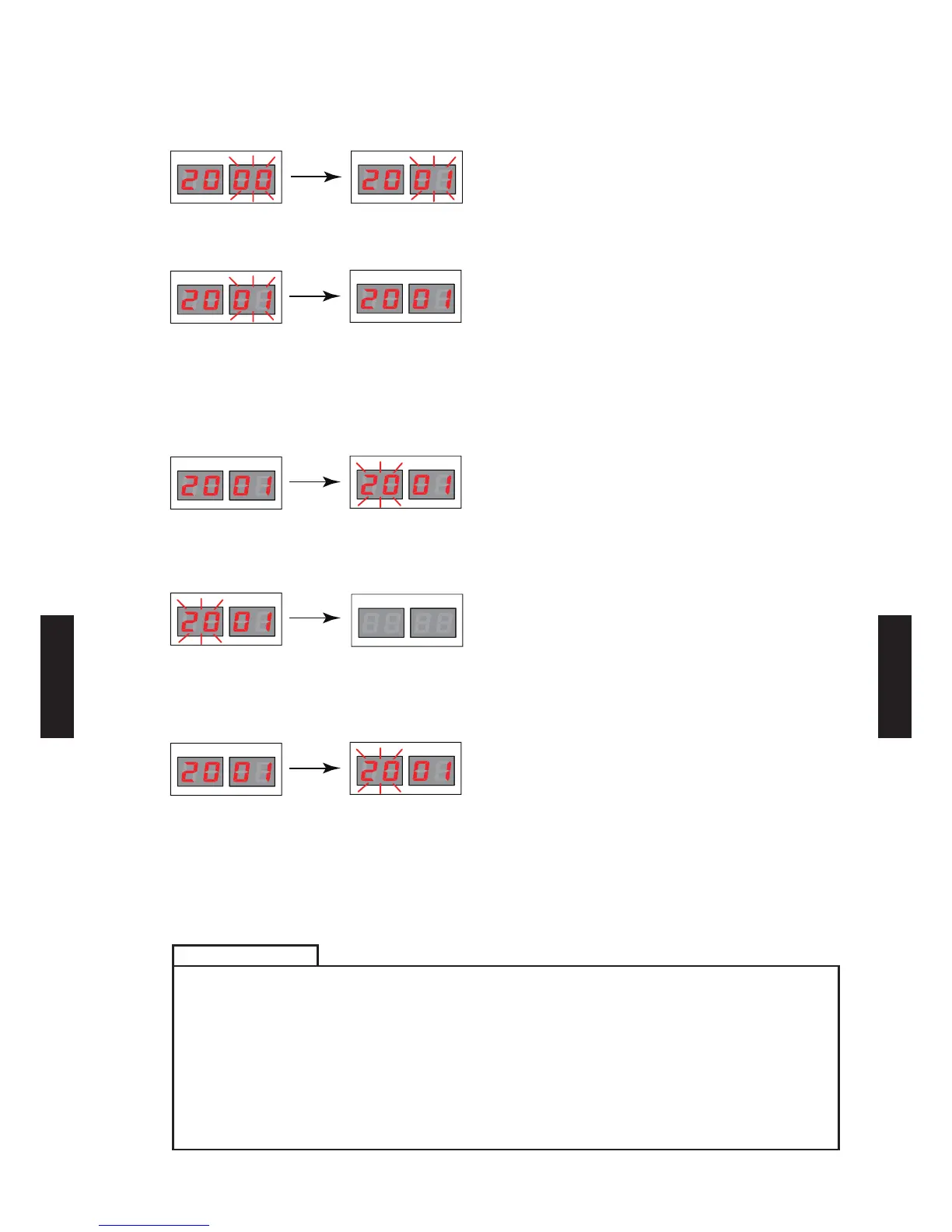

Again, referring to the Settings List shown below, press the SELECT button (SW932), and 5)
display the code number of the function you want to set on the LED962.
Ex.) To select the Emergency Stop function
LED961 LED962 LED961 LED962
et press the  button  and conr the seection o the unction ou want to
set.
LED961 LED962
LED961 LED962
 ashing dispa on the  changes to an iuinated dispa.
This completes FUNCTION SETTING.
To exit FUNCTION SETTING, press the ENTER button (SW933) in the setting completed 6)
status shown in step 5) above.
   seconds ater een i  button is not pressed   changes to a ashing dispa
automatically.
LED961 LED962
LED961 LED962
*2
Then, press the MODE/EXIT button (SW931) to exit FUNCTION SETTING MODE.
LED961 LED962
LED961 LED962
To set another function, press the ENTER button (SW933) in the setting completed status 7)
shown in step 5) above.
LED961 LED962
LED961 LED962
Repeat steps 4) and 5) above to set other functions.
When all settings are complete, perform the operation described in step 6) above to exit.
RESET THE POWER AFTER SETTING UP FUNCTION OF

OUTDOOR UNIT
Important
If the reset is not performed, function can not be read in normally.

After all the functions have been set, the circuit breaker needs to be switched off

for at least 2 minutes.
After the 2 minutes has passed, power can be restored.
The set function is stored in the PCB and will remain in memory even when the

power is turned off.
However setting function is effective after power reset.
Record the function set in the outdoor unit on a label, etc., and afx the label to the
unit so it can be used for after-sales service operations.
- (06 - 54) -
SYSTEM DESIGN SYSTEM DESIGN

Fujitsu ABHG18LVTB Specifications

General

Type	Air conditioner indoor unit
Timer	Yes
Multi-split	-
Product color	White
Gas hose diameter	12.7 mm
Hose length (max)	25 m
Drain hose diameter	25 mm
Liquid hose diameter	6.35 mm
Refrigerating medium	R410A
Dehumidifying capacity	2 l/h
Air conditioner functions	Cooling, Heating
Cooling capacity in watts (max)	5900 W
Cooling capacity in watts (min)	900 W
Heating capacity in watts (max)	7500 W
Cooling capacity in watts (nominal)	5200 W
Cooling energy efficiency (EER, W/W)	3.21
Heating energy efficiency (COP, W/W)	3.61
Operating temperature (cooling) (T-T)	-15 - 46 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Seasonal efficiency rating (cooling) (SEER)	6.1
Heating capacity in watts (nominal) (Warmer heating season)	- W
Heating capacity in watts (nominal) (Average heating season)	6000 W
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
AC input voltage	230 V
Current (cooling)	9 A
Current (heating)	12.5 A
AC input frequency	50 Hz
Design load (cooling)	5.2 kW
Energy efficiency class (cooling)	A++
Annual energy consumption (cooling)	298 kWh
Hourly energy consumption (cooling)	- kWh
Design load (heating) (Warmer heating season)	- kW
Energy efficiency class (heating) (Average heating season)	A+
Annual energy consumption (heating) (Average heating season)	1819 kWh
Indoor unit depth	655 mm
Indoor unit width	990 mm
Indoor unit height	199 mm
Indoor unit weight	27000 g
Indoor units quantity	1
Indoor unit noise level (high speed)	- dB
