Removing and installing components
during servicing
Devices with sepa rate compartments for memory and hard disk
Removing the hard disk
► Switch off your notebook and disconnect the power plug from the mains socket.
► Close the LCD screen so that it locks into place.
► Disconnect all cables connected to the notebook.
► Turn your notebook ove r and place it on a flat surface.
► Remove the battery (see Chapter "
Removing and installing the battery", Page 30).
Harddisk
1
2

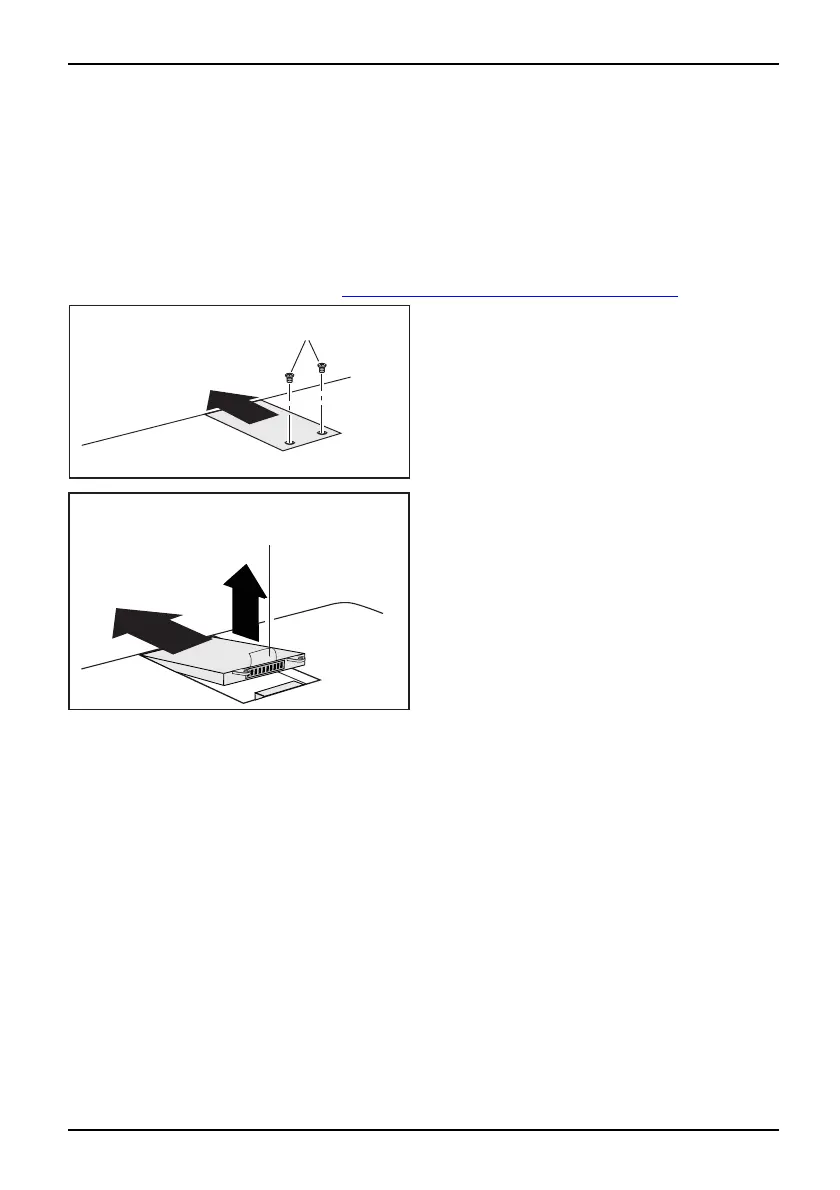

► Remove the screws (1).
► Slide off the cove r in the direction
of the arrow (2).
1
2
a
► Slide the hard disk in the dir
ection
of the arrow (1).
► Remove the hard disk with the pulling aid
(a) fro m the hard disk compartment (2).
► Remove the 4 screws fr
om the frame of the hard disk.
► Pull the hard disk out of the frame.
A26391-K90-Z200-1-7619, edition 1 69
