Fujitsu ASUH12LMAS Design & Technical Manual

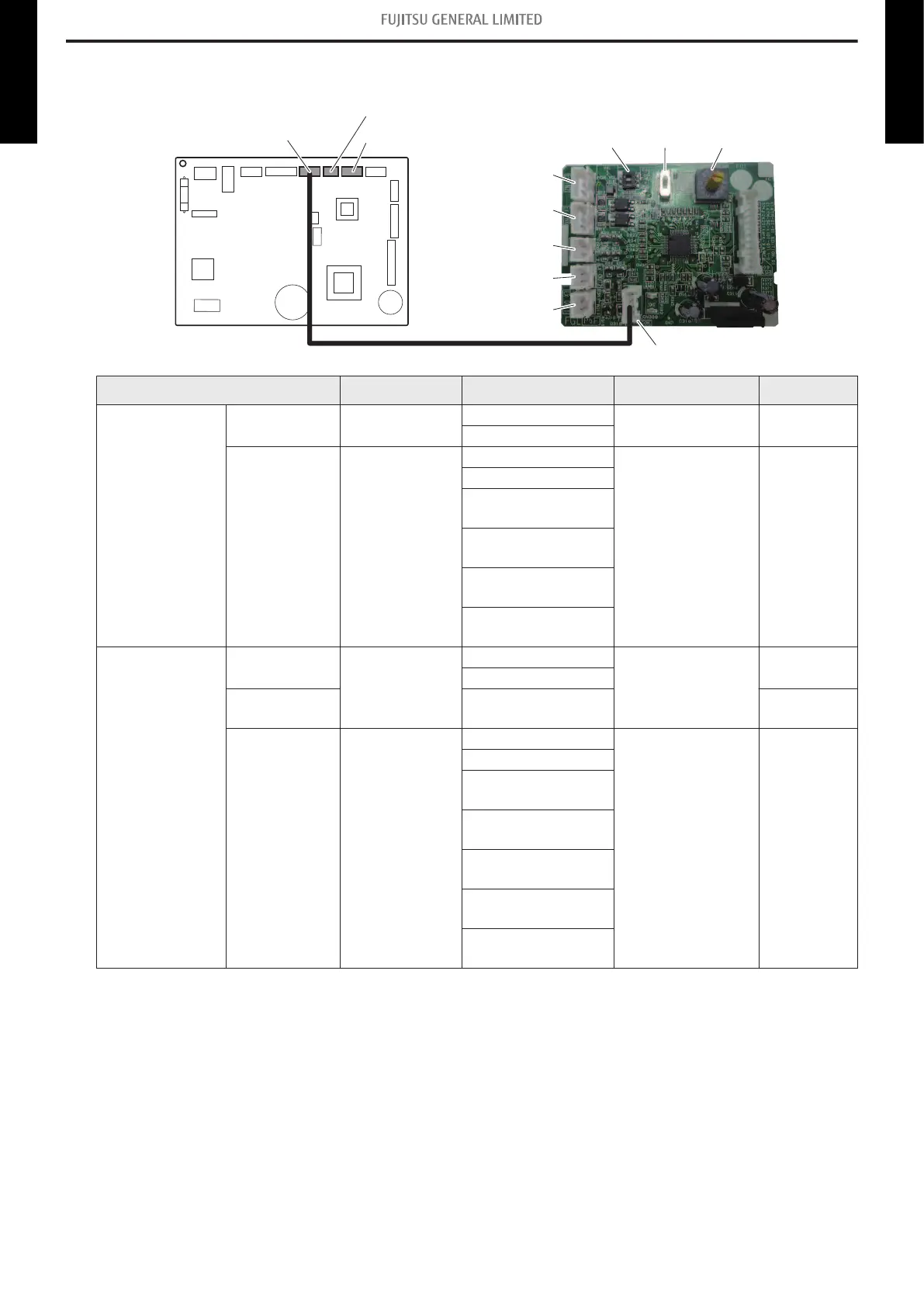

8. External input and output
Rotary switchSW302
CN308
SW301
External input and output PCB
Indoor unit PCB
CN314
CN313
CN312
CN311
CN310
CN65
(Ext. in/out PCB)
CN47 (Ext. out)
CN46 (Ext. in)
Connecting point Input/Output Function Input select Input signal
Indoor unit
CN46 Input
Operation/Stop
Dry contact Edge
Forced stop
CN47 Output
Operation status
— —
Error status
Indoor unit fan
operation status
Cooling thermostat
On
Heating thermostat
On
External heater
output
External Input
and Output PCB
(UTY-XCSXZ2)
CN313/CN314
Input
Operation/Stop
Dry contact/Apply
voltage
Edge/Pulse
Forced stop
CN313
Forced thermostat
off
Edge
CN310
CN311
CN312
Output
Operation status
— —
Error status
Indoor unit fan
operation status
External heater
output
Remote controller
output
Cooling high/low
output
Heating thermostat
On
NOTE: For details of the switching function, refer to "Setting of external input and output" on page
21.
- 15 -
8. External input and output
WALL MOUNTED ASUG09-12LMAS WALL MOUNTED ASUG09-12LMAS
