Fujitsu ASUH12LMAS Design & Technical Manual

1-4. Capacity
¢ Models: UTZ-WUZA-C and UTZ-WUZB-C
40
50
60
70
80
90
100
110
40 50 60 70 80 90 100 110
Free area
Capacity
(%)
(%)
Free area 65%
Free area 86%
(Standard grille)
Sleeveless
installtion

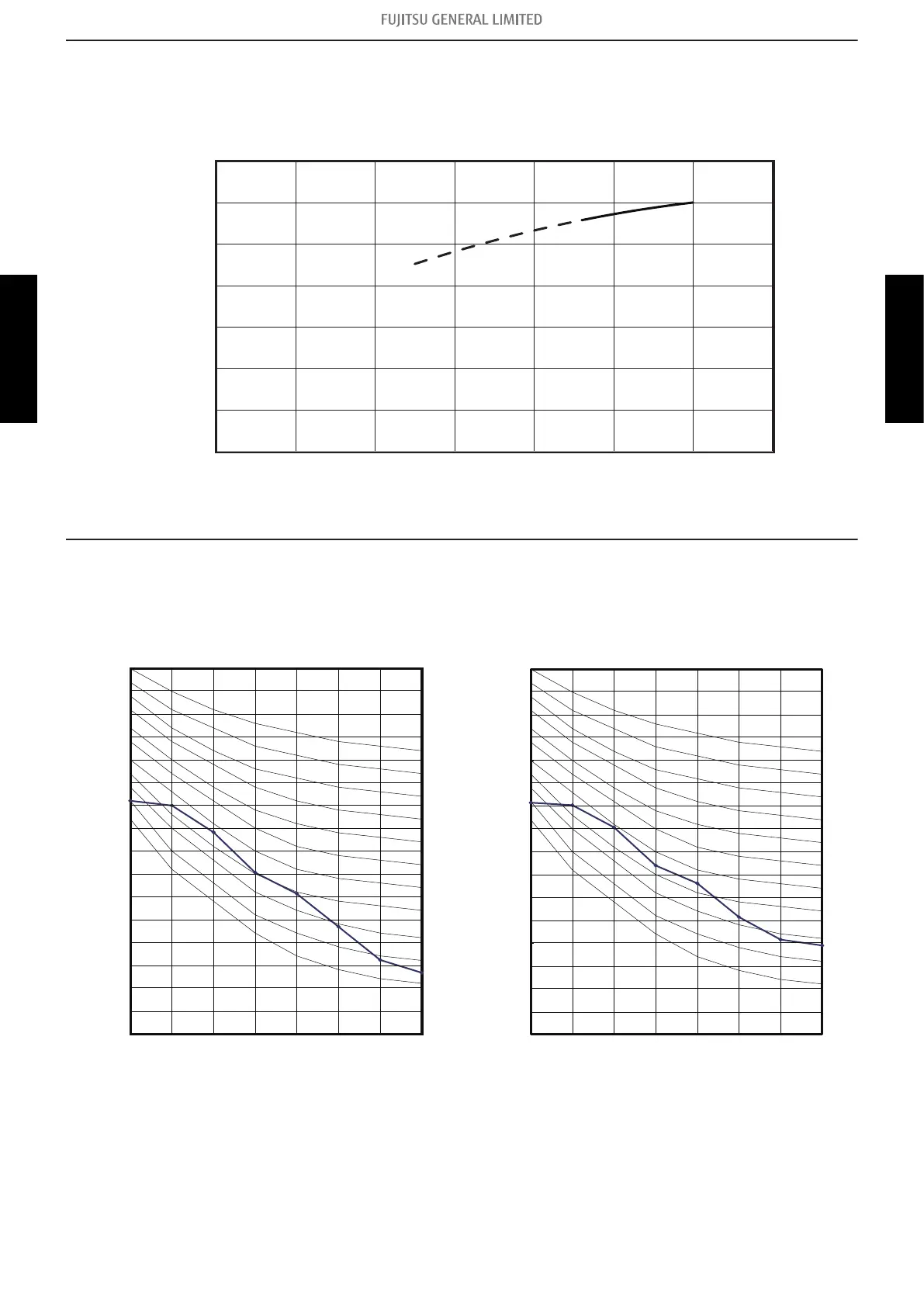

1-5. Noise level curve
¢ Model: AOUH09LEAS1 with Wall sleeve
 Cooling
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
 Heating
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
80
70
60
50
40
30
20
10
0
Octave band center frequency, Hz
63 125 250 500 1,000 2,000 4,000 8,000
- 85 -
1-4. Capacity
1. Wall sleeve
OPTIONAL PARTS OPTIONAL PARTS

Fujitsu ASUH12LMAS Specifications

General

Brand	Fujitsu
Model	ASUH12LMAS
Category	Air Conditioner
Language	English
